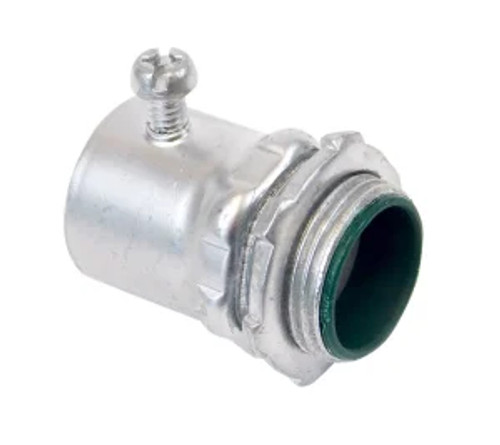

1" EMT Set Screw Connector
Features
- Hex head screws 2 1/2" thru 4"
- Pre-set and staked tri-head screws 1/2"-2"
- Concrete tight when taped
- Heavy steel walls
Manufacturer Resources
Product Specs
- Department:
- Electrical
Allied Tube & Conduit SC100RKON – Frequently Asked Questions
1) Will the Allied Tube & Conduit SC100RKON connector work with 1 inch EMT?
Yes. The SC100RKON is a 1 inch EMT set screw connector, so it is sized for 1 inch electrical metallic tubing only. Larger or smaller EMT needs the matching trade size connector, since the set screw body is not adjustable across sizes.
2) Can I use a 1 inch EMT set screw connector in a concrete pour?
The SC100RKON is concrete tight when taped. Wrap the joint with tape before the pour and it qualifies as concrete tight; untaped it does not. Note that set screw fittings are not raintight, so wet or outdoor locations call for a compression connector instead.
3) Does the 1 inch SC100RKON EMT connector come with the set screw already installed?
It does. Allied Tube & Conduit pre-sets and stakes the tri-head screws on the 1/2 inch through 2 inch set screw connectors, and at 1 inch the SC100RKON falls in that range. Nothing loose to sort on the jobsite, and the staked screw will not back out of the body in the box.
4) What kind of screw head is on the 1 inch Allied set screw EMT connector, and what driver do I need?
At 1 inch it is a tri-head screw, not a hex head. Allied uses hex head screws only on the larger 2-1/2 inch through 4 inch connectors. Plan your driver accordingly if you are running a mix of trade sizes on the same job.
5) Set screw or compression connector for 1 inch EMT, which should I order?
Set screw, like the SC100RKON, is the standard choice for dry indoor runs and for concrete when taped. It goes on faster and costs less per fitting. Compression is what you want where the raceway sees water or damp conditions. Both land in a standard knockout, so the decision is about the environment, not the box.
6) Is this 1 inch EMT connector die cast or steel?
Heavy steel walls, per Allied's spec for the set screw connector line. Steel bodies hold up better to being struck or stepped on during rough-in than die cast zinc, which is why they are common on commercial work.
7) What is the Allied Tube & Conduit part number for the 1 inch EMT set screw connector?
Order it as SC100RKON from Atkore Allied Tube & Conduit. That is the 1 inch trade size in the set screw connector line, with the tri-head screw pre-set and staked.
