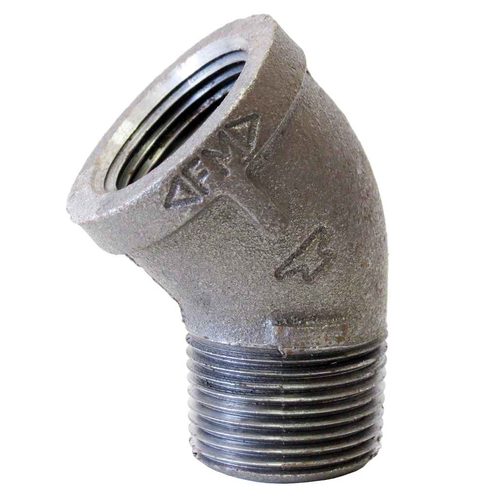

1 GALV MI 45 STR ELL
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- MPT
- Finish Specification:
- ASTM A-153
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 1
- Size 2:
- 1
- Strength:
- STD
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Elbows
- Product Type:
- 45° Elbow
- Product Finish:
- Galvanized
- Product Material:
- Malleable Iron
- Product Weight:
- 0.53 lbs
ASC Engineered Solutions 311027601 – Frequently Asked Questions
1) Will this 1 inch malleable iron street elbow thread onto standard 1 inch NPT pipe?
Yes. Threads are cut to ASME B1.20.1, the standard NPT taper thread spec, so it mates with any 1 inch NPT pipe, nipple, or fitting. Use pipe dope or PTFE tape on the male end.
2) Is this galvanized 45 degree elbow approved for fire sprinkler piping?
It carries UL/FM approval, so it can be used in fire protection piping where UL Listed and FM Approved malleable iron fittings are specified. The galvanized finish is the usual call for dry and pre-action sprinkler systems.
3) What class or pressure rating is this 1 inch malleable iron 45 elbow?
It's a standard weight (STD) malleable iron fitting rated and dimensioned to ASME B16.3, which is the governing spec for both its pressure class and its lay length. If your drawing calls for an extra heavy Class 300 fitting, this standard pattern is not the one to order.
4) Can I use a galvanized malleable iron 45 street ell on a gas line?
The body is malleable iron to ASTM A-197 with NPT threads to ASME B1.20.1, which is the fitting construction commonly accepted for threaded gas and air piping. Gas work is code driven, so confirm your local jurisdiction accepts galvanized rather than black malleable iron for the application before installing.
5) How much does the 1 inch galvanized malleable iron 45 street elbow weigh for takeoff purposes?
0.53 lbs each. Useful if you're figuring hanger loads or freight on a bulk order of fittings.
How fast can I get the ASC Engineered Solutions 311027601 delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the
continental
U.S.
Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit,
reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the ASC Engineered Solutions 311027601 come with a warranty?
Absolutely. The ASC Engineered Solutions 311027601 is backed by a manufacturer’s warranty.
For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the ASC Engineered Solutions 311027601?
You can call, text, or email our expert support team for fast answers. We’re here to help with
product
selection,
installation tips, and troubleshooting. Contact Us
