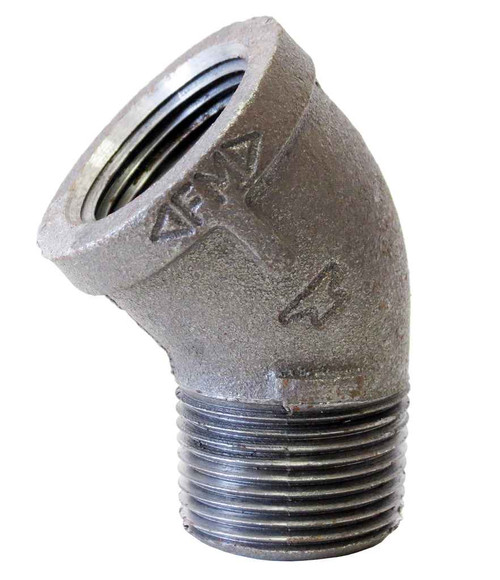

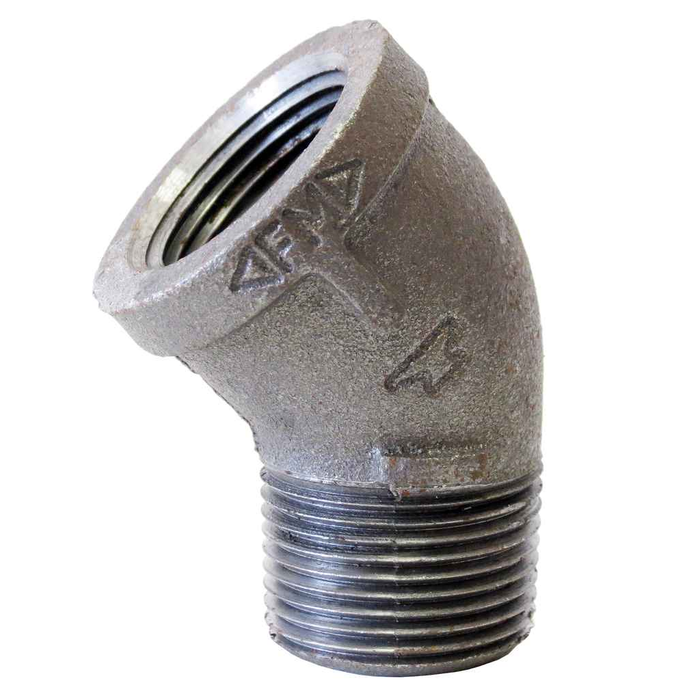

1/2 GALV MI 45 STR ELL
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- MPT
- Finish Specification:
- ASTM A-153
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 0.5
- Size 2:
- 0.5
- Strength:
- STD
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Elbows
- Product Type:
- 45° Elbow
- Product Finish:
- Galvanized
- Product Material:
- Malleable Iron
- Product Weight:
- 0.21 lbs
ASC Engineered Solutions 311027205 – Frequently Asked Questions
1) Is the ASC 1/2 inch galvanized 45 degree street elbow female on one end and male on the other?
Yes. One end is FPT (female pipe thread) and the other is MPT (male pipe thread), which is what makes it a street elbow. That lets you thread it straight into a female port or fitting on the male side and take a pipe or nipple on the female side, saving you a nipple in tight runs. Both ends are 1/2 inch.
2) Is this galvanized 45 degree elbow approved for fire sprinkler piping?
It carries UL/FM recognition, so it is acceptable for use in fire protection piping systems. It is standard weight malleable iron, galvanized, built to ASME B16.3 for both dimensions and pressure rating, which is the usual spec called out on sprinkler branch lines.
3) Can I use a galvanized malleable iron street elbow on a wet sprinkler or water line outdoors?
The galvanized coating is applied to ASTM A-153, hot-dip galvanizing for iron and steel hardware, which is the coating spec used for corrosion protection in wet and exposed service. The body is malleable iron to ASTM A-197. For dry compressed air, water, or fire protection lines it is the right fitting; it is not a stainless or brass fitting, so judge aggressive chemical service accordingly.
4) How much does the ASC 1/2 inch galvanized malleable iron 45 street elbow weigh?
0.21 lbs each. Useful when you are figuring hanger spacing and total load on a run made up of a lot of threaded fittings, or estimating freight on a box of them.
