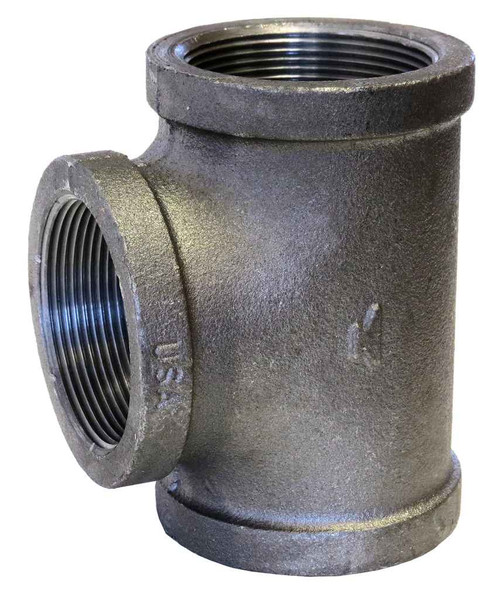

1 GALV MI TEE
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- FPT
- End Conn Size 3:
- FPT
- Finish Specification:
- ASTM A-153
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 1
- Size 2:
- 1
- Size 3:
- 1
- Strength:
- STD
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Finish:
- Galvanized
- Product Material:
- Malleable Iron
- Product Weight:
- 0.92 lbs
ASC Engineered Solutions 311030209 – Frequently Asked Questions
1) Are all three openings on the ASC 1 inch galvanized malleable iron tee the same size?
Yes, it's a straight 1 inch tee. All three outlets are 1 inch and all three are female pipe thread (FPT), so 1 inch threaded pipe or nipples screw into the run and the branch alike. There's no reducing outlet on this one.
2) What's the difference between a galvanized malleable iron tee and a black iron one?
The metal and the dimensions are the same class of fitting; the coating is what changes. This one is hot dip galvanized to ASTM A-153, which puts a zinc layer on it for corrosion resistance in wet or outdoor service, dry sprinkler systems, and galvanized water lines. Black malleable iron has no coating and is normally kept to gas, dry air, or other dry interior runs. Match the fitting to the pipe you're running, galvanized fittings on galvanized pipe.
3) Will a B16.3 malleable iron tee drop into the same takeout as the fitting I'm replacing?
It should, as long as what you're pulling out is also a standard pattern 1 inch threaded malleable iron tee. Center-to-end dimensions are fixed by ASME B16.3, so any manufacturer's STD pattern 1 inch tee has the same takeout, and the thread engagement is the same B1.20.1 NPT. An extra heavy pattern fitting is dimensionally different, so check which one is in the line before you cut.
4) What is the part number for the ASC 1 inch galvanized malleable iron tee?
Order it as ASC Engineered Solutions part 311030209, a 1 x 1 x 1 inch galvanized malleable iron threaded tee, standard pattern.
