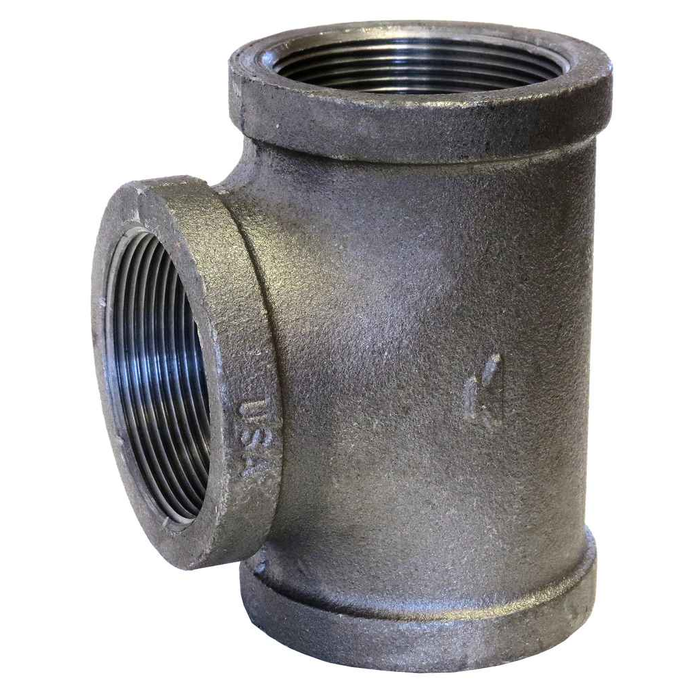

1/8 GALV MI TEE
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- FPT
- End Conn Size 3:
- FPT
- Finish Specification:
- ASTM A-153
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 0.125
- Size 2:
- 0.125
- Size 3:
- 0.125
- Strength:
- STD
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Finish:
- Galvanized
- Product Material:
- Malleable Iron
- Product Weight:
- 0.1 lbs
ASC Engineered Solutions 311029201 – Frequently Asked Questions
1) Are all three openings on the 1/8 inch galvanized malleable iron tee the same size?
Yes, it's a straight tee: all three ports are 1/8 inch female pipe thread, so there's no reducing branch. Use it where a 1/8 inch run needs a takeoff of the same size, typically gauge, sensor, or small instrument lines.
2) Is this galvanized tee suitable for a fire sprinkler system?
It carries a UL/FM listing, so it is acceptable where listed fittings are required, including fire protection work. It's a standard (STD) pressure class galvanized malleable iron fitting dimensioned to ASME B16.3, which is the class inspectors look for on threaded iron sprinkler piping.
3) Will a galvanized malleable iron tee hold up on a wet line or outdoors?
The zinc coating is applied to ASTM A-153, the hot-dip galvanizing spec, over an ASTM A-197 malleable iron body. That's the standard choice for wet sprinkler piping, exposed runs, and damp mechanical rooms where black iron would rust. For potable water, check your local code, as galvanized iron is restricted in some jurisdictions.
4) Can I mix this galvanized tee with black iron fittings on the same run?
Mechanically yes, since both are threaded to the same ASME B1.20.1 NPT thread and ASME B16.3 dimensions, so they interchange on the same nipples. The reason to keep a run all galvanized is corrosion: mixing coated and uncoated iron in a wet system gives you a rust point at the black fitting.
5) How much does a 1/8 inch malleable iron tee weigh for a bulk order?
About 0.1 lbs each. At that weight a box of a hundred is roughly ten pounds, so stocking a shelf quantity for MRO or service trucks is no logistics problem.
