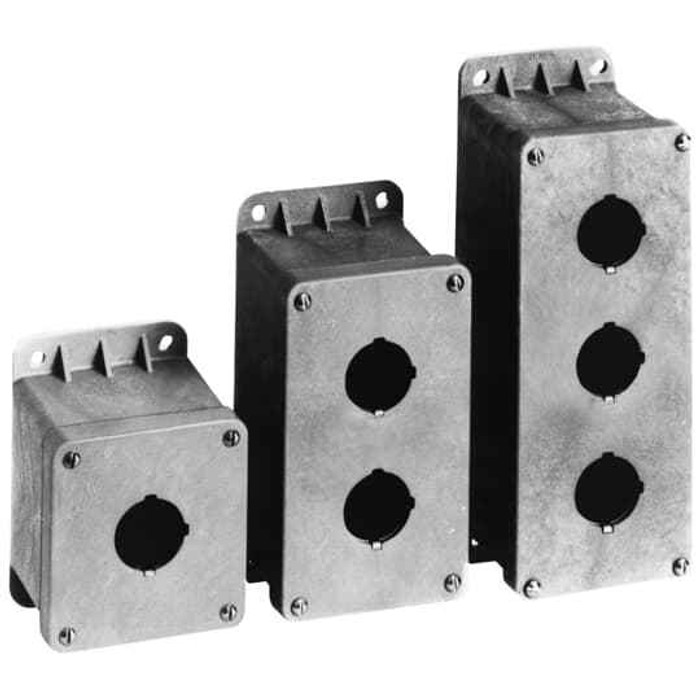

Carlon 1 Hole Thermoplastic Circuit Safe Pushbutton Enclosure with Mounting Flange

Carlon 1 Hole Thermoplastic Circuit Safe Pushbutton Enclosure

Professional-Grade Oil-Tight Control Station Protection

The Carlon 1 Hole Circuit Safe Pushbutton Enclosure delivers professional-grade protection for standard oil-tight pushbuttons, switches and pilot lights. This thermoplastic general purpose enclosure features an integrally molded mounting flange designed for electrical contractors and installers, providing the reliable performance and UL Listed safety that electrical professionals demand for control station applications.

Professional Features & Benefits

Superior Construction Quality

• Thermoplastic Housing - Provides excellent corrosion resistance and durability for long-term electrical protection
• Integrally Molded Mounting Flange - Ensures secure installation and professional appearance without additional hardware
• Single Hole Configuration - Precisely engineered for standard pushbutton, switch and pilot light installations
• Oil-Tight Design - Protects internal components from moisture, dust and contaminants in industrial environments

Safety & Code Compliance

• UL Listed E108856 - Meets rigorous safety standards for electrical enclosure applications
• Circuit Safe Protection - Designed to safely house electrical control components and prevent accidental contact
• Professional Grade Materials - Thermoplastic construction provides reliable insulation and impact resistance

Technical Specifications

Single hole thermoplastic pushbutton enclosure with integrally molded mounting flange. UL Listed E108856 for general purpose electrical applications. Designed for standard oil-tight pushbuttons, switches and pilot lights with circuit safe protection features.

Installation Process

1. Select appropriate mounting location ensuring adequate clearance for pushbutton operation and maintenance access
2. Mark mounting holes using the integral flange as a template for precise positioning
3. Secure enclosure to mounting surface using appropriate fasteners for substrate material
4. Install pushbutton, switch or pilot light component through the precision-molded hole
5. Make electrical connections following NEC guidelines and manufacturer specifications
6. Test operation to ensure proper function and verify oil-tight seal integrity

Professional Applications

Ideal for:

• Industrial Control Stations - Motor start/stop controls, emergency stops and process control applications
• Commercial Building Systems - HVAC controls, lighting controls and equipment operation switches
• Manufacturing Equipment - Machine control panels, conveyor systems and automated equipment interfaces
• Outdoor Applications - Weather-resistant control stations for pumps, fans and exterior equipment
• Food Processing Facilities - Washdown environments requiring oil-tight protection for control components
• Chemical Plants - Corrosive environment protection for critical control switches and indicators
• Water Treatment Systems - Pump controls, valve operators and process monitoring equipment
• Agricultural Applications - Irrigation controls, grain handling systems and livestock facility equipment

Thermoplastic Construction Advantage

Carlon thermoplastic enclosures offer superior corrosion resistance compared to metal alternatives, making them ideal for harsh industrial environments. The lightweight yet durable construction provides excellent impact resistance while maintaining electrical insulation properties. The non-conductive material eliminates concerns about grounding requirements while providing long-term reliability in moisture-prone applications.

Why Choose Carlon Quality?

Carlon demonstrates unwavering commitment to UL Listed safety standards and reliable performance for electrical professionals. Every circuit safe pushbutton enclosure undergoes rigorous testing to ensure code compliance and long-term durability. The integrally molded mounting flange design reflects Carlon innovation in providing practical installation solutions that save time while delivering professional results that electrical contractors trust.
