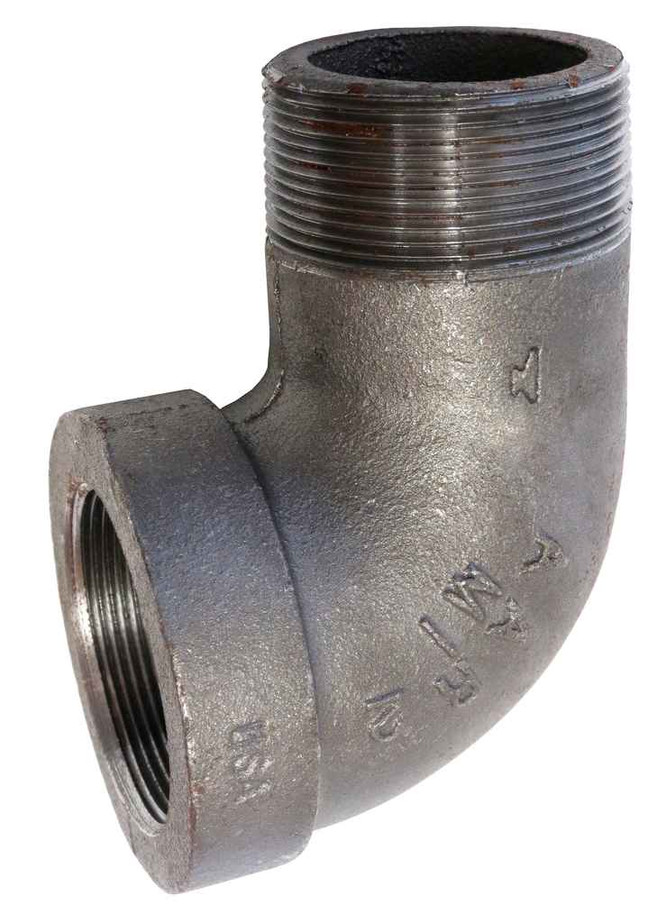

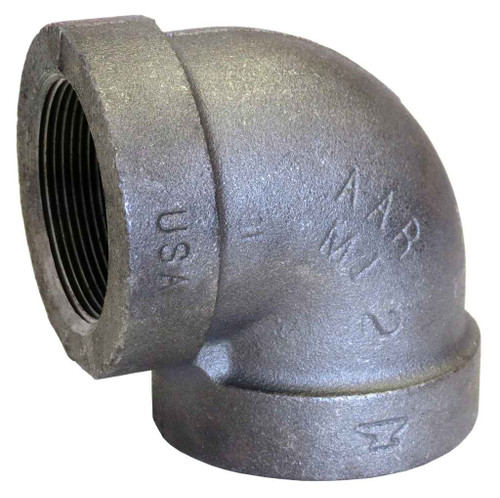

1 XH BLK MI 90 STR ELL
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- MPT
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 1
- Size 2:
- 1
- Strength:
- XH
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Elbows
- Product Type:
- 90° Elbow
- Product Finish:
- Black
- Product Material:
- Malleable Iron
- Product Weight:
- 1.04 lbs
ASC Engineered Solutions 310508205 – Frequently Asked Questions
1) Will this street elbow thread onto standard 1 inch black pipe?
It will. Threads are cut to ASME B1.20.1, the NPT standard used on ordinary black and galvanized steel pipe, so it mates with any 1 inch NPT pipe or fitting. Use pipe dope or PTFE tape on the taper as usual.
2) Is this ASC 90 degree elbow UL listed and FM approved for fire sprinkler piping?
Yes, the fitting carries UL/FM recognition, so it can be used on fire protection piping where the AHJ requires listed and approved components. It's black malleable iron, extra heavy, with 1 inch NPT threads.
3) Can I use a black malleable iron street elbow on a domestic water line?
No. Black malleable iron is unlined and will rust in potable water service. Black fittings belong on gas, air, steam, hydronic heating and fire protection piping. For potable water, use galvanized, copper, brass or CPVC instead.
4) What does XH mean on a malleable iron fitting, and when do I need it instead of a standard fitting?
XH is extra heavy, a class 300 malleable iron fitting with a heavier wall and higher pressure rating than the common class 150 standard weight. Spec it where the drawing calls for class 300, on higher pressure steam, air or gas service, or where a rated system won't accept standard weight. For ordinary low pressure black iron work, standard weight is the usual choice.
5) What standards does this 1 inch extra heavy elbow meet for a submittal?
Three to put on the submittal: dimensions and pressure rating to ASME B16.3 (threaded malleable iron fittings), material to ASTM A-197 (cupola malleable iron), and threads to ASME B1.20.1. Manufacturer part number is 310508205.
6) Will a standard weight 1 inch elbow interchange with this extra heavy one?
Dimensionally they share the same 1 inch NPT threads under ASME B1.20.1, so they thread together, but an extra heavy class 300 fitting has a heavier wall and different face-to-end dimensions than class 150. If the system is rated for class 300, substituting standard weight drops the rating of that joint. Match the class the spec calls for.
7) How heavy is the 1 inch XH street elbow for estimating a bulk order?
Each fitting runs 1.04 lbs. Multiply out for pallet or box weight when you're pricing freight on a large rough-in.
