Minerallac #10-16 x 1" Self-Dr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.23
$22.86

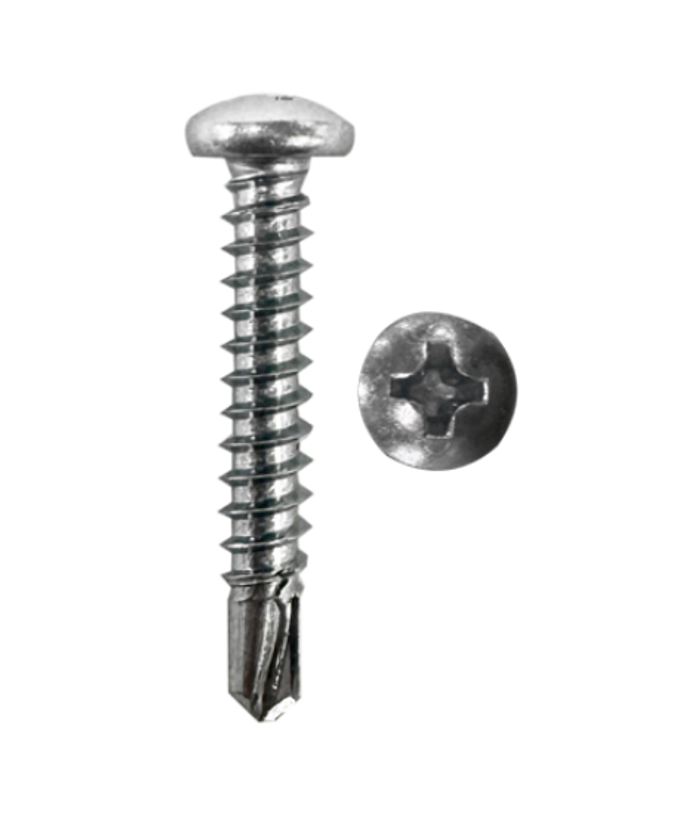

Minerallac #10-16 x 1" Self-Drilling TEK Screws with Phillips Pan Head and Zinc Plating, 100 Pack

Minerallac #10-16 x 1" Self-Drilling TEK Screws with Phillips Pan Head and Zinc Plating, 100 Pack

(No reviews yet) Write a Review

Model: 83016J

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.23
$22.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Minerallac #10-16 x 1" Self-Drilling TEK Screws with Phillips Pan Head and Zinc Plating

Professional Self-Drilling Fasteners for Metal Applications

Minerallac delivers reliable fastening solutions with these #10-16 x 1" self-drilling TEK screws featuring Type-BSD self-drilling thread design and zinc-plated steel construction. The Phillips pan head design provides secure grip and professional appearance, while the zinc plating offers corrosion resistance for demanding applications.

Professional Features & Benefits

  • #10-16 Thread Size: Provides optimal holding power and compatibility with standard metal thicknesses and applications.
  • 1" Length: Ideal for securing materials with appropriate penetration depth for reliable fastening performance.
  • Type-BSD Self-Drilling Thread: Eliminates pre-drilling requirements, reducing installation time and improving productivity.
  • Phillips Pan Head Design: Offers secure driver engagement and professional finished appearance with 0.365" head width.
  • Zinc-Plated Steel Construction: Delivers durability and corrosion resistance while maintaining cost-effective performance.
  • Silver Head Color: Provides clean, professional appearance suitable for visible installations and applications.

Technical Specifications

  • Country Of Origin: Taiwan
  • Head Color: Silver
  • Head Height: 0.128
  • Head Type: Phillips Drive � Pan Head
  • Head Width: 0.365
  • Product Finish: Zinc Plated
  • Product Length: 1 in
  • Product Material: Steel
  • Product Size: #10
  • Product Type: Tek Screws
  • Thread Size: 16
  • Thread Type: Type-BSD Self-Drilling

Professional Applications

  • HVAC Equipment Installation and Maintenance
  • Electrical Panel and Enclosure Assembly
  • Metal Building Construction and Retrofit
  • Commercial Equipment Mounting
  • Industrial Machinery Assembly
  • Professional Electrical Installations

Why Choose Minerallac Quality?

Minerallac fasteners deliver consistent performance with precision-manufactured steel construction and reliable zinc plating for long-term durability. The self-drilling design and professional finish ensure efficient installation and dependable service in demanding applications.

Manufacturer Resources

Product Specs

Head Color:
Silver
Head Height:
0.128
Head Type:
Phillips Drive – Pan Head
Head Width:
0.365
Product Finish:
Zinc Plated
Product Length:
1 in
Product Material:
Steel
Wire Size:
#10
Product Type:
Tek Screw
Thread Size:
16
Thread Type:
Type-BSD Self-Drilling
Department:
Electrical
Product Subgroup:
Self-Tapping Screws
Product Group:
Hangers, Supports & Fasteners

Minerallac 83016J – Frequently Asked Questions

1) Do I need to pre-drill a pilot hole for Minerallac #10-16 x 1 inch TEK screws?
No pilot hole needed. These are Type-BSD self-drilling screws, so the point cuts its own hole through sheet metal as you drive it. That is the whole reason they get used on HVAC duct, panel enclosures and metal framing work: one pass with a driver and you are done.
2) Will a pan head TEK screw sit flush, or does it stand proud of the metal?
It stands proud. A pan head is a low-profile round head that seats on top of the material, not countersunk into it. On these #10-16 screws the head is 0.365 inch across and 0.128 inch high, so plan for about an eighth of an inch of head above the surface. If you need something flush for a sliding or mating surface, you want a flat or trim-head screw instead.
3) Is a #10-16 TEK screw the same as a #10-24 or #10-32 machine screw?
No, and they are not interchangeable. #10-16 is a self-drilling sheet metal thread that forms its own threads in the steel as it drives. #10-24 and #10-32 are machine screw threads meant for a pre-tapped hole or a nut. If your enclosure or panel has a factory-tapped #10-32 hole, a 10-16 tek will not match that thread.
4) Are zinc-plated TEK screws okay for outdoor or exterior metal building work?
The zinc plating on these steel screws gives corrosion resistance for general use, and they are commonly run on metal building construction and retrofit. Zinc plating is a mild protective coating though, not stainless or a long-term coastal/marine finish. For exposed roofing or wet, salty environments, step up to a stainless or coated exterior fastener.
5) How thick a steel can a 1 inch #10-16 self-drilling screw go through?
The 1 inch overall length is the governing number: the drill point and thread have to clear the material and still leave thread engaged, so these suit sheet metal and light gauge work such as duct, enclosures, strut accessories and metal studs. The 16 threads per inch count is the coarser self-drilling pitch used for thin steel rather than structural plate. For heavy steel or thick stacked members, use a longer screw with a heavier drill point.
6) Can I use these TEK screws to mount electrical panels and enclosures?
Yes, electrical panel and enclosure assembly is one of the stated uses, along with HVAC equipment installation, commercial equipment mounting and industrial machinery assembly. The pan head gives a broad bearing surface against the flange or bracket without pulling through thin sheet, and the silver zinc finish looks clean where the fastener stays visible.
7) How many screws come in a pack of Minerallac 83016J?
The 83016J is packed 100 screws to the box. For a crew ordering by the job, that is one box per run rather than bulk carton quantities, so size your order against the number of fastening points.
