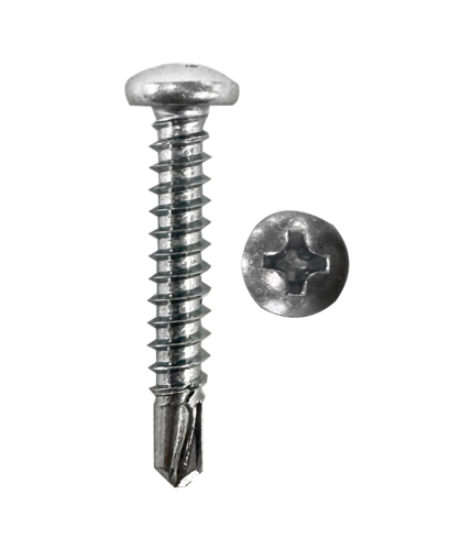

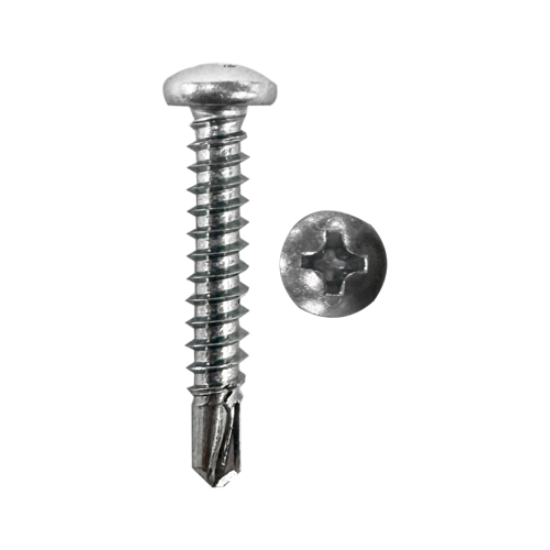

Minerallac Self-Drilling Tek Screws #10-16 x 3/4" Pan Head Phillips Drive Zinc Plated Steel, 100 Pack

Minerallac Self-Drilling Tek Screws #10-16 x 3/4" Pan Head Phillips Drive Zinc Plated Steel, 100 Pack

(No reviews yet) Write a Review

Model: 83012J

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.21
$21.43
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Minerallac Self-Drilling Tek Screws #10-16 x 3/4" Pan Head Phillips Drive Zinc Plated Steel

Professional Self-Drilling Fasteners for Metal Applications

Minerallac delivers reliable fastening solutions with these #10-16 x 3/4" self-drilling tek screws featuring Type-BSD self-drilling thread design. Constructed from durable steel with zinc plated finish for corrosion resistance, these pan head screws with Phillips drive provide secure attachment in metal substrates without pre-drilling requirements.

Professional Features & Benefits

  • Type-BSD Self-Drilling Thread: Eliminates need for pre-drilling, reducing installation time and labor costs in metal applications.
  • Zinc Plated Steel Construction: Provides enhanced corrosion resistance and durability for long-lasting performance in various environments.
  • Pan Head Phillips Drive Design: Offers reliable torque transfer and professional appearance with standard Phillips screwdriver compatibility.
  • #10-16 Thread Size: Delivers optimal holding power and thread engagement for secure fastening in sheet metal and structural applications.
  • 3/4" Length Specification: Provides appropriate penetration depth for standard thickness materials while maintaining structural integrity.
  • 0.365" Head Width: Ensures adequate bearing surface for load distribution and professional installation appearance.

Technical Specifications

  • Country Of Origin: Taiwan
  • Head Color: Silver
  • Head Height: 0.128
  • Head Type: Phillips Drive � Pan Head
  • Head Width: 0.365
  • Product Finish: Zinc Plated
  • Product Length: 3/4 in
  • Product Material: Steel
  • Product Size: #10
  • Product Type: Tek Screws
  • Thread Size: 16
  • Thread Type: Type-BSD Self-Drilling

Professional Applications

  • HVAC Equipment Installation and Mounting
  • Electrical Enclosure Assembly
  • Metal Building Construction
  • Industrial Equipment Fabrication
  • Commercial Structural Applications
  • Maintenance and Repair Operations

Why Choose Minerallac Quality?

Minerallac fastening solutions deliver consistent performance with precision-manufactured steel construction and protective zinc plating. The Type-BSD self-drilling design ensures reliable installation efficiency while maintaining professional standards for demanding applications.

Manufacturer Resources

Product Specs

Head Color:
Silver
Head Height:
0.128
Head Type:
Phillips Drive – Pan Head
Head Width:
0.365
Product Finish:
Zinc Plated
Product Length:
3/4 in
Product Material:
Steel
Wire Size:
#10
Product Type:
Tek Screw
Thread Size:
16
Thread Type:
Type-BSD Self-Drilling
Department:
Electrical
Product Subgroup:
Self-Tapping Screws
Product Group:
Hangers, Supports & Fasteners

Minerallac 83012J – Frequently Asked Questions

1) Do Minerallac #10-16 x 3/4 inch tek screws need a pilot hole in sheet metal?
No pilot hole. These are Type-BSD self-drilling screws, so the point drills its own hole and taps the thread in one pass. That is what separates them from a plain self-tapping screw, which still wants a pre-drilled hole. At 3/4 inch overall length the usable penetration is limited, so they are intended for sheet and light gauge metal rather than thick structural plate.
2) Will a pan head tek screw sit flush, or does the head stand proud?
It stands proud. A pan head has a flat underside that bears on the surface, so the head sits on top of the material, 0.128 inch high with a 0.365 inch head diameter. That bearing surface is what you want for clamping strap, clip, or enclosure flange. If you need the fastener flush with the surface, you need a flat or trim head screw instead, not this one.
3) What driver bit do I need for Minerallac 83012J tek screws?
A standard Phillips bit. Model 83012J is a pan head with a Phillips drive, so no square, hex washer head, or Torx driver is needed. If your crew is running hex-driver tek screws off an impact, these will need a Phillips bit in the same gun.
4) Are zinc plated tek screws OK outdoors or in a damp mechanical room?
These are steel with a zinc plated finish, which handles indoor humidity, mechanical rooms, and dry interior metal framing. Zinc plating is a sacrificial coating, not stainless, so for direct weather exposure, roof work, coastal sites, or anywhere chemically aggressive, specify a stainless or coated exterior fastener instead.
5) What does #10-16 actually mean on a tek screw?
The #10 is the shank diameter and the 16 is threads per inch, so this is a #10 screw with 16 TPI, 3/4 inch long. That coarse 16 TPI count is typical of a sheet metal self-driller, where the thread has to form itself in thin stock. When you reorder, give the supplier the full #10-16 x 3/4 callout, since a #10-24 or a #8 will not drive or hold the same.
6) Can I use these tek screws to mount electrical enclosures and HVAC equipment to metal?
Yes, that is the use case. The #10-16 x 3/4 inch self-driller is used for electrical enclosure assembly, HVAC equipment mounting, metal building work, and general MRO fastening into metal substrates. The limit is thickness: with 3/4 inch overall length, the thread engagement left after the head and the material you are fastening through is short, so stacked or heavy assemblies call for a longer screw.
