Metallics JSRM33 10-32 x 1-1/2...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$192.86

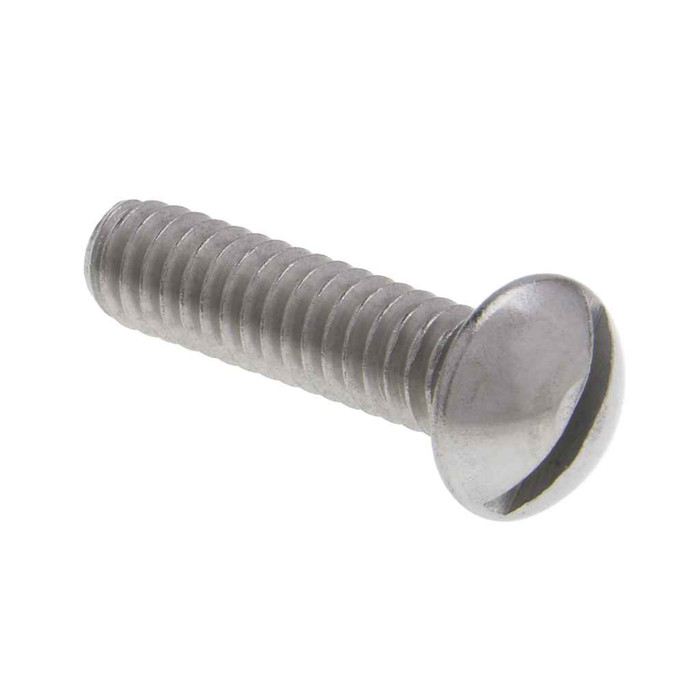

Metallics JSRM33 10-32 x 1-1/2 in. Round Head Slotted Machine Screws - 18-8 Stainless - 100qty

Metallics JSRM33 10-32 x 1-1/2 in. Round Head Slotted Machine Screws - 18-8 Stainless - Each

(No reviews yet) Write a Review

Model: JSRM33
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$192.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10-32 x 1-1/2 in. Round Head Slotted Machine Screws - 18-8 Stainless - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | Tensile strength values for stainless screws are offered as approximations only; there is no single standard for the performance requirements of stainless machine screws.

  • Features

    • Round head with slotted Drive
    • 18-8 stainless Material
    • 10-32 Diameter, 1-1/2" Length

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Division:
Electrical H1
Drive Type:
Slotted
Fastener Head Height:
0.123 - 0.137 in.
Fastener Head Type:
Round
Fastener Head Width:
0.334 - 0.359 in.
Fastener Length:
1/1/02
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Hardness:
Rockwell B85-B95
Language Code:
EN
Material Standard:
SAE
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Round_Head_Machine_Screw.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
2.7 in
Product Length:
3 in
Product Weight:
1.18 lbs
Product Width:
3 in
Recess Penetration Gaging Depth:
0.082 - 0.108
Slot Depth:
0.065 - 0.087
Slot Width:
0.05 - 0.06
Sub Division:
Electrical-E H2
Tensile Strength:
80000 psi minimum
Thread Per Inch:
32
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
SRM
Product Details:
Machine Screw
Product Material:
18-8 Stainless

Metallics JSRM33 – Frequently Asked Questions

1) Can I use these screws on a federally funded or Buy American job?
No. The JSRM33 stainless machine screws are not Buy American compliant and are not ARRA compliant, with country of origin listed as multiple. For a job with domestic sourcing requirements you will need a fastener certified as US made.
2) Is the JSRM33 screw stainless steel, and can I use it outdoors or in a damp location?
The material is 18-8 stainless, the common austenitic stainless used for corrosion resistance in wet, humid and exterior work. Hardness runs Rockwell B85-B95 with a minimum tensile of 80,000 psi. Note that tensile figures for stainless machine screws are approximations, since there is no single performance standard for them.
3) How much does the round head on these 10-32 screws stick up and how wide is it?
The round head measures 0.334 to 0.359 in. across with a head height of 0.123 to 0.137 in. That domed profile sits proud of the surface rather than sinking flush, so if you need the fastener flush in a countersunk plate or cover, a flat head is the right choice instead.
4) What driver do I need for the Metallics JSRM33 screws?
Slotted drive only, no Phillips or combo recess. The slot runs 0.05 to 0.06 in. wide and 0.065 to 0.087 in. deep, so a cabinet-tip or keystone flat blade in that width seats properly. Crews working off a cordless driver usually prefer a Phillips or combo head for one-handed starts; this one is a hand-screwdriver fastener.
5) How are the Metallics 10-32 machine screws packaged and what is the minimum order?
They ship in a jar of 100, which is also the order minimum. Shipping weight for the jar is 1.18 lbs.
6) Do these screws come with nuts, or do I need a tapped hole?
A machine screw like the JSRM33 has no point and will not cut its own threads. It needs either a tapped hole, such as the 10-32 holes already in a device yoke or box ear, or a separate 10-32 nut. Nuts are not included with the jar.
7) Are these stainless machine screws only for electrical work?
No. Metallics lists the field application as electrical, plumbing, heating and air conditioning, so the same 10-32 x 1-1/2 in. stainless screw gets used for mounting plates, brackets, panels and fixture hardware across all three trades. Maintenance shops often stock a jar for general tapped-hole work.
