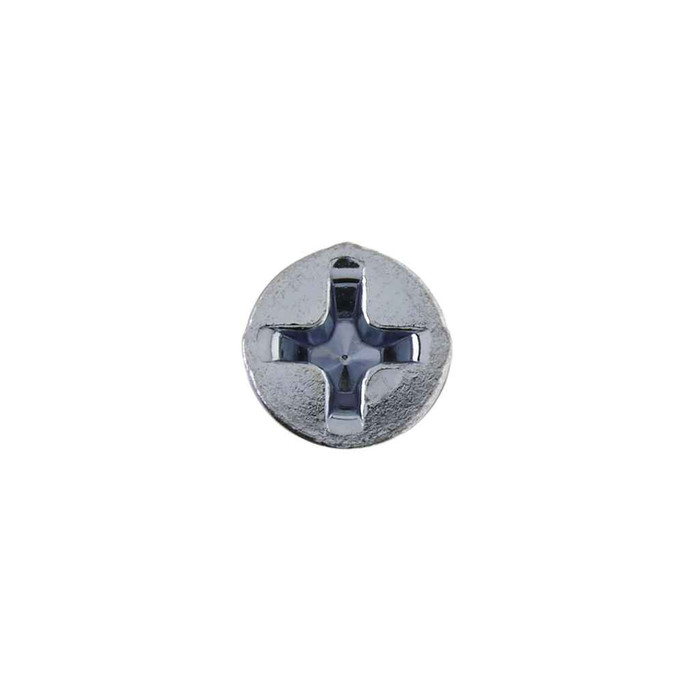

Metallics JFMP50SS 10-32 x 5/8 in. Flat Head Phillips Machine Screws - 18-8 Stainless - 100qty

Metallics JFMP50SS 10-32 x 5/8 in. Flat Head Phillips Machine Screws - 18-8 Stainless - Each

(No reviews yet) Write a Review

Model: JFMP50SS
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.41
$0.41
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10-32 x 5/8 in. Flat Head Phillips Machine Screws - 18-8 Stainless - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | Hardness and tensile strength standards are offered as guides only for stainless machine screws. There is currently no national standard for these performance requirements for stainless machine screws.

  • Features

    • Stainless steel machine screws are used in applications which require general atmospheric corrosion resistance, in food processing machinery and refrigeration equipment.
    • Flat head with Phillips Drive
    • 18-8 Stainless Material
    • Stainless is also superior to steel in withstanding some elevation in application operating temperature while maintaining its strength.
    • 10-32 Diameter, 5/8" Length

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-1998
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Height:
0.098 - 0.116 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.333 - 0.362 in.
Fastener Length:
8-May
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Gaging Diameter:
0.313
Hardness:
Rockwell B85-B95
Language Code:
EN
Material Standard:
SAE
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Flat_Head_Mach_Screw.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Phillips Recess Depth:
0.124
Phillips Recess Diameter:
0.198
Phillips Recess Width:
0.032
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.53 lbs
Product Width:
3 in
Protrusion Gaging Diameter:
0.025 - 0.042 Above
Sub Division:
Electrical-E H2
Tensile Strength:
1200 lb minimum
Thread Per Inch:
32
Thread Standard:
ANSI/ASME B1.1
Thread Type:
UNF
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
FM and FMP
Product Details:
Machine Screw
Product Material:
18-8 Stainless

Metallics JFMP50SS – Frequently Asked Questions

1) Will a 10-32 flat head Phillips machine screw thread into a standard electrical box or device ground hole?
10-32 is the standard thread used in steel electrical boxes, device yokes and ground screw holes, and the Metallics JFMP50SS is a 10-32 UNF screw cut to the ANSI/ASME B1.1 thread standard with 32 threads per inch. At 5/8 in. long it gives enough engagement for box mounting and device fastening without bottoming out in most tapped bosses.
2) Are 18-8 stainless machine screws suitable for wet, washdown or refrigeration areas?
That is what 18-8 stainless is for. The JFMP50SS is 18-8 stainless and is used where general atmospheric corrosion resistance is needed, including food processing machinery and refrigeration equipment. Stainless also holds strength better than plain steel at somewhat elevated operating temperatures.
3) Do these screws meet Buy American or ARRA requirements for a government job?
No. The JFMP50SS is not Buy American compliant and is not ARRA compliant, with multiple countries of origin. On a federally funded project with domestic sourcing language, these will not satisfy it.
4) What size Phillips bit drives these stainless machine screws?
A #2 Phillips. The recess is 0.198 in. in diameter and 0.124 in. deep, which is standard #2 geometry. Stainless galls and cams out more readily than plated steel, so use a sharp #2 bit and moderate speed.
5) How are these Metallics 10-32 screws packaged and what is the minimum order?
They ship in a jar of 100, which is the order minimum. Packed weight is 0.53 lbs. Other sizes and quantities in the FM and FMP machine screw series can be had by request.
6) What trades actually use a 10-32 x 5/8 flat head machine screw like this?
It is a general fastening screw for the electrical, plumbing, and heating and air conditioning trades, machine screw rather than sheet metal screw, so it goes into tapped holes and nuts rather than cutting its own thread. Typical uses are device and box mounting, panel and cover fastening, and equipment assembly where a flush head is wanted.
