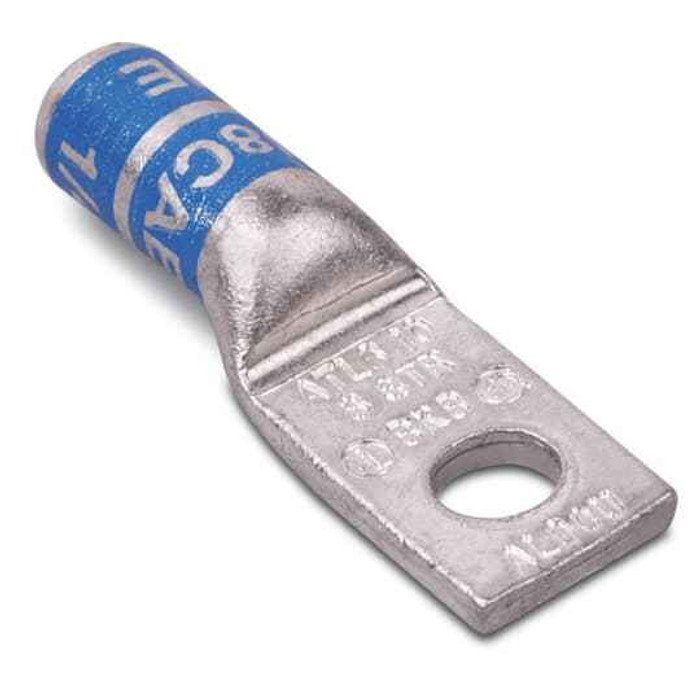

1/0 AL TP COMP LUG 1/2IN TAN
Manufacturer Resources
Product Specs
- Country Of Origin:
- Mexico (MX)
- Product Group:
- Wire Termination
- Product Type:
- Aluminum One-Hole Lug
- Selling Unit Of Measure:
- each
- Standards:
- UL E9809
- Stud Size:
- 1/2 in
- Sub Brand Label:
- Blackburn
- Type2:
- Cable or wire lug
- Voltage Rating:
- 35 kV
- Department:
- Electrical
- Product Subgroup:
- Lugs
- Product Color:
- Tan
- Product Material:
- Aluminum
Blackburn ATL10-12 – Frequently Asked Questions
1) What wire size does the Blackburn ATL10-12 compression lug take?
The ATL10-12 is sized for 1/0 conductor, and the tan color code is how you confirm that die/size at a glance in the field once the lug is out of the bag. It is a one-hole aluminum compression lug, so the barrel is crimped onto the conductor rather than tightened with a set screw.
2) Is the Blackburn ATL10-12 UL listed, and what voltage is it good for?
It carries UL file E9809 and is rated to 35 kV, which puts it in medium-voltage terminations as well as ordinary 600 V panel and switchgear work.
3) Can I use an aluminum compression lug on copper conductor?
The ATL10-12 barrel is aluminum. Aluminum-bodied compression lugs of this kind are typically rated dual-rated AL/CU by the manufacturer, but that rating is not part of the data carried for this item, so treat it as an aluminum conductor lug unless the printing on the barrel says AL9CU. For a run you know is copper, order a copper compression lug in 1/0 instead.
4) Do I need a crimp tool for this lug, or does it tighten with a screw?
This is a compression lug, so it requires a hydraulic or battery crimp tool with the correct die. Nothing tightens by hand. If you want a termination you can install with a hex key on site, use a mechanical set-screw lug in 1/0 instead of the ATL10-12.
5) Is the ATL10-12 sold individually or in a bag of ten?
Sold each. Order the exact count you need, one lug per conductor termination, and remember a three-phase plus neutral landing takes four.
6) What does the tan color on a Blackburn compression lug mean?
Tan is the color code tied to the 1/0 compression range on this lug, so on a job with several conductor sizes on the same bus you can sort lugs and dies by color instead of reading stamped numbers in a dark gear room.
7) What is the exact part number and origin for ordering the ATL10-12?
Manufacturer part number ATL10-12, Blackburn brand, made in Mexico. That MPN is what a distributor or spec writer should reference; the 10 denotes the 1/0 conductor and the 12 the 1/2 inch stud hole.
