Minerallac #10 Pan Head Phillips/Slotted Sheet Metal Screw Kit - Zinc Plated Steel Multi-Length Assortment

Professional Multi-Length Fastener Kit for Sheet Metal Applications

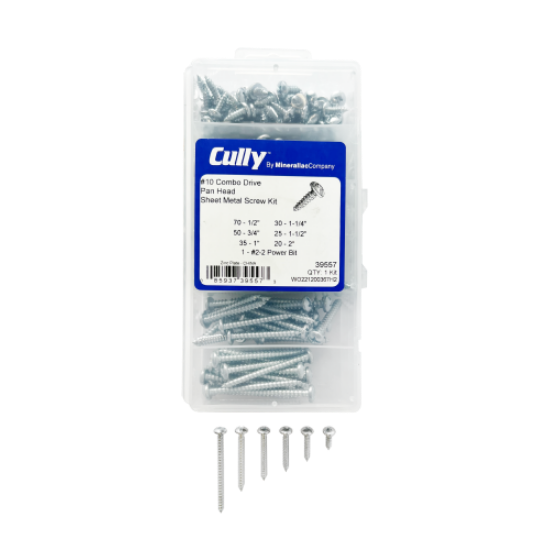

The Minerallac #10 Pan Head Phillips/Slotted Sheet Metal Screw Kit delivers comprehensive fastening solutions with zinc plated steel construction for reliable sheet metal connections. This professional assortment includes six different lengths with varying quantities: 1/2" (70 pieces), 3/4" (50 pieces), 1" (35 pieces), 1-1/4" (30 pieces), 1-1/2" (25 pieces), and 2" (20 pieces), providing versatility for multiple project requirements and ensuring you have the right length for various sheet metal thicknesses and applications.

Professional Features & Benefits

  • #10 Thread Size: Provides optimal holding power and thread engagement for secure sheet metal connections in professional installations.
  • Phillips/Slotted Combo Drive: Dual drive configuration offers installation flexibility with both Phillips and slotted drivers for enhanced accessibility.
  • Zinc Plated Finish: Corrosion-resistant coating extends service life and maintains appearance in various environmental conditions.
  • Pan Head Design: Low-profile head with 0.373" width distributes load effectively while maintaining a clean, professional appearance.
  • Steel Construction: Durable material provides excellent strength and reliability for demanding sheet metal fastening applications.
  • Type-A Thread: Self-tapping thread design creates secure connections in sheet metal without pre-drilling requirements.
  • Multi-Length Assortment: Six different lengths from 1/2" to 2" accommodate various material thicknesses and connection requirements.

Technical Specifications

  • Country Of Origin: China
  • Drive Type: Phillips/Slotted Combo
  • Driver Size: #2
  • Head Color: Silver
  • Head Height: 0.11
  • Head Type: Pan Head
  • Head Width: 0.373
  • Product Finish: Zinc Plated
  • Product Length: 1/2", 3/4", 1", 1-1/4", 1-1/2", 2 in
  • Product Material: Steel
  • Product Size: #10
  • Product Type: Sheet Metal Screw
  • Thread Size: 12
  • Thread Type: Type-A

Professional Applications

  • HVAC Equipment Installation and Maintenance
  • Electrical Enclosure Assembly
  • Metal Building Construction
  • Industrial Equipment Mounting
  • Commercial Facility Maintenance
  • Automotive and Transportation
  • General Sheet Metal Fabrication

Why Choose Minerallac Quality?

Minerallac delivers reliable fastening solutions with zinc plated steel construction and precision manufacturing. The comprehensive multi-length kit format ensures you have the right fastener for various applications, while the durable materials and corrosion-resistant finish provide long-lasting performance in professional environments.

Manufacturer Resources

Product Specs

Drive Type:
Phillips/Slotted Combo
Driver Size:
#2
Head Color:
Silver
Head Height:
0.11
Head Type:
Pan Head
Head Width:
0.373
Product Finish:
Zinc Plated
Product Length:
1/2", 3/4", 1", 1-1/4", 1-1/2", 2 in
Product Material:
Steel
Wire Size:
#10
Product Type:
Sheet Metal Screw
Thread Size:
12
Thread Type:
Type-A
Department:
Electrical
Product Subgroup:
Self-Tapping Screws
Product Group:
Hangers, Supports & Fasteners

Minerallac 39557 – Frequently Asked Questions

1) Will #10 sheet metal screws hold in an electrical enclosure or HVAC duct without pre-drilling?
The Minerallac 39557 screws use a Type-A thread, which is a self-tapping sheet metal thread that cuts its own hold in sheet stock, so a pilot hole is not required for typical sheet metal work. They are #10 size steel screws with a pan head. The Type-A profile is the coarse, sharp-point sheet metal thread, which is why it bites in thin gauge duct, panel, and enclosure sheet rather than stripping.
2) Is a #10 sheet metal screw the same as a #10 wood screw or a 10-24 machine screw?
No. These are #10 Type-A sheet metal screws: the thread is coarse, runs the full length, and is made to cut into thin metal. A 10-24 machine screw has a fine, uniform thread meant for a tapped hole or a nut, and a wood screw has a smooth shank under the head. Same nominal #10 diameter, but a sheet metal screw will not thread into a tapped 10-24 hole, and a machine screw will not hold in a punched sheet metal hole.
3) What lengths and quantities come in the Minerallac 39557 #10 screw kit?
Six lengths of #10 pan head screws: 1/2 inch (70 pieces), 3/4 inch (50), 1 inch (35), 1-1/4 inch (30), 1-1/2 inch (25) and 2 inch (20). That is 230 screws total. The short end covers panel-to-panel and strap work where you only need to clear the sheet plus a thread or two; the 1-1/2 and 2 inch sizes are for going through insulation, wood blocking, or stacked material behind the sheet.
4) What driver do I need for Minerallac 39557 sheet metal screws?
A #2 Phillips bit drives them. The head is a Phillips/slotted combo, so a flat blade works too if you are in a spot where a Phillips driver will not seat, which is the practical reason the combo drive exists on panel and enclosure work.
5) Are zinc plated sheet metal screws OK outdoors or in a damp mechanical room?
Zinc plated steel is a light corrosion-resistant coating meant for indoor and protected work: enclosures, duct runs, equipment mounting, interior metal building framing. It is not a marine or sustained-wet finish. For rooftop units, coastal sites, or anywhere with standing moisture and chloride, specify stainless or hot-dip galvanized fasteners instead of these.
6) I keep a service van stocked for HVAC and electrical calls. Is a multi-length screw kit worth carrying over single-size boxes?
For maintenance and service work, yes. The 39557 kit puts six lengths of #10 pan head screw from 1/2 inch to 2 inch in one box, which covers the usual run of duct joints, enclosure covers, strap and bracket mounting, and equipment feet without carrying six part numbers. For repetitive new construction where you drive the same 3/4 inch screw all day, a single-length bulk box is the better buy. The kit is a stocking item, not a production item.
7) What is the Minerallac part number for the #10 pan head sheet metal screw assortment?
Minerallac 39557 is the part number for the #10 zinc plated steel pan head sheet metal screw kit with the Phillips/slotted combo drive.
