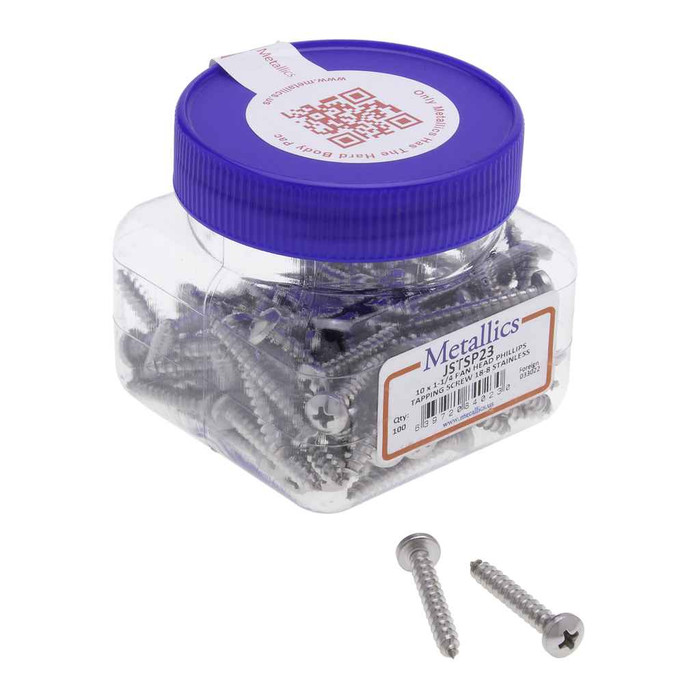

Metallics JSTSP23 10 x 1-1/4 in. Pan Head Phillips Tapping Screws - 18-8 Stainless - 100qty

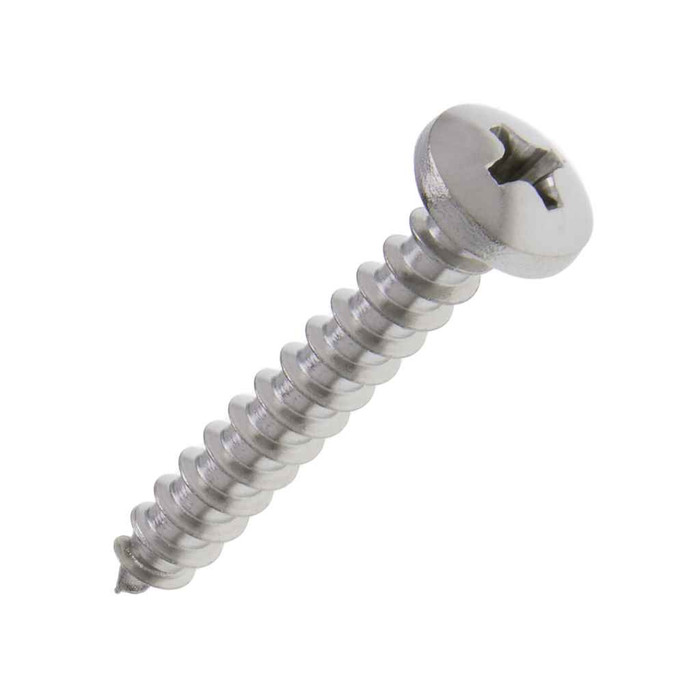

Metallics #10 x 1-1/4 in. Pan Head Phillips Type A Tapping Screws - 18-8 Stainless Steel, 100 Pack

(No reviews yet) Write a Review

Model: JSTSP23
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.94
$1.94
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Metallics #10 x 1-1/4 in. Pan Head Phillips Type A Tapping Screws - 18-8 Stainless Steel

Professional Grade Fastening Solutions for Electrical Applications

Metallics delivers reliable fastening performance with these #10 x 1-1/4 in. pan head Phillips tapping screws manufactured from 18-8 stainless steel. These Type A tapping screws feature gimlet point design and meet ASME B18.6.3-2013 dimensional standards, providing dependable fastening solutions for electrical, plumbing, heating and air conditioning industries with professional-grade corrosion resistance.

Professional Features & Benefits

  • 18-8 Stainless Steel Construction: Provides excellent corrosion resistance and durability for long-lasting performance in demanding environments.
  • #10 Diameter x 1-1/4" Length: Optimal sizing for secure fastening applications with precise dimensional control per ASME standards.
  • Pan Head Phillips Drive: Offers reliable torque transfer with #2 driver size and professional appearance for visible installations.
  • Type A Tapping Design: Self-tapping capability eliminates pre-drilling requirements, reducing installation time and labor costs.
  • Gimlet Point Configuration: Sharp point design ensures clean material penetration and reduces splitting in various substrates.
  • 48 lb-in Minimum Torsional Strength: Engineered to withstand high torque applications while maintaining thread integrity.
  • ASME B18.6.3-2013 Compliance: Meets rigorous dimensional standards ensuring consistent quality and interchangeability.

Technical Specifications

  • Arra Compliant: N
  • Buy American Compliant: No
  • Country Of Origin: MUL
  • Department: Electrical
  • Dimensional Standard: ASME B18.6.3-2013
  • Division: Electrical H1
  • Drive Type: Phillips
  • Driver Size: #2
  • Fastener Head Height: 0.122 - 0.133 in.
  • Fastener Head Type: Pan
  • Fastener Head Width: 0.357 - 0.373 in.
  • Fastener Length: 1/1/04
  • Field Application: Electrical, Plumbing, Heating and Air Conditioning Industries
  • Height: 2.7 in
  • Language Code: EN
  • Material: 18-8 Stainless
  • Neurspe: https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Pan_Slotted_Phillips_Self_Tap_SS.pdf
  • Order Minimum Imperial: 100
  • Order Minimum Uom Imperial: JR
  • Pack Type: Jar
  • Phillips Recess Depth: 0.124
  • Phillips Recess Diameter: 0.186 - 0.199
  • Phillips Recess Width: 0.031
  • Product Details: Type A Tapping Screw
  • Product Family: Electrical Supplies
  • Product Group: Fasteners
  • Product Height: 68.58 MM
  • Product Length: 3 in
  • Product Subgroup: Screws
  • Product Type: Type A Tapping Screw
  • Product Weight: 553 g
  • Product Width: 76.2 MM
  • Screw Point Type: Gimlet Point
  • Series: JSTSP
  • Sub Division: Electrical-E H2
  • Thread Per Inch: 12
  • Thread Standard: ASME B18.6.4
  • Torsional Strength: 48 lb-in minimum
  • Type2: Type A Tapping Screw
  • Weight: 1.22 lbs
  • Width: 3 in

Professional Applications

  • Electrical Panel and Enclosure Assembly
  • HVAC Equipment Installation
  • Plumbing System Components
  • Commercial Building Maintenance
  • Industrial Equipment Fastening
  • Outdoor Electrical Applications
  • Corrosive Environment Installations

Why Choose Metallics Quality?

Metallics fasteners deliver consistent performance through precision manufacturing and adherence to ASME dimensional standards. The 18-8 stainless steel construction provides superior corrosion resistance while maintaining the torsional strength required for professional installations. With gimlet point design and Type A tapping capability, these screws offer reliable fastening solutions backed by rigorous quality control standards.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-2013
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Height:
0.122 - 0.133 in.
Fastener Head Type:
Pan
Fastener Head Width:
0.357 - 0.373 in.
Fastener Length:
1/1/04
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Language Code:
EN
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Pan_Slotted_Phillips_Self_Tap_SS.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Phillips Recess Depth:
0.124
Phillips Recess Diameter:
0.186 - 0.199
Phillips Recess Width:
0.031
Product Group:
Fasteners
Product Height:
2.7 in
Product Length:
3 in
Product Weight:
1.22 lbs
Product Width:
3 in
Screw Point Type:
Gimlet Point
Sub Division:
Electrical-E H2
Thread Per Inch:
12
Thread Standard:
ASME B18.6.4
Torsional Strength:
48 lb-in minimum
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Type A Tapping Screw
Type2:
Type A Tapping Screw
Series:
JSTSP
Product Details:
Type A Tapping Screw
Product Material:
18-8 Stainless

Metallics JSTSP23 – Frequently Asked Questions

1) Do I need to pre-drill for Metallics #10 x 1-1/4 in. Type A tapping screws?
Type A tapping screws with a gimlet point are made to cut their own thread in sheet metal, so a clearance hole in the top piece and a pilot in the base material is normal practice, but no tapping operation is needed. The sharp gimlet point starts the screw cleanly and reduces splitting in softer substrates.
2) Will 18-8 stainless tapping screws hold up outdoors or in a damp mechanical room?
18-8 stainless is the material here, which is why these get used on outdoor electrical enclosures, HVAC equipment and corrosive-environment work rather than plated carbon steel screws. Keep in mind stainless has lower torsional strength than hardened steel, so drive them with a #2 Phillips bit at controlled speed.
3) How much torque can a #10 Metallics tapping screw take before it twists off?
48 lb-in minimum torsional strength. That is the point to set a clutch below if you are running them with an impact or a high-torque driver, because stainless screws snap rather than strip when overdriven.
4) What thread pitch do these #10 tapping screws have, and will they match existing #10 holes?
12 threads per inch, cut to ASME B18.6.4 for thread form, with overall dimensions to ASME B18.6.3-2013. A #10-12 Type A thread is coarse sheet metal thread, not machine thread, so it will not run into a tapped #10-24 or #10-32 machine screw hole. Use it in pilot holes in sheet metal, not in factory-tapped machine screw bosses.
5) Do these Metallics stainless tapping screws qualify for a Buy American or ARRA job?
No. The JSTSP23 screws are not Buy American compliant and are not ARRA compliant, with country of origin listed as multiple. If your project has domestic sourcing language in the spec, these will not satisfy it.
6) What size driver bit do these Metallics pan head Phillips screws take?
A #2 Phillips bit. The recess is 0.186 to 0.199 inch in diameter and 0.124 inch deep, which is standard Phillips geometry for a #10 pan head, so an ordinary #2 insert bit seats fully. Using a #1 will cam out and chew the recess in stainless.
7) How much of a pan head will sit proud on an electrical enclosure face?
The pan head measures 0.357 to 0.373 inch across and 0.122 to 0.133 inch high. That is a low, rounded profile with a broad bearing surface, so it spreads load on thin sheet metal without countersinking, but it does not sit flush. If you need flush, use a flat head screw instead.
8) How many Metallics JSTSP23 screws come in a jar?
They ship 100 to a jar, and 100 is the order minimum. Model JSTSP23 is the #10 x 1-1/4 in. pan head Phillips Type A in 18-8 stainless.
