Metallics JTEKD8SS 10 x 1-3/4 ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$385.71

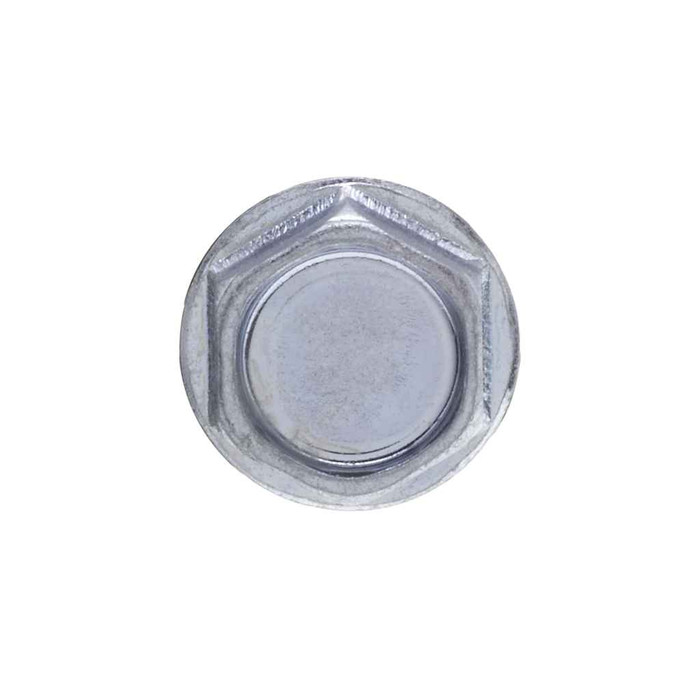

Metallics JTEKD8SS 10 x 1-3/4 in. 5/16 Indented Hex Head Self-Drilling & Tapping Screws with Washer - #3 Drill Point - 410 Stainless Steel - 100qty

Metallics JTEKD8SS 10 x 1-3/4 in. 5/16 Indented Hex Head Self-Drilling & Tapping Screws with Washer - #3 Drill Point - 410 Stainless Steel - Each

(No reviews yet) Write a Review

Model: JTEKD8SS
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$385.71
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10 x 1-3/4 in. 5/16 Indented Hex Head Self-Drilling & Tapping Screws with Washer - #3 Drill Point - 410 Stainless Steel - 100qty

  • Features

    • #3 Drill Point
    • Minimum torques are the same for stainless and steel self-drill screws. Drill time is 2.5 seconds for a 1 mm thick plate.
    • 5/16 Indented Hex Head with Hex Drive
    • 10 Diameter, 1-3/4" Length
    • 410 Stainless Steel Coating

  • Additional Notes

    • Other sizes and quantities available by request. | SAE J78 does not include Specifications for #7 diameter drill screws. | This table is only a guide and does not constitute a warranty of any type.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
C
Buy American Compliant:
C
Dimensional Standard:
ASME B18.6.3-2010
Division:
Electrical H1
Drill Point Size:
#3
Drive Type:
Hex
Fastener Head Height:
0.105 - 0.12 in.
Fastener Head Type:
Indented Hex
Fastener Head Width:
0.305 - 0.312 in.
Fastener Length:
1/3/04
Hardness:
Rockwell C38-46
Language Code:
EN
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Head_Self-Drill_TS_Indent_Hex_Washer.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Panel Thickness:
0.110 - 0.175 IN
Product Group:
Fasteners
Product Height:
3.6 in
Product Length:
3 in
Product Weight:
1.14 lbs
Product Width:
3 in
Screw Point Type:
Drill Point
Slot Depth:
0.057 - 0.072
Slot Width:
0.05 - 0.06
Sub Division:
Electrical-E H2
Thread Per Inch:
16
Thread Standard:
SAE J78 - 2013
Thread Type:
UNC
Torsional Strength:
61 lb-in minimum
Washer Od:
0.384 - 0.414 in.
Washer Thickness:
0.019 - 0.031 IN
Width Across Corners:
0.34
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Type BSD Self-Drilling & Tapping Screw
Type2:
Type BSD Self-Drilling & Tapping Screw
Series:
JTEKD
Product Details:
Type BSD Self-Drilling & Tapping Screw
Product Material:
410 Stainless Steel

Metallics JTEKD8SS – Frequently Asked Questions

1) How thick a metal panel will the Metallics JTEKD8SS self-drilling screw drill through?
The JTEKD8SS is rated for panel thicknesses of 0.110 to 0.175 inch. That is the range the #3 drill point is sized to cut and tap in one pass. Thinner sheet than 0.110 inch or steel heavier than 0.175 inch calls for a different drill point number.
2) Is this screw suitable for exterior or damp locations?
The screw is 410 stainless steel, which gives corrosion resistance that plain carbon steel self-drillers do not have, while staying hard enough to drill its own hole. Hardness is Rockwell C38-46. For hardware mounted outdoors or in wash-down and humid areas, that is the reason to pick a 410 stainless self-driller over a zinc-plated one.
3) Does the washer come attached to the screw, and how wide is it?
Yes, the sealing washer is part of the assembly on the JTEKD8SS. Washer outside diameter runs 0.384 to 0.414 inch with a thickness of 0.019 to 0.031 inch, so it spreads the load across the sheet metal without needing a separate loose washer in your pouch.
4) How many Metallics JTEKD8SS screws come in a pack?
They ship in a jar of 100, which is the order minimum (100 count). One jar weighs 1.14 lbs.
5) What thread does a #10 self-drilling screw like this use, and will it hold in tapped steel?
It is a UNC thread at 16 threads per inch in a #10 diameter, cut to SAE J78 - 2013. The screw taps that thread itself as it drills, so it mates with the hole it creates. Minimum torsional strength is 61 lb-in, which is the figure that matters when you are running these with an impact or a high-torque screwgun.
6) Do these Metallics screws meet Buy American requirements for a government or institutional job?
The JTEKD8SS is flagged as both Buy American compliant and ARRA compliant in the manufacturer data. Country of origin is listed as multiple, so if your contract requires a single named origin on the submittal, that is the point to verify before you spec it.
7) Will stainless self-drillers drive slower than steel ones?
No. Per the Metallics data, minimum torques are the same for stainless and steel self-drill screws, with a drill time of 2.5 seconds through a 1 mm thick plate. You are not trading drive speed for the 410 stainless corrosion resistance.
8) What dimensional standard does this indented hex washer head screw conform to?
Head geometry follows ASME B18.6.3-2010 and the thread follows SAE J78 - 2013. That pairing is what lets a specifier call out a Type BSD self-drilling and tapping screw on a drawing and get a repeatable head and thread from any lot.
