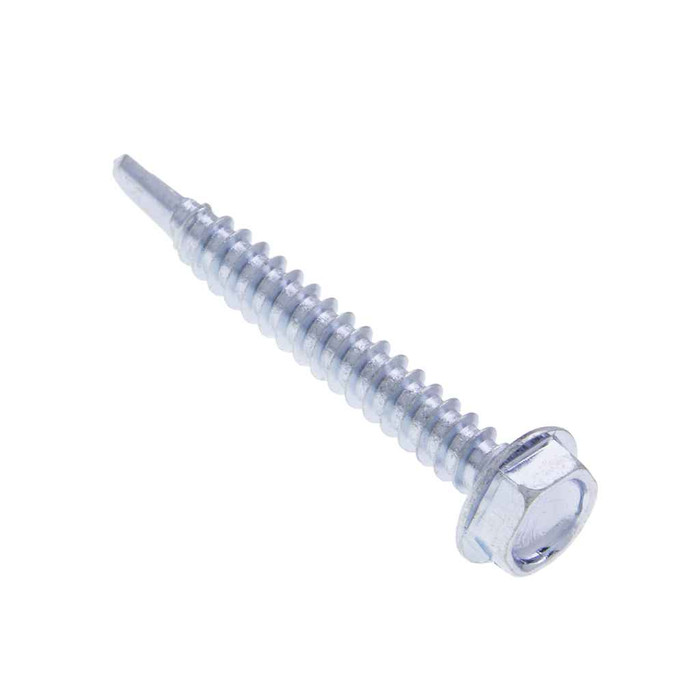

Metallics JTEKD4V 10 x 1/2 in. 1/4 Indented Hex Head Self-Drilling & Tapping Screws with Washer - #2 Drill Point - Steel Zinc - 500qty

Metallics JTEKD4V 10 x 1/2 in. 1/4 Indented Hex Head Self-Drilling & Tapping Screws with Washer - #2 Drill Point - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JTEKD4V
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.21
$0.21
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10 x 1/2 in. 1/4 Indented Hex Head Self-Drilling & Tapping Screws with Washer - #2 Drill Point - Steel Zinc - 500qty

  • Features

    • Steel Zinc Material
    • #2 Drill Point
    • Minimum torques are the same for stainless and steel self-drill screws. Drill time is 2.5 seconds for a 1 mm thick plate.
    • 1/4 Indented Hex Head with Hex Drive
    • 10 Diameter, 1/2" Length

  • Additional Notes

    • Other sizes and quantities available by request. | SAE J78 does not include Specifications for #7 diameter drill screws. | This table is only a guide and does not constitute a warranty of any type.

Manufacturer Resources

Product Specs

Minimum Purchase:
500 units
Arra Compliant:
C
Buy American Compliant:
C
Dimensional Standard:
ASME B18.6.3-2010
Division:
Electrical H1
Drill Point Size:
#2
Drive Type:
Hex
Fastener Head Color:
Silver
Fastener Head Height:
0.105 - 0.12 in.
Fastener Head Type:
Indented Hex
Fastener Head Width:
0.305 - 0.312 in.
Fastener Length:
2-Jan
Hardness:
Rockwell C32-40
Language Code:
EN
Material Standard:
AISI 1016 - 1024
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Head_Self-Drill_TS_Indent_Hex_Washer.pdf
Order Minimum Imperial:
500
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Panel Thickness:
0.035 - 0.110 IN
Product Group:
Fasteners
Product Height:
3.6 in
Product Length:
3 in
Product Weight:
2.3 lbs
Product Width:
3 in
Screw Point Type:
Drill Point
Slot Depth:
0.057 - 0.072
Slot Width:
0.05 - 0.06
Sub Division:
Electrical-E H2
Thread Per Inch:
16
Thread Standard:
SAE J78 - 2013
Thread Type:
UNC
Torsional Strength:
61 lb-in minimum
Washer Od:
0.384 - 0.414 in.
Washer Thickness:
0.019 - 0.031 IN
Width Across Corners:
0.34
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Type BSD Self-Drilling & Tapping Screw
Type2:
Type BSD Self-Drilling & Tapping Screw
Series:
JTEKD
Product Finish:
Zinc
Product Details:
Type BSD Self-Drilling & Tapping Screw
Product Material:
Steel Zinc

Metallics JTEKD4V – Frequently Asked Questions

1) What metal thickness can the Metallics JTEKD4V self-drilling screw drill through?
The JTEKD4V is rated for panel thicknesses of 0.035 to 0.110 inch, which covers typical light-gauge steel studs, strut, and sheet metal enclosures. Its #2 drill point cuts its own hole, so no pilot drilling is needed within that range. Go thicker than 0.110 inch and you want a larger drill point.
2) Are these screws suitable for a Buy American or ARRA funded job?
Metallics lists the JTEKD4V as both ARRA compliant and Buy American compliant. Country of origin is multiple, so if your specification requires documentation of a single origin, request the mill paperwork for the lot you receive.
3) Do I need to pre-drill before driving these screws into metal studs?
No pilot hole. The #2 drill point drills, taps, and fastens in one pass, and Metallics cites roughly 2.5 seconds of drill time on a 1 mm plate. Use a drill or impact driver with a 1/4 inch nut setter and keep steady pressure so the point cuts rather than work-hardens the steel.
4) How many screws come in a jar of Metallics JTEKD4V?
They ship 500 to a jar, and 500 count is the order minimum. That is the usual quantity an electrical contractor buys for mounting straps, boxes, and strut to light-gauge steel.
5) Will the washer head on these #10 self-drilling screws seal or spread load on sheet metal?
The integral washer runs 0.384 to 0.414 inch outside diameter and 0.019 to 0.031 inch thick, which spreads clamp load over thin sheet so the head does not pull through. It is a bare steel washer head, not a bonded rubber sealing washer, so treat it as a bearing surface rather than a weather seal.
6) What standards do these Metallics Type BSD self-drilling screws meet?
Dimensionally they are built to ASME B18.6.3-2010, with threads per SAE J78-2013 in a UNC form at 16 threads per inch. Steel is AISI 1016 to 1024, case hardened to Rockwell C32-40, with 61 lb-in minimum torsional strength. That hardness is what lets the point drill steel without the screw snapping.
7) Can I use these zinc plated self-drilling screws outdoors or in a wet location?
Zinc plated carbon steel is a dry indoor finish. The JTEKD4V is steel with a zinc plating, fine for interior stud work, strut, panels, and enclosures, but exposed exterior or damp runs will corrode the plating over time. For outdoor or corrosive service choose a stainless self-drilling screw instead.
8) Is a 1/2 inch long #10 screw long enough for my application?
At 1/2 inch overall it is a short fastener, sized to drill and tap a single light-gauge member plus whatever thin strap or clip you are holding to it. Panel thickness capacity is 0.035 to 0.110 inch. If you are stacking a thicker bracket or passing through a thick spacer, step up to a longer length in the same JTEKD series.
