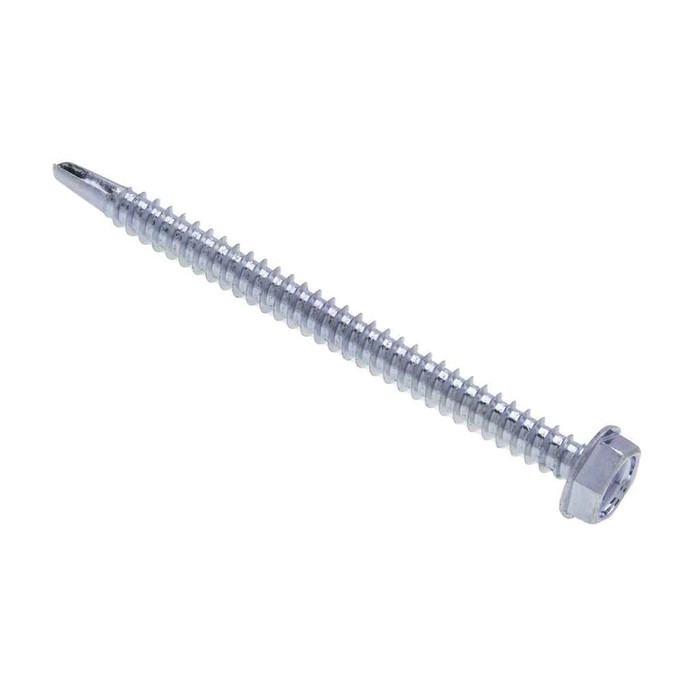

Metallics 10 x 2 in. Self-Drilling & Tapping Screws with Washer - 410 Stainless Steel Indented Hex Head #3 Drill Point
Professional Type BSD Self-Drilling & Tapping Fasteners for Electrical Applications
Metallics delivers professional-grade self-drilling and tapping screws engineered for reliable performance in electrical, plumbing, heating and air conditioning applications. These 10 x 2 in. fasteners feature 410 stainless steel construction with indented hex head design and integrated washer for secure, corrosion-resistant connections. The #3 drill point provides efficient penetration with 2.5 second drill time for 1 mm thick plates, while the hex drive system ensures positive engagement and controlled installation.
Professional Features & Benefits
- 410 Stainless Steel Construction: Provides superior corrosion resistance and durability with Rockwell C38-46 hardness for long-lasting performance in demanding environments.
- Self-Drilling & Tapping Design: Eliminates pre-drilling requirements, reducing installation time and labor costs while ensuring precise thread formation.
- Integrated Washer System: Built-in washer with 0.384-0.414 in. OD distributes load evenly and provides weather-tight seal for professional installations.
- #3 Drill Point: Engineered for optimal penetration with 2.5 second drill time through 1 mm plates, maximizing productivity and reducing tool wear.
- Indented Hex Head Design: 5/16 hex drive provides positive engagement and high torque transfer with 61 lb-in minimum torsional strength for secure fastening.
- ASME B18.6.3-2010 Compliance: Meets dimensional standards for consistent quality and compatibility with professional installation practices.
- Versatile Panel Compatibility: Accommodates panel thickness from 0.110-0.175 in. for flexible application across various substrate materials.
Technical Specifications
- Arra Compliant: N
- Buy American Compliant: No
- Country Of Origin: MUL
- Department: Electrical
- Dimensional Standard: ASME B18.6.3-2010
- Division: Electrical H1
- Drill Point Size: #3
- Drive Type: Hex
- Fastener Head Height: 0.105 - 0.12 in.
- Fastener Head Type: Indented Hex
- Fastener Head Width: 0.305 - 0.312 in.
- Fastener Length: 2
- Field Application: Electrical, Plumbing, Heating and Air Conditioning Industries
- Hardness: Rockwell C38-46
- Height: 3.6 in
- Language Code: EN
- Material: 410 Stainless Steel
- Neurspe: https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Head_Self-Drill_TS_Indent_Hex_Washer.pdf
- Order Minimum Imperial: 100
- Order Minimum Uom Imperial: JR
- Pack Type: Jar
- Panel Thickness: 0.110 - 0.175 IN
- Product Details: Type BSD Self-Drilling & Tapping Screw
- Product Family: Electrical Supplies
- Product Group: Fasteners
- Product Height: 91.44 MM
- Product Length: 3 in
- Product Subgroup: Screws
- Product Type: Type BSD Self-Drilling & Tapping Screw
- Product Weight: 572 g
- Product Width: 76.2 MM
- Screw Point Type: Drill Point
- Series: JTEKD
- Slot Depth: 0.057 - 0.072
- Slot Width: 0.05 - 0.06
- Sub Division: Electrical-E H2
- Thread Per Inch: 16
- Thread Standard: SAE J78 - 2013
- Torsional Strength: 61 lb-in minimum
- Type2: Type BSD Self-Drilling & Tapping Screw
- Washer Od: 0.384 - 0.414 in.
- Washer Thickness: 0.019 - 0.031 IN
- Weight: 1.26 lbs
- Width: 3 in
- Width Across Corners: 0.34
Installation & Operation
- Mount the unit in a suitable location with appropriate clearance and access for connections and service.
- Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
- Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
- Configure any available load management or control features as supported by the provided specifications.
- Test automatic transfer or operational functionality and verify proper performance before placing into service.
- Complete final inspection and follow ongoing maintenance practices appropriate to the product category.
Professional Applications
- Electrical panel and enclosure assembly
- HVAC equipment mounting and connections
- Plumbing fixture installation
- Commercial building systems
- Industrial equipment fastening
- Maintenance and repair operations
- Metal-to-metal joining applications
Why Choose Metallics Quality?
Metallics fasteners deliver consistent performance with ASME B18.6.3-2010 dimensional compliance and SAE J78-2013 thread standards. The 410 stainless steel construction with Rockwell C38-46 hardness ensures reliable service life, while the professional jar packaging maintains product integrity for demanding field applications.
Manufacturer Resources
Product Specs
- Minimum Purchase:
- 100 units
- Arra Compliant:
- N
- Buy American Compliant:
- No
- Country Of Origin:
- MUL
- Dimensional Standard:
- ASME B18.6.3-2010
- Division:
- Electrical H1
- Drill Point Size:
- #3
- Drive Type:
- Hex
- Fastener Head Height:
- 0.105 - 0.12 in.
- Fastener Head Type:
- Indented Hex
- Fastener Head Width:
- 0.305 - 0.312 in.
- Fastener Length:
- 2
- Field Application:
- Electrical, Plumbing, Heating and Air Conditioning Industries
- Hardness:
- Rockwell C38-46
- Language Code:
- EN
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Head_Self-Drill_TS_Indent_Hex_Washer.pdf
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- JR
- Pack Type:
- Jar
- Panel Thickness:
- 0.110 - 0.175 IN
- Product Family:
- Electrical Supplies
- Product Group:
- Fasteners
- Product Height:
- 3.6 in
- Product Length:
- 3 in
- Product Weight:
- 1.26 lbs
- Product Width:
- 3 in
- Screw Point Type:
- Drill Point
- Slot Depth:
- 0.057 - 0.072
- Slot Width:
- 0.05 - 0.06
- Sub Division:
- Electrical-E H2
- Thread Per Inch:
- 16
- Thread Standard:
- SAE J78 - 2013
- Torsional Strength:
- 61 lb-in minimum
- Washer Od:
- 0.384 - 0.414 in.
- Washer Thickness:
- 0.019 - 0.031 IN
- Width Across Corners:
- 0.34
- Department:
- Electrical
- Product Subgroup:
- Screws
- Product Type:
- Type BSD Self-Drilling & Tapping Screw
- Type2:
- Type BSD Self-Drilling & Tapping Screw
- Series:
- JTEKD
- Product Details:
- Type BSD Self-Drilling & Tapping Screw
- Product Material:
- 410 Stainless Steel
