Metallics CPD5V 10 x 3-1/2 in....
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$51.53
$1.53

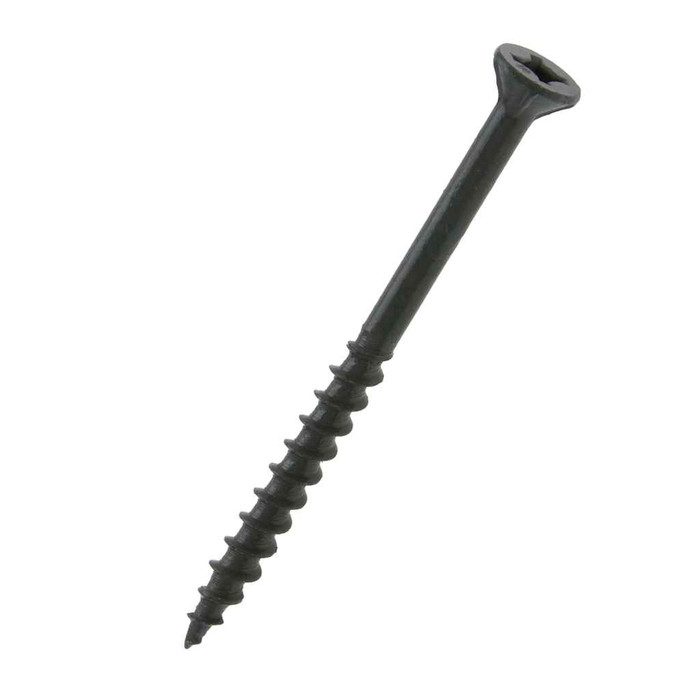

Metallics CPD5V 10 x 3-1/2 in. Bugle Head Square & Phillips Deck Screws - Steel Ceramic - Type 17 - Coarse Threads - 500qty

Metallics CPD5V 10 x 3-1/2 in. Bugle Head Square & Phillips Deck Screws - Steel Ceramic - Type 17 - Coarse Threads - 500qty

(No reviews yet) Write a Review

Model: MET-CPD5V
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$51.53
$1.53
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10 x 3-1/2 in. Bugle Head Square & Phillips Deck Screws - Steel Ceramic - Type 17 - Coarse Threads - 500qty

  • Additional Notes

    • Other sizes and quantities available by request | In the abscence of a single industry standard for Bugle Heads, these dimensions are offered as a guide; slight deviations are acceptable. | In the abscence of a single industry standard for Deck Screws, these dimensions are offered as a guide; slight deviations are acceptable. | There is no single standard for deck screw dimensions. These values are offered as a guide; deviations from these specifications may occur.

  • Features

    • Includes Free Power Bit
    • Bugle Head with Square & Phillips Drive
    • Ceramic Polymer Coating Protects Against Corrosion, Good wear resistance and can be used in pressure treated lumber, Excellent resistance to UV radiation, Flat Head With Nibs, Combo Square-Phillips Drive
    • 10 Diameter, 3-1/2" Length
    • Steel Ceramic Coated

  • Kit Components

    • #1 Drive Power Bit

Manufacturer Resources

Product Specs

Arra Compliant:
N
Buy American Compliant:
No
Country Of Origin:
MUL
Division:
Electrical H1
Drive Type:
Square/Phillips
Driver Size:
#2
Fastener Head Height:
0.020 - 0.039 in.
Fastener Head Type:
Bugle
Fastener Head Width:
0.334 - 0.363 in.
Fastener Length:
3/1/02
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Finish:
Ceramic Polymer Coating
Height:
6.13 in
Language Code:
EN
Length:
9 in
Material:
Steel Ceramic
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Bugle_Hd_Sq_Phil_Type_17_Coarse_Thrd_Deck_Scr.pdf
Order Minimum Imperial:
500
Order Minimum Uom Imperial:
EA
Pack Type:
Box
Phillips Recess Depth:
0.124
Phillips Recess Diameter:
0.190 - 0.204
Product Family:
Electrical Supplies
Product Group:
Fasteners
Product Height:
155.702 MM
Product Length:
228.6 MM
Product Series:
CPD
Product Weight:
4228 g
Product Width:
228.6 MM
Screw Point Type:
Type 17
Square Recess Depth:
0.064 - 0.075
Square Recess Width:
0.110 - 0.113
Sub Division:
Electrical-E H2
Thread Per Inch:
8
Thread Spacing:
Coarse
Thread Type:
UNC
Type:
Deck Screw
Weight:
9.32 lbs
Width:
9 in
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Deck Screw
Type2:
Deck Screw
!
