Metallics JDSP81 10 x 3 in. 5/...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.39
$0.39

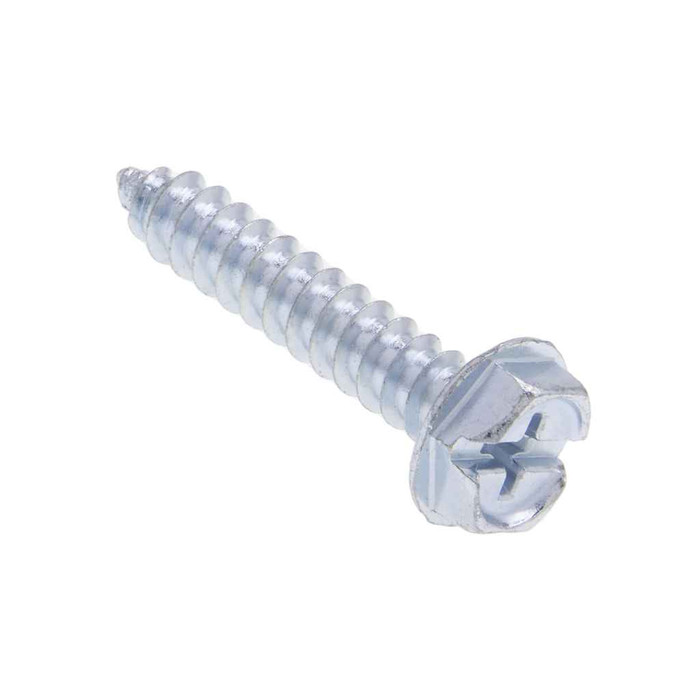

Metallics JDSP81 10 x 3 in. 5/16 Hex Head Phillips Sharp Point Tapping Screws - Steel Zinc - 100qty

Metallics JDSP81 10 x 3 in. 5/16 Hex Head Phillips Sharp Point Tapping Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JDSP81
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.39
$0.39
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10 x 3 in. 5/16 Hex Head Phillips Sharp Point Tapping Screws - Steel Zinc - 100qty

  • Features

    • 10 Diameter, 3" Length
    • Hex 5/16 Head with Phillips Drive
    • Steel Zinc Material

  • Additional Notes

    • Other sizes and quantities available by request | Dimensions for #9 diameter are independent of ASME B18.6.4

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
C
Buy American Compliant:
C
Dimensional Standard:
ASME B18.6.3-2013
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Height:
0.105 - 0.12 in.
Fastener Head Type:
Hex
Fastener Head Width:
0.305 - 0.312 in.
Fastener Length:
3
Hardness:
RockweII C28-38
Language Code:
EN
Material Standard:
AISI 1016 - 1024
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Phillips Recess Diameter:
0.178
Product Group:
Fasteners
Product Height:
5.75 in
Product Length:
3.5 in
Product Weight:
1.81 lbs
Product Width:
3.5 in
Recess Penetration Gaging Depth:
0.102 - 0.127
Screw Point Type:
Gimlet Point
Sub Division:
Electrical-E H2
Thread Per Inch:
12
Thread Standard:
ASME B18.6.4
Torsional Strength:
48 lb-in minimum
Washer Od:
0.384 - 0.414 in.
Washer Thickness:
0.019 - 0.031 IN
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Type A Tapping Screw
Type2:
Type A Tapping Screw
Series:
JDSP
Product Finish:
Zinc
Product Details:
Type A Tapping Screw
Product Material:
Steel Zinc

Metallics JDSP81 – Frequently Asked Questions

1) Is a Type A tapping screw right for sheet metal and wood, or do I need a self-drilling screw?
The JDSP81 is a Type A tapping screw with a gimlet (sharp) point and 12 threads per inch. The sharp point starts in thin sheet metal, wood, and plastic without a pilot, cutting its own thread as it goes. It does not drill, so it is not the screw for heavy steel or structural plate, where a self-drilling point is the right call. Spaced coarse threads like these grip soft material better than a machine-thread screw would.
2) Can these zinc plated Metallics screws be used outdoors?
The JDSP81 is steel with a zinc finish. Zinc plating handles indoor and dry or sheltered conditions and resists general corrosion, but it is not a marine or sustained-wet finish. For exposed exterior or coastal work, step up to a stainless or hot dip galvanized fastener.
3) Do the Metallics JDSP81 hex head screws come with a built-in washer?
Yes, the head is a hex washer head. The integral washer runs 0.384 to 0.414 inch outside diameter with a thickness of 0.019 to 0.031 inch, and head height is 0.105 to 0.12 inch. That flange spreads the load so you do not need a separate washer when fastening through sheet metal or thin material.
4) Do these Metallics tapping screws meet Buy American requirements for a federal or institutional job?
The JDSP81 is flagged compliant for both ARRA and Buy American in Metallics' data, though country of origin is listed as China. On federally funded work, verify which standard your contract invokes, since the compliance flag and the origin need to be reconciled by your specifier.
5) How are the Metallics JDSP81 screws packaged and what is the minimum order?
They ship in a jar, with a minimum order of 100 count. Pack weight is 1.81 lbs.
6) What standards do the #10 x 3 in. Metallics tapping screws conform to?
Dimensions follow ASME B18.6.3-2013 and the thread form follows ASME B18.6.4. Worth noting for anyone cross-checking a submittal: Metallics states that dimensions for the #9 diameter screws in this series fall outside ASME B18.6.4, but the #10 x 3 in. JDSP81 is a standard size.
