Metallics TEKD1210M 10 x 3/4 i...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.11
$0.11

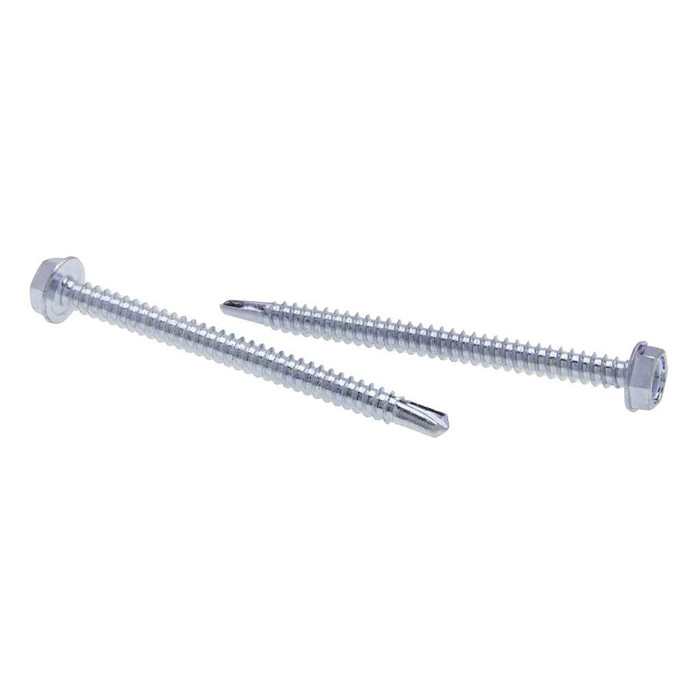

Metallics TEKD1210M 10 x 3/4 in. 5/16 Indented Hex Head Self-Drilling & Tapping Screws with Washer - #3 Drill Point - Steel Zinc - 10000qty

Metallics TEKD1210M 10 x 3/4 in. 5/16 Indented Hex Head Self-Drilling & Tapping Screws with Washer - #3 Drill Point - Steel Zinc - Each

(No reviews yet) Write a Review

Model: TEKD1210M
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.11
$0.11
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10 x 3/4 in. 5/16 Indented Hex Head Self-Drilling & Tapping Screws with Washer - #3 Drill Point - Steel Zinc - 10000qty

  • Features

    • #3 Drill Point
    • Steel Zinc Material
    • 5/16 Indented Hex Head with Hex Drive
    • Minimum torques are the same for stainless and steel self-drill screws. Drill time is 2.5 seconds for a 1 mm thick plate.
    • 10 Diameter, 3/4" Length

  • Additional Notes

    • Other sizes and quantities available by request. | SAE J78 does not include Specifications for #7 diameter drill screws. | This table is only a guide and does not constitute a warranty of any type.

Manufacturer Resources

Product Specs

Minimum Purchase:
10000 units
Arra Compliant:
C
Buy American Compliant:
C
Dimensional Standard:
ASME B18.6.3-2010
Division:
Electrical H1
Drill Point Size:
#3
Drive Type:
Hex
Fastener Head Height:
0.105 - 0.12 in.
Fastener Head Type:
Indented Hex
Fastener Head Width:
0.305 - 0.312 in.
Fastener Length:
4-Mar
Hardness:
Rockwell C32-40
Language Code:
EN
Material Standard:
AISI 1016 - 1024
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Head_Self-Drill_TS_Indent_Hex_Washer.pdf
Order Minimum Imperial:
10000
Order Minimum Uom Imperial:
TH
Pack Type:
Box
Panel Thickness:
0.110 - 0.175 IN
Product Group:
Fasteners
Product Height:
6.13 in
Product Length:
9 in
Product Weight:
59.3 lbs
Product Width:
9 in
Remarks:
The catalog UPC differ from the tarnsaction daat spreadsheet UPC
Screw Point Type:
Drill Point
Slot Depth:
0.057 - 0.072
Slot Width:
0.05 - 0.06
Sub Division:
Electrical-E H2
Thread Per Inch:
16
Thread Standard:
SAE J78 - 2013
Torsional Strength:
61 lb-in minimum
Washer Od:
0.384 - 0.414 in.
Washer Thickness:
0.019 - 0.031 IN
Width Across Corners:
0.34
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Type BSD Self-Drilling & Tapping Screw
Type2:
Type BSD Self-Drilling & Tapping Screw
Series:
JTEKD
Product Finish:
Zinc
Product Details:
Type BSD Self-Drilling & Tapping Screw
Product Material:
Steel Zinc

Metallics TEKD1210M – Frequently Asked Questions

1) Can I use these screws on a Buy American or ARRA funded job?
Yes. The TEKD1210M is flagged both ARRA compliant and Buy American compliant, which is what a government, school, or healthcare procurement file usually needs on fasteners. Country of origin is listed as multiple.
2) How is the TEKD1210M packaged and what is the minimum order?
These ship boxed with an order minimum of 10,000 pieces, so it is a bulk-buy line aimed at contractors and MRO stockrooms rather than a small count carton. The full box weighs 59.3 lbs.
3) What size driver do I need for a 5/16 indented hex head self-drilling screw?
A 5/16 hex driver or socket. The head measures 0.305 to 0.312 in. across the flats with a head height of 0.105 to 0.12 in., and width across corners is 0.34 in., so a standard 5/16 magnetic nut setter in an impact or screwgun seats it fine. Drive type is hex only, no slot needed.
4) Does the TEKD1210M screw have a sealing washer or just a steel washer?
It is a bonded-free steel washer head, not a sealing washer. The washer OD runs 0.384 to 0.414 in. with a thickness of 0.019 to 0.031 in., which spreads the clamp load over sheet metal and strut. There is no rubber or EPDM element, so for weather-exposed roof or siding penetrations you want a separate neoprene-backed washer.
5) Will a #10 x 3/4 zinc self-drilling screw hold up in an outdoor or damp electrical install?
Material is steel with a zinc finish, which handles interior and protected exterior service. For standing moisture, coastal exposure, or chemical environments, zinc-plated carbon steel will eventually corrode and a stainless self-drilling screw is the better call.
6) What standards do these Metallics self-drilling tapping screws meet?
Threads are to SAE J78-2013 and head dimensions to ASME B18.6.3-2010. Steel is AISI 1016-1024 case hardened to Rockwell C32-40, with a minimum torsional strength of 61 lb-in. That combination is what a spec writer is looking for when a drawing calls out a Type BSD self-drilling and tapping screw.
7) How much thread engagement do I get from a 3/4 inch self-drilling screw with 16 threads per inch?
Thread pitch is 16 TPI on a 3/4 in. overall length, so after the drill point and the washer head you still have usable engagement in sheet up to the rated 0.175 in. For thicker stacks or where you are fastening a bracket plus a panel, step up to a longer screw so the point fully clears the back of the material and the threads can tap.
8) Do I need to pre-drill a pilot hole before driving these screws?
No. The point drills, taps, and fastens in one pass within the 0.110 to 0.175 in. panel range. Per the manufacturer data, drill time runs about 2.5 seconds on a 1 mm plate, and torque requirements are the same as for stainless self-drill screws.
