Metallics 10 x 3/4 in. 5/16 In...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.40
$0.49

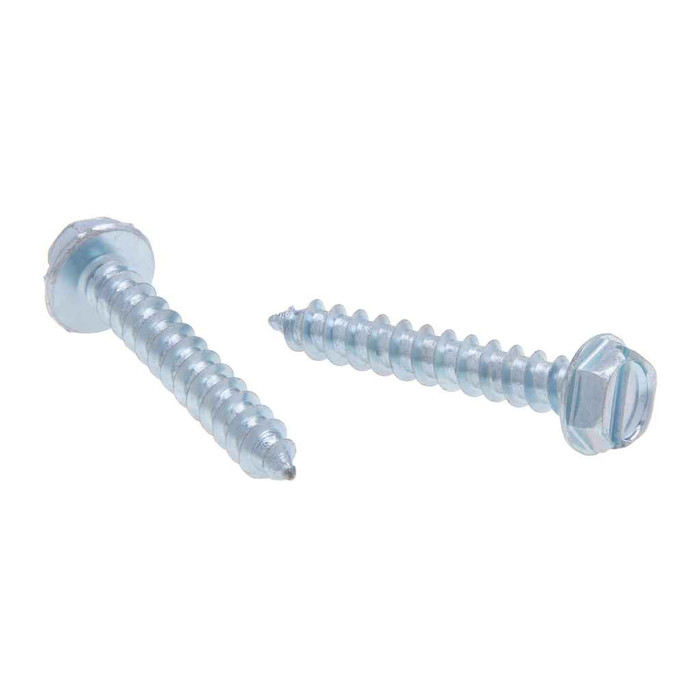

Metallics 10 x 3/4 in. 5/16 Indented Hex Head Slotted Sharp Point Tapping Screws - 18-8 Stainless - 100qty

Metallics 10 x 3/4 in. 5/16 Indented Hex Head Slotted Sharp Point Tapping Screws - 18-8 Stainless - Each

(No reviews yet) Write a Review

Model: JDS181SS
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.40
$0.49
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10 x 3/4 in. 5/16 Indented Hex Head Slotted Sharp Point Tapping Screws - 18-8 Stainless - 100qty

  • Features

    • 18-8 Stainless Material
    • Hex 5/16 Head with slotted Drive
    • Fastening stainless steel parts to aluminum or steel can cause a type of corrosion known as a galvanic couple in some environments.
    • 10 Diameter, 3/4" Length

  • Additional Notes

    • Other sizes and quantities available by request | Dimensions for #9 diameter are independent of ASME B18.6.4

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
C
Buy American Compliant:
C
Dimensional Standard:
ASME B18.6.3-2010
Division:
Electrical H1
Drive Type:
Hex/Slotted
Fastener Head Height:
0.105 - 0.12 in.
Fastener Head Type:
Indented Hex
Fastener Head Width:
0.305 - 0.312 in.
Fastener Length:
4-Mar
Hardness:
RockweII C28-38
Language Code:
EN
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Indent_Hex_Head_Slot_TS.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.67 lbs
Product Width:
3 in
Screw Point Type:
Gimlet Point
Slot Depth:
0.057 - 0.072
Slot Width:
0.05 - 0.06
Sub Division:
Electrical-E H2
Thread Per Inch:
12
Thread Standard:
ASME B18.6.4
Washer Od:
0.384 - 0.414 in.
Washer Thickness:
0.019 - 0.031 IN
Width Across Corners:
0.34
Product Type:
Tapping screw
Product Group:
Fasteners
Department:
Electrical
Product Subgroup:
Screws
Type2:
Type A Tapping Screw
Series:
JDS
Product Details:
Type A Tapping Screw
Product Material:
18-8 Stainless

Metallics JDS181SS – Frequently Asked Questions

1) Can I use 18-8 stainless tapping screws to fasten into aluminum or steel?
Mechanically yes, but there is a corrosion caution: fastening stainless steel parts to aluminum or steel can create a galvanic couple in some environments, which corrodes the softer base metal. Metallics flags this on the JDS181SS screw itself. For damp, coastal, or exterior work, either isolate the joint or match the fastener material to the base metal.
2) How much does the head of this screw stand off the surface, and does it have a built-in washer face?
Head height runs 0.105 to 0.12 inch, so it sits close to the work for a hex head. The indented hex head carries a washer face 0.384 to 0.414 inch outside diameter and 0.019 to 0.031 inch thick, which spreads bearing on sheet metal and strut without adding a loose washer. If you need a flush surface, this is not the screw, use a flat head.
3) Do these Metallics screws meet a dimensional standard I can put on a submittal?
Yes. The JDS181SS screw is built to ASME B18.6.3-2010 for dimensions and ASME B18.6.4 for the tapping screw thread, and the material is 18-8 stainless at Rockwell C28-38 hardness. Note that Metallics states dimensions for #9 diameter screws are independent of ASME B18.6.4, which does not affect this #10 size.
4) Are these screws Buy American and ARRA compliant for a government or public works job?
Metallics lists the JDS181SS tapping screw as both Buy American compliant and ARRA compliant, with country of origin recorded as multiple. If your specification requires a single named origin, ask before you submit.
5) How are these #10 stainless tapping screws packaged and what is the smallest quantity I can order?
They ship in a jar, with a minimum of 100 count. The filled jar weighs 0.67 lbs and measures 3 in by 3 in by 2.15 in, which matters if you are stocking a van drawer or a bin shelf. Metallics also makes other sizes and quantities available by request.
