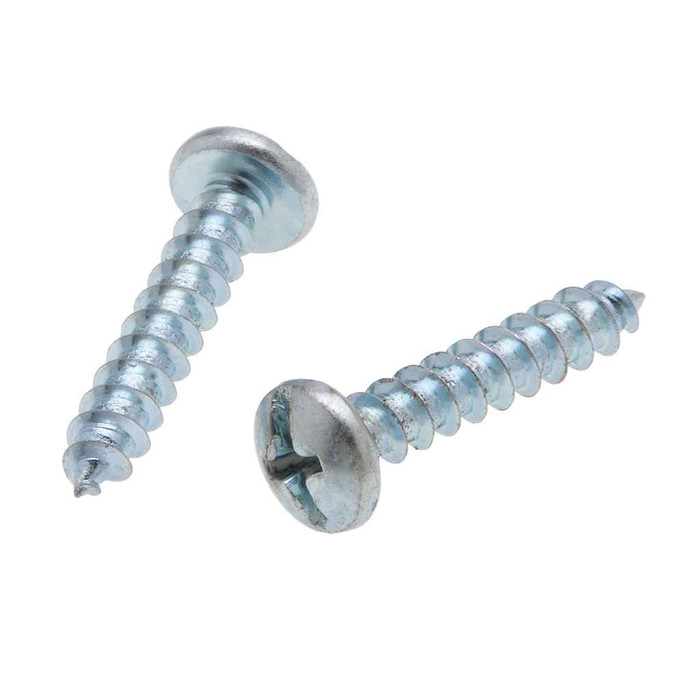

Metallics JTS49 10 x 3/8 in. Pan Head Phillips Sharp Point Tapping Screws - Steel Zinc - 100qty

Metallics JTS49 10 x 3/8 in. Pan Head Phillips Sharp Point Tapping Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JTS49
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.10
$0.10
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10 x 3/8 in. Pan Head Phillips Sharp Point Tapping Screws - Steel Zinc - 100qty

  • Features

    • 10 Diameter, 3/8" Length
    • Steel Zinc Material
    • Pan head with Phillips Drive

  • Additional Notes

    • Other sizes and quantities available by request | Dimensions for #9 diameter are independent of ASME B18.6.4

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-2013
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Height:
0.122 - 0.133 in.
Fastener Head Type:
Pan
Fastener Head Width:
0.357 - 0.373 in.
Fastener Length:
8-Mar
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Hardness:
Rockwell C28 - 38
Language Code:
EN
Material Standard:
AISI 1016 - 1024
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Pan_Slot-Phil-Combo_Self_Tap.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Phillips Recess Depth:
0.124
Phillips Recess Diameter:
0.186 - 0.199
Phillips Recess Width:
0.031
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.44 lbs
Product Width:
3 in
Screw Point Type:
Gimlet Point
Sub Division:
Electrical-E H2
Thread Per Inch:
12
Thread Standard:
ASME B18.6.4
Torsional Strength:
48 lb-in minimum
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Type A Tapping Screw
Type2:
Type A Tapping Screw
Series:
JTS
Product Finish:
Zinc
Product Details:
Type A Tapping Screw
Product Material:
Steel Zinc

Metallics JTS49 – Frequently Asked Questions

1) Do the Metallics JTS49 screws meet Buy American requirements for a federal job?
No. The JTS49 is not Buy American compliant and not ARRA compliant, and origin is listed as multiple countries. If your spec carries a domestic sourcing clause, this screw will not satisfy it.
2) What driver bit do I need for the Metallics JTS49 #10 tapping screws?
A #2 Phillips bit drives the JTS49. The recess is cut to a 0.186 to 0.199 inch diameter and 0.124 inch depth, so a #1 bit will cam out and a #3 will ride high in the recess and chew the cross.
3) How much material thickness can a 3/8 inch long #10 tapping screw actually hold?
Grip is short. At 3/8 inch overall length under a pan head, there is only enough thread to pass through thin sheet and still engage a few turns, so it suits attaching device straps, plates, and covers to boxes and light gauge steel. If you are going through two layers of heavier stock or into a stud, step up to a longer screw in the same JTS series.
4) Is the pan head on these screws low enough to sit under a cover plate?
Head height runs 0.122 to 0.133 inch with a head width of 0.357 to 0.373 inch, built to ASME B18.6.3-2013. That is a standard #10 pan profile, so it will stand proud of the surface by roughly an eighth of an inch. If you need the head flush, a flat head countersunk screw is the right call instead.
5) Are zinc plated tapping screws like these okay outdoors or in a damp location?
The JTS49 is steel with a zinc plating, which is a dry indoor finish. It handles general interior electrical, plumbing, and HVAC work fine, but in wet, exterior, or corrosive locations zinc will bloom and rust. Use stainless there.
6) How are the Metallics JTS49 screws packaged and what is the minimum order?
They come in a jar of 100, and 100 is the order minimum. The jar runs about 0.44 lbs.
