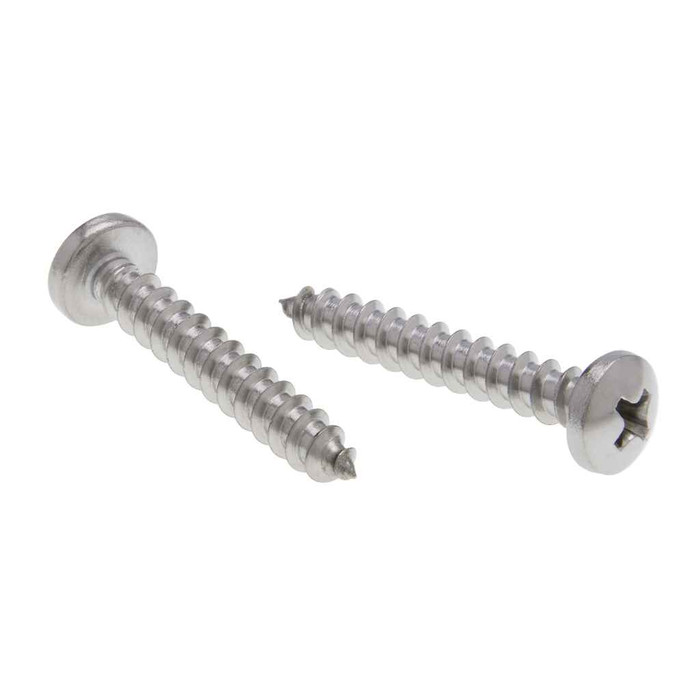

Metallics JSTSP20 10 x 5/8 in. Pan Head Phillips Tapping Screws - 18-8 Stainless - 100qty

Metallics JSTSP20 10 x 5/8 in. Pan Head Phillips Tapping Screws - 18-8 Stainless - Each

(No reviews yet) Write a Review

Model: JSTSP20
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.61
$0.61
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10 x 5/8 in. Pan Head Phillips Tapping Screws - 18-8 Stainless - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | Dimensions for #9 diameter are independent of ASME B18.6.4

  • Features

    • Pan head with Slotted Drive
    • Fastening stainless steel parts to aluminum or steel can cause a type of corrosion known as a galvanic couple in some environments.
    • 18-8 Stainless Material
    • 10 Diameter, 5/8" Length

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-2013
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Height:
0.122 - 0.133 in.
Fastener Head Type:
Pan
Fastener Head Width:
0.357 - 0.373 in.
Fastener Length:
8-May
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Language Code:
EN
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Pan_Slotted_Phillips_Self_Tap_SS.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Phillips Recess Depth:
0.124
Phillips Recess Diameter:
0.186 - 0.199
Phillips Recess Width:
0.031
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.61 lbs
Product Width:
3 in
Screw Point Type:
Gimlet Point
Sub Division:
Electrical-E H2
Thread Per Inch:
12
Thread Standard:
ASME B18.6.4
Torsional Strength:
48 lb-in minimum
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Type A Tapping Screw
Type2:
Type A Tapping Screw
Series:
JSTSP
Product Details:
Type A Tapping Screw
Product Material:
18-8 Stainless

Metallics JSTSP20 – Frequently Asked Questions

1) Do I need to pre-drill for a #10 Type A tapping screw, or will it start on its own?
The JSTSP20 is a Type A tapping screw with a gimlet point, meaning it has a sharp pointed tip that starts itself in thin sheet metal, and at 12 threads per inch it forms its own thread as it drives. Type A is intended for thin-gauge sheet and similar soft material, not for thick steel plate; for anything heavy you want a pilot hole or a different point type.
2) Can I use these stainless screws to fasten into aluminum electrical enclosures?
You can, but watch the dielectric pairing. Metallics states that fastening stainless steel parts to aluminum or steel can create a galvanic couple and corrode in some environments. Outdoors, in damp vaults, or in coastal air, isolate the joint or use a fastener that matches the base metal. Indoors and dry, 18-8 stainless on aluminum is common practice.
3) Will these Metallics tapping screws satisfy a Buy American or ARRA requirement on a federal job?
No. The JSTSP20 is not Buy American compliant and not ARRA compliant, with country of origin listed as multiple. If your project carries domestic sourcing language, these screws won't clear it and you'll need a domestically produced fastener.

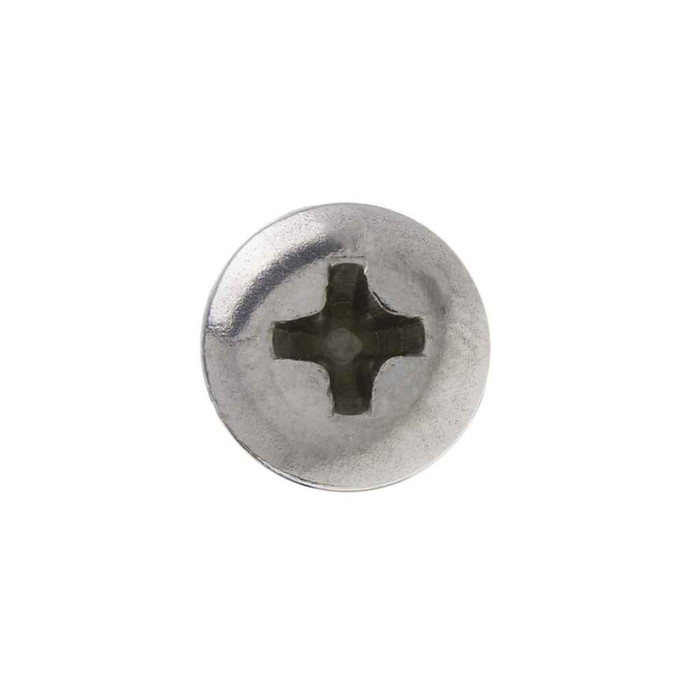

4) What size driver bit do I need for the Metallics JSTSP20 tapping screws?
A #2 Phillips bit drives the JSTSP20. The recess is a Phillips at 0.124 in. depth and 0.186 to 0.199 in. diameter, so a #2 seats fully; a #1 will cam out and a #3 won't bottom in the recess.
5) How much torque will a #10 18-8 stainless pan head tapping screw take before it snaps?
The JSTSP20 carries a minimum torsional strength of 48 lb-in. Stainless is softer than hardened carbon steel, so if you're running these with an impact driver, back the clutch down. Snapped heads in a panel are the usual result of driving stainless at full trigger.
6) Do these screws meet a dimensional standard I can put on a submittal?
Head dimensions are built to ASME B18.6.3-2013 and the thread to ASME B18.6.4. Note Metallics' own caveat: dimensions for #9 diameter are independent of ASME B18.6.4. The JSTSP20 is a #10 diameter, so it falls inside the thread standard.
7) Are the Metallics JSTSP20 screws sold loose or in a package, and is there a minimum order?
They come in a jar, with a minimum of 100 per jar. So this is a stock-the-van or stock-the-shop quantity rather than a handful of pieces.
8) What trades actually use #10 x 5/8 in. stainless Type A tapping screws?
Metallics lists these for the electrical, plumbing, heating and air conditioning industries. Typical use is mounting straps, plates, boxes and sheet metal duct or panel work where you want corrosion resistance from the 18-8 stainless rather than a plated carbon screw.
