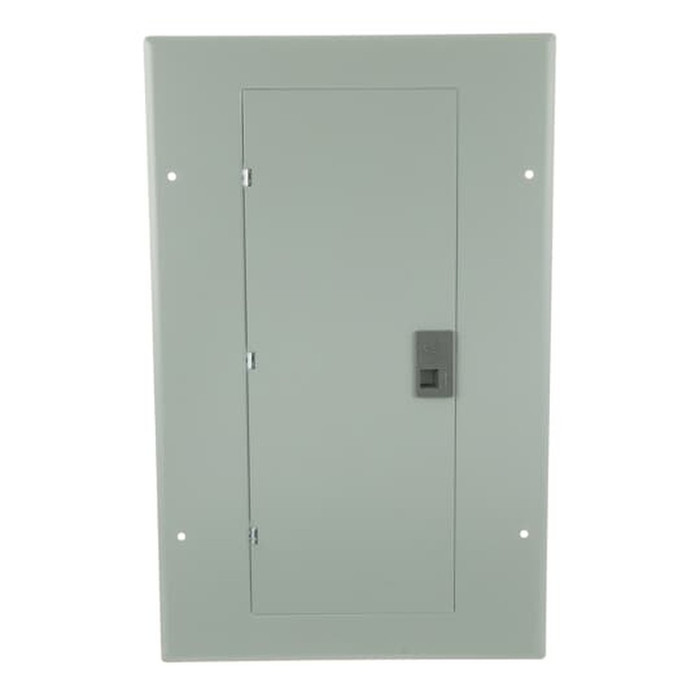

ABB TM12410C 100A 12-Circuit Main Breaker Load Center, 3P4W 208Y/120V

ABB TM12410C 100A 12-Circuit Main Breaker Load Center, 3P4W 208Y/120V

(No reviews yet) Write a Review

Model: TM12410C

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,729.91
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

ABB TM12410C 100A 12-Circuit Main Breaker Load Center, 3P4W 208Y/120V

The ABB TM12410C main breaker load center arrives with a factory-installed main breaker for a fast, convenient install, giving the user a single point to stop the flow of electricity and shut off all power in the residence. This load center is built with a 100 A bus ampere rating, 12 spaces for 1" breakers, and supports a 3-phase, 4-wire (3P4W) 208Y/120V ac load regulation, all housed in a combination/flush indoor enclosure.

Key Features

  • Main Breaker Convenience: Factory-installed main breaker allows the user to stop the flow of electricity and shut off all power in the residence from a single point.
  • Breaker Space Capacity: 12 spaces for 1" breakers for flexible circuit arrangement in residential or light commercial installations.
  • Amperage Rating: 100 A bus ampere rating for reliable power distribution.
  • Phase & Wiring Configuration: 3-phase, 4-wire (3P4W) design with 208Y/120V ac load regulation.
  • Enclosure Type: Combination/flush indoor enclosure suited for interior panel installations.
  • Feed Location: Top-feed configuration (Number Of Feeders: Top) for straightforward conduit routing.
  • Interrupt Rating: Rated 22 per manufacturer specification, with a 10K IC designation noted for this configuration.

Certifications & Compliance

  • UL Listed (Standard: UL)

Technical Specifications

  • Number Of Feeders: Top
  • Interrupt Rating: 22
  • Country of Origin: UKN
  • Standard: UL

Typical Applications

  • Residential Electrical Service Panels
  • Light Commercial Power Distribution
  • Main Service Disconnect Installations
  • New Construction and Panel Replacement Projects

Why ABB?

ABB engineers the TM12410C main breaker load center for dependable, code-compliant power distribution, combining a UL-listed 100 A bus rating with a factory-installed main breaker for streamlined installation. The 3-phase, 4-wire 208Y/120V configuration and 12-space capacity make it a practical choice for electricians who need a reliable indoor combination/flush enclosure backed by ABB's standard of electrical construction quality.

Manufacturer Resources

Spec Sheet

Product Specs

Product Type:
Main Breaker Load Center
Amperage Rating:
100A
Voltage Rating:
208Y/120V
Standards:
UL
Configuration:
3-Phase, 4-Wire
Department:
Electrical
Product Group:
Wiring Devices
Product Subgroup:
Panelboards & Load Centers

ABB TM12410C – Frequently Asked Questions

1) Will an ABB TM12410C load center work on a single-phase 120/240V residential service?
No. The TM12410C is a 3-phase, 4-wire panel rated 208Y/120V. On a standard single-phase 120/240V service it is the wrong panel. Use it only where you have a wye 208Y/120V three-phase feed, typically a commercial building or a multi-family service, where you get 120V line-to-neutral and 208V line-to-line.
2) How many breakers can I actually fit in the ABB TM12410C panel?
Twelve spaces sized for 1 inch breakers. On a three-phase panel those spaces get consumed fast: a single 3-pole breaker eats three of the twelve, so four 3-pole circuits fill the can. Plan the schedule before you order, because there is no room to grow past 12 spaces.
3) Does the ABB TM12410C come with the main breaker, or do I order it separately?
The main breaker is factory installed, so it ships as a complete main breaker load center at a 100A bus rating. You still buy the branch breakers separately. That factory main gives you one point to kill all power at the panel, which is what you need when it serves as the service disconnect.
4) Can the TM12410C be surface mounted, or is it flush only?
It is a combination flush indoor enclosure, so it is intended for interior installation, recessed into the wall. Being an indoor can, it is not for exterior or wet locations. If the panel is going on an outside wall or in an unprotected area, you need a rated outdoor enclosure instead.
5) Which way does the feed enter the ABB TM12410C?
Top feed. The conduit and service conductors come in at the top of the enclosure, which matters when you are laying out the wall and deciding whether your feeder drops from above or comes up from below. A bottom-fed run means extra conduit to bring the feeder over the top of the can.
6) Is the ABB TM12410C UL listed for a main service panel?
UL Listed is the standard called out for the TM12410C, and it is built as a main breaker load center, which is the configuration used for main service disconnect installations and panel replacements. Confirm your local jurisdiction's service requirements for the specific application.
7) What is the short circuit interrupting rating on the TM12410C?
A 10K IC designation is noted for this configuration. That is the figure your engineer checks against the available fault current at the panel location. If the calculated fault current at that point in the system exceeds it, this panel is not the right choice for that spot.
8) What is the exact part number for the ABB 100A 12-space three-phase main breaker panel?
ABB TM12410C. That single number covers the 100A bus, 12 breaker spaces, factory main breaker, and the 3-phase 4-wire 208Y/120V rating in a flush indoor can. Quote it as-is; the model is the only ordering option on it.
