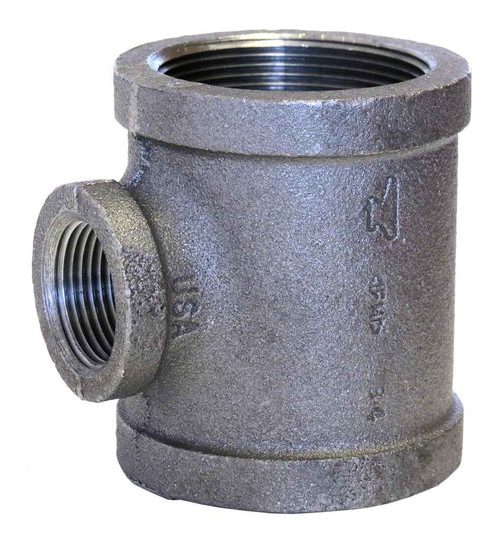

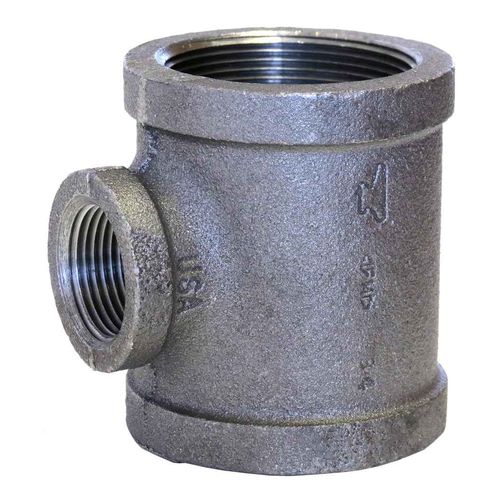

11/2X11/2X3/4 XH BLK MI TEE
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- FPT
- End Conn Size 3:
- FPT
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 1.5
- Size 2:
- 1.5
- Size 3:
- 0.75
- Strength:
- XH
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Finish:
- Black
- Product Material:
- Malleable Iron
- Product Weight:
- 2.46 lbs
ASC Engineered Solutions 310524608 – Frequently Asked Questions
1) What size branch does the ASC Engineered Solutions 1-1/2 x 1-1/2 x 3/4 black malleable iron tee take?
The run is 1-1/2 inch on both ends and the branch reduces to 3/4 inch. All three openings are female pipe thread (FPT), so it threads directly onto male-threaded pipe nipples without any adapter. Use it where you need to pull a 3/4 inch takeoff off a 1-1/2 inch line.
2) Will this malleable iron tee thread onto standard NPT pipe?
Yes. The threads are cut to ASME B1.20.1, which is the standard NPT taper thread spec, so it mates with any standard threaded black or galvanized steel pipe and nipples. All three ports are female.
3) Is this ASC black iron tee UL Listed and FM Approved for sprinkler work?
Yes, the fitting carries UL/FM recognition, which is what fire protection contractors need for threaded sprinkler piping. It is black malleable iron, the usual material for wet-system branch lines.
4) Can I use a black malleable iron tee on a potable water line?
No. Black malleable iron is for gas, fire protection, steam, and non-potable service. Black fittings rust in potable water; for domestic water you want galvanized, copper, or CPVC instead. This tee's black finish tells you what service it is meant for.
5) What is the material spec on this ASC malleable iron tee?
The casting conforms to ASTM A-197, the standard for cupola malleable iron used in threaded pipe fittings. Body dimensions follow ASME B16.3. The fitting weighs 2.46 lbs, which matters if you are calculating hanger spacing or load on a threaded run.
6) Do I need pipe dope or tape with this threaded iron tee?
Yes, you supply the sealant. The tee ships as a bare casting with tapered NPT female threads on all three ports, so the joint is sealed with thread sealant or PTFE tape rated for your service. Nipples, unions, and sealant are all separate.
