Metallics TXW122 12-14 x 2 in....
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.80
$1.70

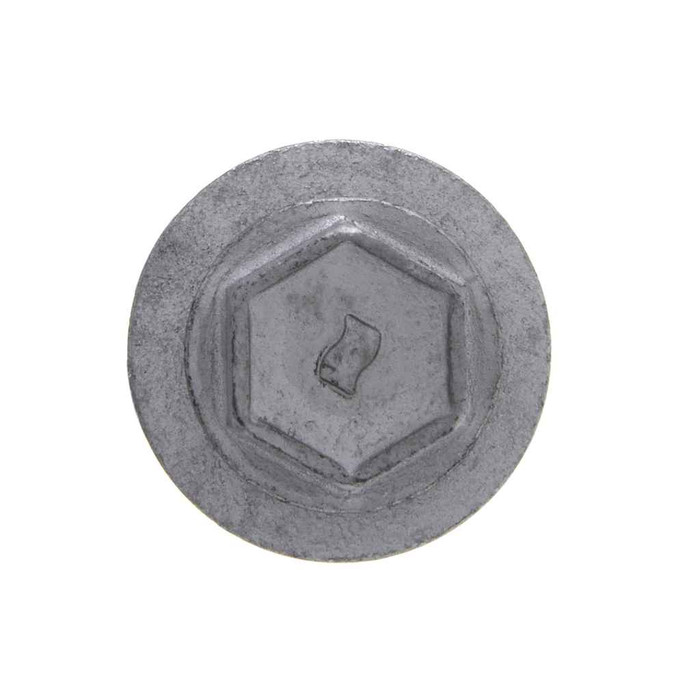

Metallics TXW122 12-14 x 2 in. 5/16 Hex Head Self-Drilling Screws with Bonded Sealing Washer - #3 Drill Point - All-Weather - 100qty

Metallics TXW122 12-14 x 2 in. 5/16 Hex Head Self-Drilling Screws with Bonded Sealing Washer - #3 Drill Point - All-Weather - Each

(No reviews yet) Write a Review

Model: TXW122
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.80
$1.70
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
12-14 x 2 in. 5/16 Hex Head Self-Drilling Screws with Bonded Sealing Washer - #3 Drill Point - All-Weather - 100qty

  • Features

    • 12-14 Diameter, 2" Length
    • Includes Bonded Sealing Washer for a weather-tight seal
    • All-Weather Coating
    • 5/16 Hex Head with Hex Drive
    • #3 Drill Point

  • Additional Notes

    • Economical fasteners for applications requiring a weather-tight seal|other sizes and quantities available by request

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
C
Buy American Compliant:
C
Country Of Origin:
United States
Dimensional Standard:
ASME B18.6.3-2010
Division:
Electrical H1
Drill Point Size:
#3
Drive Type:
Hex
Fastener Head Height:
0.139 - 0.155 in.
Fastener Head Type:
Hex
Fastener Head Width:
0.305 - 0.312 in.
Fastener Length:
2
Hardness:
Rockwell C32-40
Language Code:
EN
Material Standard:
AISI 1016 - 1024
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Panel Thickness:
0.110 - 0.210 IN
Product Group:
Fasteners
Product Height:
5.75 in
Product Length:
3.5 in
Product Weight:
2.06 lbs
Product Width:
3.5 in
Screw Point Type:
Drill Point
Slot Depth:
0.077 - 0.093
Slot Width:
0.056 - 0.067
Sub Division:
Electrical-E H2
Thread Per Inch:
14
Thread Standard:
SAE J78 - 2013
Torsional Strength:
92 lb-in minimum
Washer Od:
0.398 - 0.432 in.
Washer Thickness:
0.022 - 0.039 IN
Width Across Corners:
0.34
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Type BSD Self-Drilling Screw
Type2:
Type BSD Self-Drilling Screw
Series:
TXW
Product Finish:
Zinc/All-Weather Coating
Product Details:
Type BSD Self-Drilling Screw
Product Material:
All-Weather

Metallics TXW122 – Frequently Asked Questions

1) Does the TXW122 screw seal against water, or do I need a separate washer?
No separate washer needed. Each TXW122 ships with a bonded sealing washer already on the screw, 0.398 to 0.432 in. outside diameter and 0.022 to 0.039 in. thick, so the washer compresses under the hex head to make the weather-tight seal as you drive it.
2) Does the Metallics TXW122 screw meet Buy American and ARRA requirements for a government job?
Yes. The TXW122 is listed as both Buy American compliant and ARRA compliant, with country of origin United States. That is the documentation a federal, state, or institutional procurement file normally needs for fasteners.
3) Is the TXW122 coating good enough for exterior roofing and siding work?
It carries a zinc all-weather coating, which is what the TXW series is built for: exterior panel and flashing work where the fastener is exposed to weather. Paired with the bonded sealing washer, the intended use is weather-tight exterior attachment rather than dry interior framing.
4) Will the TXW122 hold up to an impact driver without snapping the head off?
Torsional strength is 92 lb-in minimum with a case hardness of Rockwell C32-40, made from AISI 1016-1024 steel. That is adequate for impact driving through the rated 0.110 to 0.210 in. panel, but set your impact to a lower torque setting so you stop at washer compression instead of over-driving and shearing.
5) What standards does this 12-14 self-drilling screw conform to for spec submittals?
Dimensions conform to ASME B18.6.3-2010 and threads to SAE J78-2013, with material per AISI 1016-1024. It is a Type BSD self-drilling screw, 12-14 diameter, 14 threads per inch, 2 in. long.
6) Is a 2 inch screw long enough for my panel over purlin assembly?
At 2 in. overall length, the TXW122 leaves plenty of thread past a panel in the 0.110 to 0.210 in. range, so it suits attaching through an insulation layer, spacer, or standoff into steel substrate rather than metal-to-metal contact. For a direct panel-to-purlin lap with nothing between, a shorter length in the same 12-14 thread is the cleaner choice.
7) Do I have to pre-drill a pilot hole for these screws?
No. The #3 drill point cuts its own hole through steel in the 0.110 to 0.210 in. range, so you drive straight into the substrate in one pass. Keep steady pressure until the point breaks through, then ease off so the bonded washer seats without being crushed.
8) How many Metallics TXW122 screws come in a jar, and is there an order minimum?
They are packed in a jar with a minimum order of 100 count. Jar weight is listed at 2.06 lbs.
