Metallics TXW1234 12-14 x 3/4 ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.66
$0.66

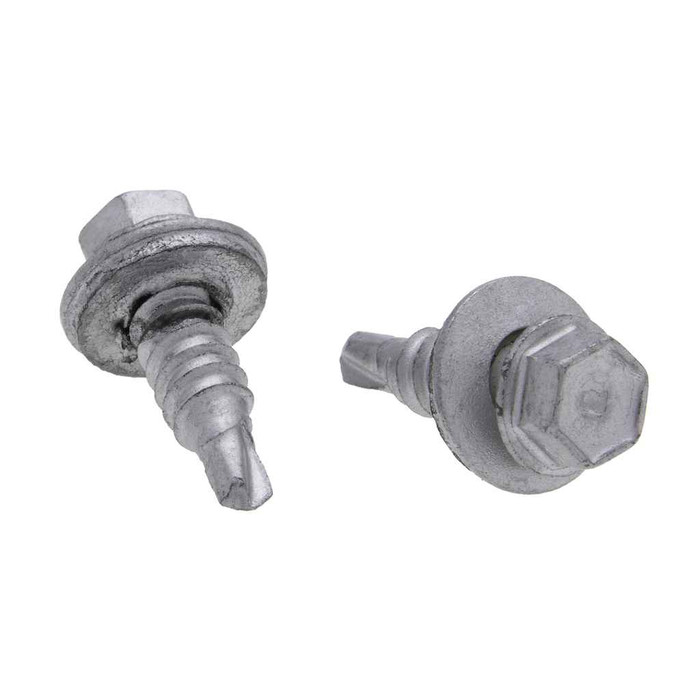

Metallics TXW1234 12-14 x 3/4 in. 5/16 Hex Head Self-Drilling Screws with Bonded Sealing Washer - #3 Drill Point - All-Weather - 50qty

Metallics TXW1234 12-14 x 3/4 in. 5/16 Hex Head Self-Drilling Screws with Bonded Sealing Washer - #3 Drill Point - All-Weather - Each

(No reviews yet) Write a Review

Model: TXW1234
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.66
$0.66
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
12-14 x 3/4 in. 5/16 Hex Head Self-Drilling Screws with Bonded Sealing Washer - #3 Drill Point - All-Weather - 50qty

  • Features

    • #3 Drill Point
    • All-Weather Coating
    • Includes Bonded Sealing Washer for a weather-tight seal
    • 5/16 Hex Head with Hex Drive
    • 12-14 Diameter, 3/4" Length

  • Additional Notes

    • Economical fasteners for applications requiring a weather-tight seal|other sizes and quantities available by request

Manufacturer Resources

Product Specs

Minimum Purchase:
50 units
Arra Compliant:
C
Buy American Compliant:
C
Coating Standard:
ASTM B117
Dimensional Standard:
ASME B18.6.3-2010
Division:
Electrical H1
Drill Point Size:
#3
Drive Type:
Hex
Fastener Head Height:
0.139 - 0.155 in.
Fastener Head Type:
Hex
Fastener Head Width:
0.305 - 0.312 in.
Fastener Length:
4-Mar
Field Application:
Weather Tight Seal
Hardness:
Rockwell C32-40
Language Code:
EN
Material Standard:
AISI 1016 - 1024
Order Minimum Imperial:
50
Order Minimum Uom Imperial:
EA
Pack Type:
Jar
Panel Thickness:
0.110 - 0.210 IN
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.62 lbs
Product Width:
3 in
Screw Point Type:
Drill Point
Slot Depth:
0.077 - 0.093
Slot Width:
0.056 - 0.067
Sub Division:
Electrical-E H2
Thread Per Inch:
14
Thread Standard:
SAE J78 - 2013
Torsional Strength:
92 lb-in minimum
Washer Od:
0.398 - 0.432 in.
Washer Thickness:
0.022 - 0.039 IN
Width Across Corners:
0.34
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Type BSD Self-Drilling Screw
Type2:
Type BSD Self-Drilling Screw
Series:
TXW
Product Finish:
Zinc/All-Weather Coating
Product Details:
Type BSD Self-Drilling Screw
Product Material:
All-Weather

Metallics TXW1234 – Frequently Asked Questions

1) How thick a metal substrate will the Metallics TXW1234 self-drilling screw go through?
The #3 drill point on the TXW1234 is rated for panel thickness of 0.110 to 0.210 inches. That covers heavy gauge steel purlins and structural framing. Thinner decking usually calls for a #2 or #1 point instead, since a #3 point can spin out before the threads engage in light gauge.
2) Does the TXW1234 screw come with the rubber sealing washer, or do I buy those separately?
The bonded sealing washer is already assembled on each screw, so nothing extra is needed for a weather-tight seal. The washer outside diameter runs 0.398 to 0.432 inches and the washer thickness 0.022 to 0.039 inches, so it compresses under the hex head against the panel.
3) Will these hold up outdoors on a roof or exterior metal panel?
Yes. The TXW1234 carries a zinc/all-weather coating tested to ASTM B117 salt spray, and the bonded washer seals the hole against water. That combination is what makes it an exterior panel and roofing fastener rather than an indoor-only screw.
4) How many Metallics TXW1234 screws come in a pack and how are they packaged?
They ship in a jar with a 50 piece minimum order quantity, sold each. Jar packaging keeps them together in a service truck or on a MRO shelf instead of loose in a box.
5) Are these screws strong enough not to snap off when driven with an impact driver?
The TXW1234 is specified at 92 lb-in minimum torsional strength with a case hardness of Rockwell C32-40, made from AISI 1016-1024 steel. That is enough to drill and tap heavy gauge steel, but back off the clutch on an impact: over-driving past seating is the usual cause of a snapped head, not the screw's rating.
6) What thread pitch and spec do these 12-14 self-drilling screws meet?
14 threads per inch, to SAE J78-2013 for self-drilling tapping screws, with head dimensions to ASME B18.6.3-2010. If a drawing calls out a Type BSD self-drilling screw to those standards, the TXW1234 meets the callout.
7) Do these Metallics screws qualify for a federally funded or Buy American job?
The TXW1234 is flagged both ARRA compliant and Buy American compliant in the manufacturer's data, which is what procurement on public and federally funded work typically asks for on fasteners.
