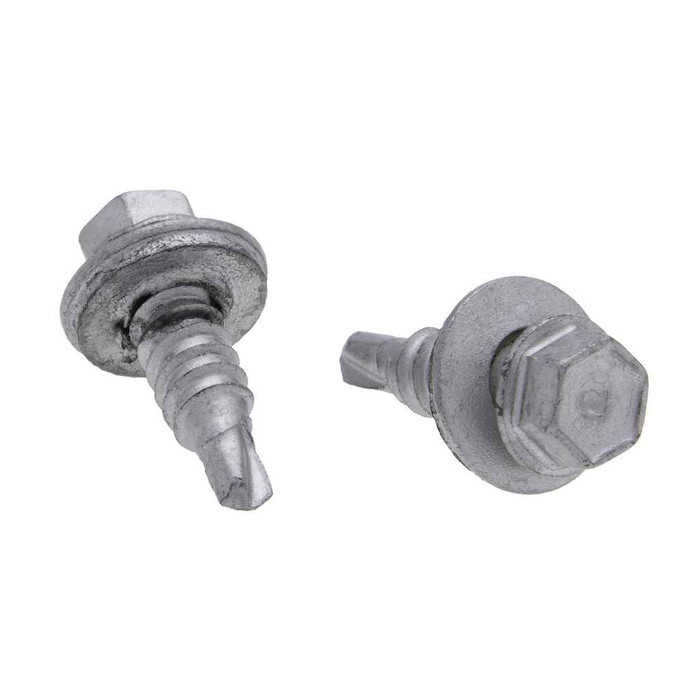

Metallics TXW1034 10-16 x 3/4 in. 5/16 Hex Head Self-Drilling Screws with Bonded Sealing Washer - #3 Drill Point - All-Weather - 100qty

Metallics TXW1034 10-16 x 3/4 in. 5/16 Hex Head Self-Drilling Screws with Bonded Sealing Washer - #3 Drill Point - All-Weather - Each

(No reviews yet) Write a Review

Model: TXW1034
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.56
$0.56
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10-16 x 3/4 in. 5/16 Hex Head Self-Drilling Screws with Bonded Sealing Washer - #3 Drill Point - All-Weather - 100qty

  • Additional Notes

    • Economical fasteners for applications requiring a weather-tight seal|other sizes and quantities available by request

  • Features

    • #3 Drill Point
    • 5/16 Hex Head with Hex Drive
    • Includes Bonded Sealing Washer for a weather-tight seal
    • All-Weather Coating
    • 10-16 Diameter, 3/4" Length

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
C
Buy American Compliant:
C
Country Of Origin:
United States
Dimensional Standard:
ASME B18.6.3-2010
Division:
Electrical H1
Drill Point Size:
#3
Drive Type:
Hex
Fastener Head Height:
0.105 - 0.12 in.
Fastener Head Type:
Hex
Fastener Head Width:
0.305 - 0.312 in.
Fastener Length:
4-Mar
Hardness:
Rockwell C32-40
Language Code:
EN
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Panel Thickness:
0.110 - 0.175 IN
Product Group:
Fasteners
Product Height:
2.7 in
Product Length:
3 in
Product Weight:
0.41 lbs
Product Width:
3 in
Screw Point Type:
Drill Point
Slot Depth:
0.057 - 0.072
Slot Width:
0.05 - 0.06
Sub Division:
Electrical-E H2
Thread Per Inch:
16
Thread Standard:
SAE J78 - 2013
Torsional Strength:
61 lb-in minimum
Washer Od:
0.384 - 0.414 in.
Washer Thickness:
0.019 - 0.031 IN
Width Across Corners:
0.34
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Type BSD Self-Drilling Screw
Type2:
Type BSD Self-Drilling Screw
Series:
TXW
Product Finish:
Zinc/All-Weather Coating
Product Details:
Type BSD Self-Drilling Screw
Product Material:
All-Weather

Metallics TXW1034 – Frequently Asked Questions

1) Will the bonded sealing washer on the TXW1034 give me a weather-tight seal on exterior metal?
Yes. The screw ships with a bonded sealing washer, 0.384 to 0.414 inch outside diameter and 0.019 to 0.031 inch thick, that compresses under the hex head to seal the hole. Paired with the zinc and all-weather coating, it is built for outdoor metal work where water has to stay out of the penetration. Drive it until the washer just flattens against the panel, no further.
2) Do these screws meet Buy American and ARRA requirements for a federal or public project?
Yes. The TXW1034 is flagged both Buy American compliant and ARRA compliant, with country of origin the United States. That is the documentation a government, school district, or institutional procurement office typically needs on fasteners for a funded job.
3) Is a 3/4 inch long screw long enough for attaching to metal stud or light structural steel?
At 3/4 inch overall length, the TXW1034 leaves limited thread past the panel. It is sized for fastening sheet or trim directly to steel in the 0.110 to 0.175 inch range, where the drill point consumes part of the length cutting through. If you are stacking two panels or going through a thicker substrate, step up to a longer length in the same TXW series rather than forcing this one.
4) Is the TXW1034 strong enough to drive into steel without snapping heads?
It is case hardened to Rockwell C32-40 with a minimum torsional strength of 61 lb-in, which is what lets the point cut steel without shearing the shank. Run it at drill speed with steady pressure and back off the trigger as the washer seats, impact drivers are the usual cause of twisted-off heads on self-drillers.
5) How many Metallics TXW1034 screws come in a pack and how are they packaged?
They sell in a jar of 100 count, which is also the order minimum. If you need a different size or a larger quantity for a bigger run, other sizes and quantities are available by request.
6) What standards do these 10-16 self-drilling screws conform to?
Dimensions follow ASME B18.6.3-2010 and the thread follows SAE J78-2013, the standard for steel self-drilling tapping screws. The thread is 16 threads per inch on a #10 diameter, so it matches any spec written for a 10-16 self-driller.
7) Is the TXW1034 a Type BSD screw, and what does that mean for the hole it makes?
Yes, it is a Type BSD self-drilling screw, meaning the point drills and taps its own hole in one pass, no pre-drilling and no separate tap. The BSD designation is the self-drilling point class, and here it comes in the #3 point size for mid-gauge steel.
