Metallics TXW10112 10-16 x 1-1/2 in. 5/16 Hex Head Self-Drilling Screws with Bonded Sealing Washer - #3 Drill Point - All-Weather - 100qty

Metallics TXW10112 10-16 x 1-1/2 in. 5/16 Hex Head Self-Drilling Screws with Bonded Sealing Washer - #3 Drill Point - All-Weather - Each

(No reviews yet) Write a Review

Model: TXW10112
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.66
$0.66
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10-16 x 1-1/2 in. 5/16 Hex Head Self-Drilling Screws with Bonded Sealing Washer - #3 Drill Point - All-Weather - 100qty

  • Additional Notes

    • Economical fasteners for applications requiring a weather-tight seal|other sizes and quantities available by request

  • Features

    • #3 Drill Point
    • All-Weather Coating
    • 10-16 Diameter, 1-1/2" Length
    • Includes Bonded Sealing Washer for a weather-tight seal

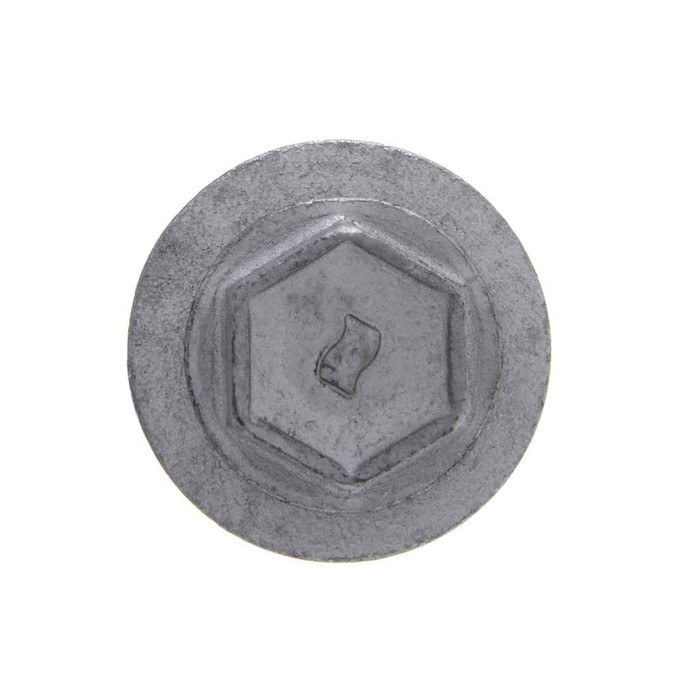

    • 5/16 Hex Head with Hex Drive

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
C
Buy American Compliant:
C
Country Of Origin:
United States
Dimensional Standard:
ASME B18.6.3-2010
Division:
Electrical H1
Drill Point Size:
#3
Drive Type:
Hex
Fastener Head Height:
0.105 - 0.12 in.
Fastener Head Type:
Hex
Fastener Head Width:
0.305 - 0.312 in.
Fastener Length:
1/1/02
Hardness:
Rockwell C32-40
Language Code:
EN
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Panel Thickness:
0.110 - 0.175 IN
Product Group:
Fasteners
Product Height:
3.6 in
Product Length:
3 in
Product Weight:
0.79 lbs
Product Width:
3 in
Screw Point Type:
Drill Point
Slot Depth:
0.057 - 0.072
Slot Width:
0.05 - 0.06
Sub Division:
Electrical-E H2
Thread Per Inch:
16
Thread Standard:
SAE J78 - 2013
Torsional Strength:
61 lb-in minimum
Washer Od:
0.384 - 0.414 in.
Washer Thickness:
0.019 - 0.031 IN
Width Across Corners:
0.34
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Type BSD Self-Drilling Screw
Type2:
Type BSD Self-Drilling Screw
Series:
TXW
Product Finish:
Zinc/All-Weather Coating
Product Details:
Type BSD Self-Drilling Screw
Product Material:
All-Weather

Metallics TXW10112 – Frequently Asked Questions

1) Will this screw seal a roof or wall panel penetration without extra sealant?
Yes. The 10-16 x 1-1/2 in. screw ships with a bonded sealing washer, 0.384 to 0.414 inch outside diameter and 0.019 to 0.031 inch thick, that compresses under the hex head to close the hole. Combined with the zinc plus all-weather coating it is intended for exterior, weather-tight penetrations without separate caulking.
2) Are these screws Buy American and ARRA compliant for a government or public project?
Yes on both. The TXW10112 is flagged Buy American compliant and ARRA compliant, with country of origin United States. That is the documentation a public agency, school district, or federally funded job typically asks for on fasteners.
3) Do I need to pre-drill before installing these screws into steel?
No pre-drilling. This is a Type BSD self-drilling screw with a #3 drill point, so the point cuts its own hole and the 16 threads per inch tap as it goes, in one pass, within the 0.110 to 0.175 inch panel thickness range it is rated for.
4) How many Metallics TXW10112 screws come in a pack and how are they packaged?
They come 100 to a jar, and 100 count is the order minimum. Jar packaging keeps the bonded washers from getting chewed up in a gang box.
5) What standards do these 10-16 self-drilling screws meet?
Dimensions follow ASME B18.6.3-2010 and the thread follows SAE J78-2013, the self-drilling tapping screw standard. Case hardness is Rockwell C32-40 and torsional strength is 61 lb-in minimum, which is the drive torque figure to compare against your tool setting so you don't snap heads.
6) Can I use these outdoors long term, or is the coating only for shipping protection?
They are made for exterior service. Finish is zinc with an all-weather coating and the material is listed as all-weather, which is why the bonded washer version exists at all, for weather-tight penetrations on roofing, siding, and outdoor electrical enclosures.
7) How much total material can a 1-1/2 inch long self-drilling screw fasten together?
The TXW10112 runs 10-16 diameter by 1-1/2 inch length under the head, so the usable grip is that 1-1/2 inch minus the drill point and the threads needed to engage the base steel (0.110 to 0.175 inch of panel). Plan on sandwiching roughly an inch of standoff, insulation, or panel rib above the steel it anchors into.
