Metallics TXW12112 12-14 x 1-1...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.70
$0.70

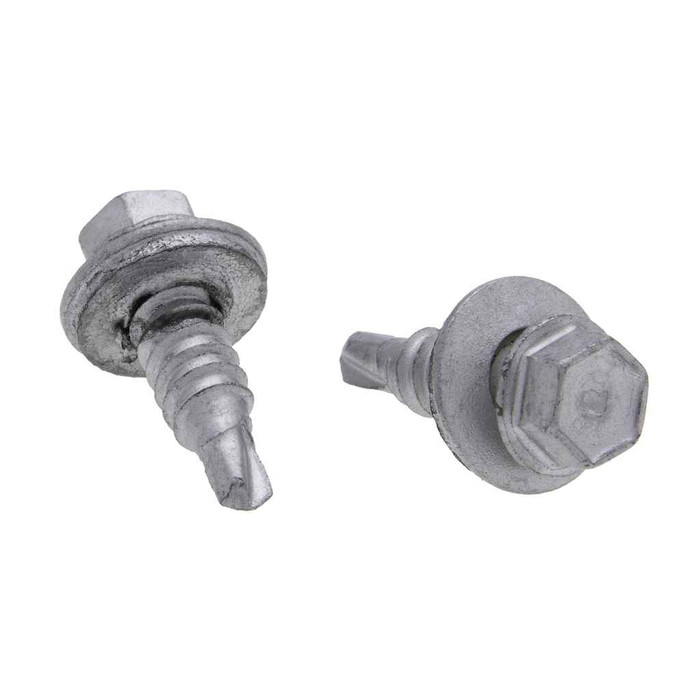

Metallics TXW12112 12-14 x 1-1/2 in. 5/16 Hex Head Self-Drilling Screws with Bonded Sealing Washer - #3 Drill Point - All-Weather - 100qty

Metallics TXW12112 12-14 x 1-1/2 in. 5/16 Hex Head Self-Drilling Screws with Bonded Sealing Washer - #3 Drill Point - All-Weather - Each

(No reviews yet) Write a Review

Model: TXW12112
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.70
$0.70
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
12-14 x 1-1/2 in. 5/16 Hex Head Self-Drilling Screws with Bonded Sealing Washer - #3 Drill Point - All-Weather - 100qty

  • Additional Notes

    • Economical fasteners for applications requiring a weather-tight seal|other sizes and quantities available by request

  • Features

    • All-Weather Coating
    • Includes Bonded Sealing Washer for a weather-tight seal
    • 5/16 Hex Head with Hex Drive
    • #3 Drill Point
    • 12-14 Diameter, 1-1/2" Length

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
C
Buy American Compliant:
C
Country Of Origin:
United States
Dimensional Standard:
ASME B18.6.3-2010
Division:
Electrical H1
Drill Point Size:
#3
Drive Type:
Hex
Fastener Head Height:
0.139 - 0.155 in.
Fastener Head Type:
Hex
Fastener Head Width:
0.305 - 0.312 in.
Fastener Length:
1/1/02
Hardness:
Rockwell C32-40
Language Code:
EN
Material Standard:
AISI 1016 - 1024
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Panel Thickness:
0.110 - 0.210 IN
Product Group:
Fasteners
Product Height:
3.6 in
Product Length:
3 in
Product Weight:
0.92 lbs
Product Width:
3 in
Screw Point Type:
Drill Point
Slot Depth:
0.077 - 0.093
Slot Width:
0.056 - 0.067
Sub Division:
Electrical-E H2
Thread Per Inch:
14
Thread Standard:
SAE J78 - 2013
Torsional Strength:
92 lb-in minimum
Washer Od:
0.398 - 0.432 in.
Washer Thickness:
0.022 - 0.039 IN
Width Across Corners:
0.34
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Type BSD Self-Drilling Screw
Type2:
Type BSD Self-Drilling Screw
Series:
TXW
Product Finish:
Zinc/All-Weather Coating
Product Details:
Type BSD Self-Drilling Screw
Product Material:
All-Weather

Metallics TXW12112 – Frequently Asked Questions

1) Will these screws seal an exterior metal roof or wall panel so it does not leak?
Yes. Each 12-14 x 1-1/2 in. screw comes with a bonded sealing washer, 0.398 to 0.432 in. outside diameter and 0.022 to 0.039 in. thick, which compresses against the panel to make a weather-tight seal at the fastener. The screw itself carries a zinc/all-weather coating for outdoor exposure.
2) Do these Metallics self-drilling screws qualify for a Buy American or federally funded job?
Yes. The TXW12112 is made in the United States and is flagged both Buy American compliant and ARRA compliant, which is what a government, school, or healthcare procurement officer needs for a federally funded project file.
3) How many Metallics TXW12112 screws come in a pack and can I buy just a few?
They ship in a jar with a 100-count minimum, so the smallest purchase is 100 pieces. The filled jar weighs 0.92 lbs. Other sizes and quantities are available by request.
4) What standards does the Metallics TXW12112 screw meet, and how strong is it?
Dimensions follow ASME B18.6.3-2010 and the thread follows SAE J78-2013, the standard for self-drilling tapping screws. Steel is AISI 1016-1024, case hardened to Rockwell C32-40, with a minimum torsional strength of 92 lb-in. That torsional figure is what keeps the screw from snapping off in the drill phase when driven with an impact.
5) Is a pilot hole needed for the TXW12112, or does it drill its own?
No pilot hole. It is a Type BSD self-drilling screw with a drill point, so it cuts its own hole and taps its own thread in one pass through steel in the 0.110 to 0.210 in. range. Thread pitch is 14 threads per inch.
6) How much does the hex head of these screws stand up off the surface?
Head height runs 0.139 to 0.155 in., plus the bonded washer at 0.022 to 0.039 in. thick before compression. That is a low profile for a hex washer head, which matters when a panel lap, a trim piece, or a clamp has to sit over the fastener.
