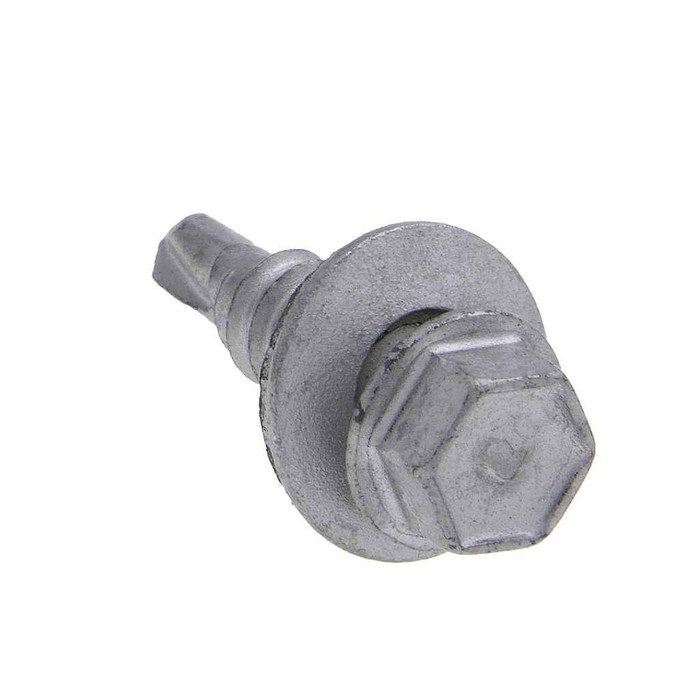

1/4-14 x 2 in. 5/16 Hex Head Self-Drilling Screws with Bonded Sealing Washer - #3 Drill Point - All-Weather - 100qty
Features
- 5/16 Hex Head with Hex Drive
- #3 Drill Point
- All-Weather Coating
- Includes Bonded Sealing Washer for a weather-tight seal
- 1/4-14 Diameter, 2" Length
Additional Notes
- Economical fasteners for applications requiring a weather-tight seal|other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Country Of Origin:
- United States
- Dimensional Standard:
- ASME B18.6.3-2010
- Division:
- Electrical H1
- Drill Point Size:
- #3
- Drive Type:
- Hex
- Fastener Head Height:
- 0.172 - 0.19 in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.367 - 0.375 in.
- Fastener Length:
- 2
- Finish:
- Zinc/All-Weather Coating
- Hardness:
- Rockwell C32-40
- Height:
- 5.75 in
- Language Code:
- EN
- Length:
- 3.5 in
- Material:
- All-Weather
- Material Standard:
- AISI 1016 - 1024
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- CT
- Pack Type:
- Jar
- Panel Thickness:
- 0.110 - 0.220 IN
- Product Family:
- Electrical Supplies
- Product Group:
- Fasteners
- Product Height:
- 146.05 MM
- Product Length:
- 88.9 MM
- Product Series:
- TXW
- Product Weight:
- 1311 g
- Product Width:
- 88.9 MM
- Screw Point Type:
- Drill Point
- Slot Depth:
- 0.083 - 0.101
- Slot Width:
- 0.064 - 0.075
- Sub Division:
- Electrical-E H2
- Thread Per Inch:
- 14
- Thread Standard:
- SAE J78 - 2013
- Torsional Strength:
- 150 lb-in minimum
- Type:
- Type BSD Self-Drilling Screw
- Washer Od:
- 0.480 - 0.520 in.
- Washer Thickness:
- 0.030 - 0.050 IN
- Weight:
- 2.89 lbs
- Width:
- 3.5 in
- Width Across Corners:
- 0.409
- Department:
- Electrical
- Product Subgroup:
- Screws
- Product Type:
- Type BSD Self-Drilling Screw
- Type2:
- Type BSD Self-Drilling Screw
