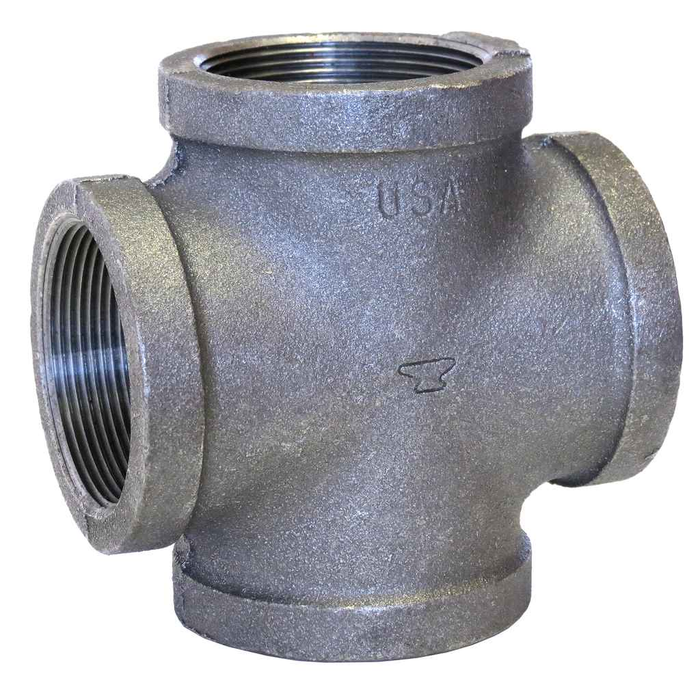

1/2 BLK MI CROSS
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- FPT
- End Conn Size 3:
- FPT
- End Conn Size 4:
- FPT
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 0.5
- Size 2:
- 0.5
- Size 3:
- 0.5
- Size 4:
- 0.5
- Strength:
- STD
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Crosses
- Product Type:
- Cross
- Product Finish:
- Black
- Product Material:
- Malleable Iron
- Product Weight:
- 0.42 lbs
ASC Engineered Solutions 310069802 – Frequently Asked Questions
1) Are all four openings on the 1/2 inch black malleable iron cross the same size?
All four outlets are 1/2 inch female pipe thread, so the ASC Engineered Solutions black malleable iron cross is a straight 1/2 x 1/2 x 1/2 x 1/2 fitting with no reducing branch. Every run and branch takes the same 1/2 inch male-threaded pipe or nipple.
2) Is this black cross UL Listed and FM Approved for fire sprinkler work?
It carries UL/FM recognition, which is what an AHJ looks for on a fire protection line. Combined with the black finish and malleable iron body, it is the fitting normally used on black steel sprinkler and low pressure steam or gas piping rather than potable water.
3) Should I use a cross or two tees at a 1/2 inch branch point?
A cross gives you four outlets on one center in a single fitting, so opposing branches stay on the same plane and the same centerline. Two tees need a nipple between them, which offsets the branches and adds two more joints to leak. Where the branches must line up, the cross is the right call; where you need the branches staggered or a different branch size, back-to-back tees or a reducing tee are the better option, since this cross is 1/2 inch on all four ports.
4) What does a 1/2 inch black malleable cross weigh for takeoff purposes?
0.42 lbs each. Handy when you are figuring hanger spacing or freight on a large fitting count.
