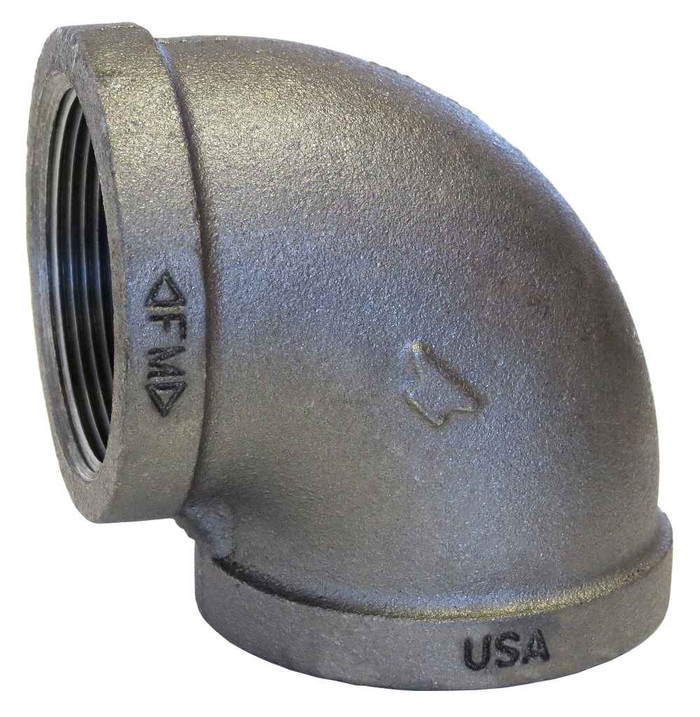

1/2 GALV MI 90 ELL
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- FPT
- Finish Specification:
- ASTM A-153
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 0.5
- Size 2:
- 0.5
- Strength:
- STD
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Elbows
- Product Type:
- 90° Elbow
- Product Finish:
- Galvanized
- Product Material:
- Malleable Iron
- Product Weight:
- 0.31 lbs
ASC Engineered Solutions 311000806 – Frequently Asked Questions
1) Does the ASC Engineered Solutions 1/2 inch galvanized malleable iron 90 degree elbow have female threads on both ends?
Both ends are 1/2 inch FPT, so it takes male pipe thread on each side. Cut and thread your pipe, or use close nipples, to land into it. Threads are cut to ASME B1.20.1 (NPT), so it mates with standard threaded steel or brass pipe of the same size.
2) Is this 1/2 inch malleable iron elbow approved for fire sprinkler piping?
It carries UL/FM approval, which is what an inspector looks for on fire protection piping. It is a standard (STD) pattern malleable iron fitting made to ASTM A-197 with pressure ratings per ASME B16.3.
3) Will this elbow match the dimensions of the fitting I am replacing?
Dimensions follow ASME B16.3, the standard for malleable iron threaded fittings, so center to end and thread engagement match any other B16.3 standard pattern 1/2 inch 90 elbow. A same size B16.3 fitting from another maker drops into the same run without re-measuring the pipe.
4) Can a galvanized malleable iron 90 elbow be used on outdoor or wet piping runs?
The galvanized coating is hot dip per ASTM A-153, which is the spec for zinc coating on threaded iron hardware and is what makes it suitable for damp, exterior, and corrosive service where black iron would rust. Use galvanized fittings with galvanized pipe to keep the whole run consistent.
5) Is this a reducing elbow or straight 1/2 inch both ways?
Straight through at size. Both openings are 1/2 inch, so it turns 90 degrees without changing pipe size. For a size change you need a reducing elbow or a bushing on one leg.
6) What is the part number and weight on the ASC 1/2 inch galvanized 90 elbow for my material list?
Order by MPN 311000806. Each fitting weighs 0.31 lbs, useful if you are figuring hanger spacing or freight on a bulk pull.
7) Can I use this galvanized elbow on a potable water line?
It is a plumbing fitting in galvanized malleable iron, standard pattern, built to ASME B16.3. Galvanized iron is commonly used on water service and older potable systems, but check your local code for potable requirements before specifying it on new work.
