Product Specs
- Application:
- Water Heater
- Body Material:
- Bronze
- Gpm When Relieved:
- Does Not Apply to Product
- Inlet Connection Size:
- 1/2 IN
- Inlet Connection Type:
- Male Threaded
- Inlet Thread Type:
- NPT
- Maximum Temperature:
- 210°F
- Maximum Temperature Fahrenheit:
- 210
- Maximum Working Pressure:
- 113
- Outlet Connection Size:
- 1/2 IN
- Outlet Connection Type:
- Female Threaded
- Outlet Thread Type:
- NPT
- Pressure Range:
- Does Not Apply to Product
- Pressure Relief Setting:
- 150 PSI
- Pressure Relief Setting Psi:
- 150
- Pressure Steam Discharge Capacity:
- 15,000 BTU per hour
- Protection Type:
- Pressure
- Series:
- 53L
- Shank Length:
- Does Not Apply To Product
- Temperature Steam Discharge Capacity:
- Does Not Apply to Product
- Test Lever:
- Yes
- Thermostat Material:
- Does Not Apply To Product
- Thermostat Probe Length:
- Does Not Apply To Product
- Department:
- Plumbing
- Product Group:
- Plumbing
- Product Subgroup:
- Valves
- Product Type:
- Relief Valve
- UL Listing (Specs):
- 1-UL Listed
Watts 190482 – Frequently Asked Questions

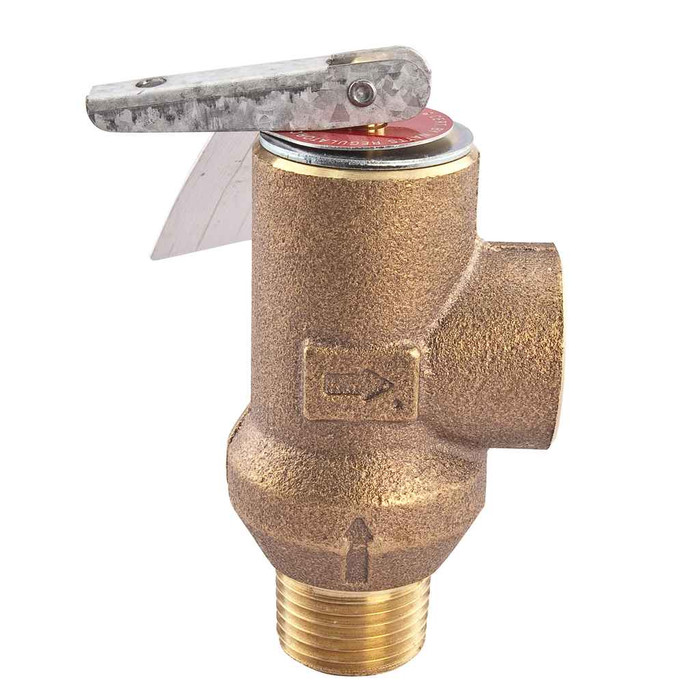

1) Is the Watts 53L 0190482 a T&P valve, or pressure only?
Pressure only. The 53L 0190482 is a poppet type relief valve with pressure protection, set at 150 psi, and it carries no thermostat or probe. If your water heater tank tapping requires a combination temperature and pressure relief valve, this is the wrong part, since it will not respond to an over-temperature condition, only to overpressure.
2) What thread connections does the Watts 0190482 relief valve have?
Inlet is 1/2 inch male NPT, outlet is 1/2 inch female NPT. So it threads directly into a 1/2 inch female tapping on the heater or tank, and the discharge tube screws into the outlet with a 1/2 inch male NPT adapter or nipple. No bushing needed if your tapping is already 1/2 inch.
3) What temperature and pressure limits does this Watts bronze relief valve work within?
Set to relieve at 150 psi, with a maximum operating temperature of 210 degrees F. The bronze body suits potable hot water service on water heaters. Steam discharge capacity is rated at 15,000 BTU per hour.
4) Does the Watts 53L relief valve have a manual test lever?
Yes, a test lever is included, so a maintenance tech can lift it periodically to verify the seat is free and the discharge line is clear. That is the routine check most facilities and multi-family properties run on relief valves.
