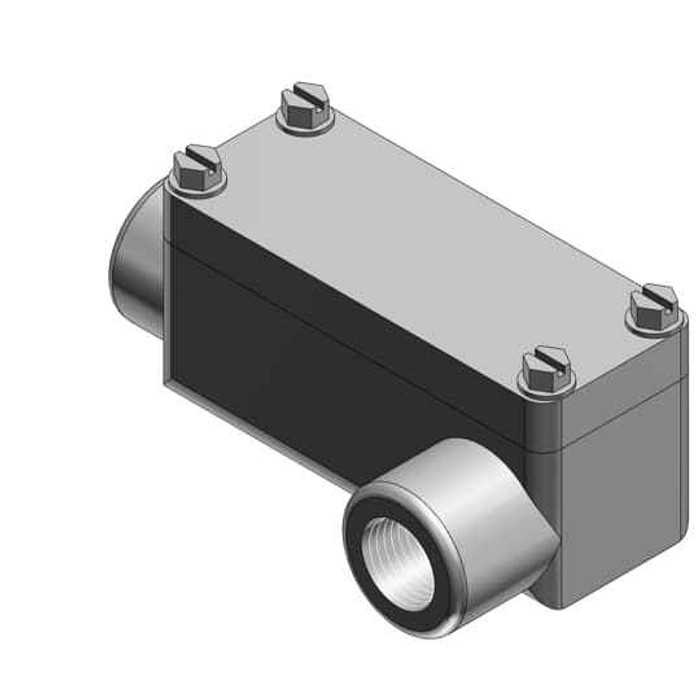

1/2 IN C- BODY IRON OE-C-STYLE XP
Manufacturer Resources
Product Specs
- Number Of Batteries:
- 0
- Product Type:
- Conduit Outlet Bodies-Explosionproof
- Department:
- Electrical
- Product Material:
- Ductile Iron
Thomas & Betts OEC1-TB – Frequently Asked Questions
1) What size conduit does the Thomas & Betts OEC1-TB C body take?
The OEC1-TB is a 1/2 inch conduit outlet body, so it threads onto 1/2 inch trade size rigid or IMC runs. Both openings are 1/2 inch, which means it inserts inline in a single 1/2 inch run rather than stepping between sizes.
2) Is this conduit body rated for hazardous locations?
The OEC1-TB is an explosionproof conduit outlet body of the OE-C style, so it is built for hazardous location conduit runs rather than general purpose interior work. If you are pulling in an ordinary dry location, a standard Form 8 malleable iron C body is the cheaper choice.
3) What is a C style conduit body used for versus an LB or T body?
A C body is a straight-through pull and splice point: both hubs are in line, so it gives you access to a conduit run without changing direction. Use an LB when the run has to turn back into a wall, an LL or LR for a side turn, and a T body when a third conduit branches off. The OEC1-TB is the C configuration in 1/2 inch.
4) What material is the OEC1-TB body made from, and will it hold up outdoors or in a plant?
Ductile iron. That is a tougher, more impact resistant casting than standard malleable or aluminum bodies, which is why it is used on hazardous location and industrial runs where the conduit takes abuse. In corrosive or wet areas, check that the factory coating suits your environment.
5) Does the Thomas & Betts OEC1-TB come with a cover and gasket?
OEC1-TB is the body itself. Explosionproof OE style bodies take a matching cover, and a wedge or gasket where the installation calls for it, ordered separately. Plan on specifying the cover with the body so the assembly arrives complete.
6) Can I use a 1/2 inch OE-C body as a junction point for splices in a hazardous area run?
A C body gives you access for pulling conductors. Whether you can splice inside it depends on the volume available and the code rules for your classified area, so size the conductors and fill accordingly. The OEC1-TB itself is the 1/2 inch explosionproof C configuration in ductile iron.
7) What is the exact part number to order this Thomas & Betts C body?
Order it as Thomas & Betts OEC1-TB. That is the 1/2 inch, OE-C style explosionproof conduit outlet body in ductile iron, and it is sold as a single model with no finish or size variations to specify.
