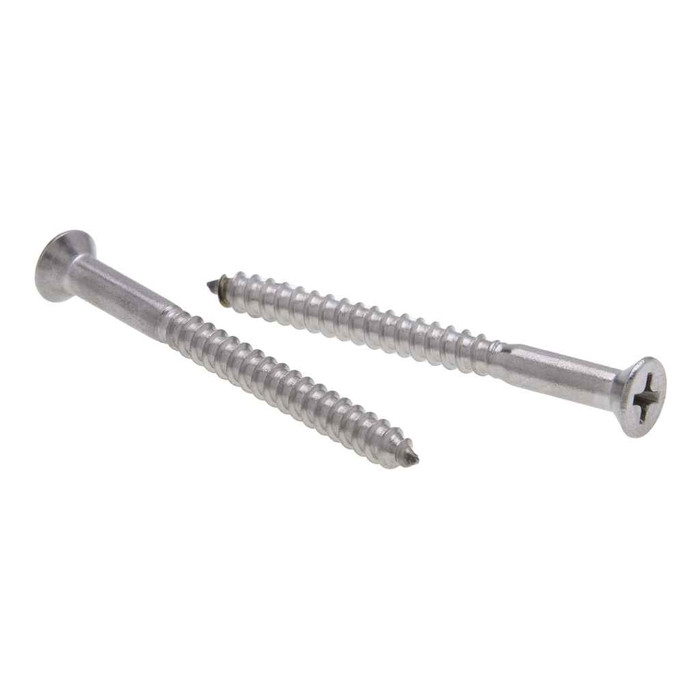

12 x 1-1/4 in. Flat Head Phillips Wood Screws - 18-8 Stainless - 100qty
Features
- Flat Head with Phillips Drive
- Stainless wood screws are usually supplied without additional finish
- 12 Diameter, 1-1/4" Length
- 18-8 Stainless Material
- Screws of nominal lengths too short to accomodate the minimum thread length shall have threads extending as close to the underside of the head as practicable.
Additional Notes
- Other sizes and quantities available by request | Length of Thread: Length = 1 inch then 2/3 thread
Manufacturer Resources
Product Specs
- Minimum Purchase:
- 100 units
- Arra Compliant:
- N
- Buy American Compliant:
- No
- Dimensional Standard:
- ASME B18.6.1
- Division:
- Electrical H1
- Drive Type:
- Phillips
- Driver Size:
- #3
- Fastener Head Height:
- 0.132 in.
- Fastener Head Type:
- Flat
- Fastener Head Width:
- 0.389 - 0.438 in.
- Fastener Length:
- 1/1/04
- Field Application:
- Electrical, Plumbing, Heating, Air Conditioning Industries
- Language Code:
- EN
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Flat_Head_Wood_Screw_Steel_SS.pdf
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- JR
- Pack Type:
- Jar
- Phillips Recess Depth:
- 0.148 - 0.171
- Phillips Recess Diameter:
- 0.270 - 0.283
- Phillips Recess Width:
- 0.036
- Product Group:
- Fasteners
- Product Height:
- 2.7 in
- Product Length:
- 3 in
- Product Weight:
- 1.2 lbs
- Product Width:
- 3 in
- Screw Point Type:
- Tapered Point
- Sub Division:
- Electrical-E H2
- Thread Per Inch:
- 11
- Thread Standard:
- ASME B18.6.1-1997
- Department:
- Electrical
- Product Subgroup:
- Screws
- Product Type:
- Wood Screw
- Type2:
- Wood Screw
- Series:
- JFWP
- Product Details:
- Wood Screw
- Product Material:
- 18-8 Stainless
Metallics JFWP40SS – Frequently Asked Questions
1) Are these screws Buy American or ARRA compliant for a government job?
No. The JFWP40SS flat head wood screws are not Buy American compliant and are not ARRA compliant, with country of origin listed as multiple. If your project carries a domestic-sourcing requirement, these will not satisfy it.
2) Are these stainless wood screws OK for outdoor or damp locations?
They're made from 18-8 stainless, so they hold up in exterior and damp interior work (exterior strut mounting, pump room backing, dock and marina-adjacent framing) where a plain steel or zinc screw would bleed rust. Stainless wood screws like these ship with no added plating or coating. For chloride-heavy saltwater exposure, 18-8 is not the same as 316.
3) Do I have to pre-drill for these wood screws?
They have a tapered point, not a self-drilling or self-tapping tip, so a pilot hole is the right practice in hardwood and anywhere close to an edge or an end grain where splitting is a risk. In softwood framing a #12 can be driven directly, but the 11-TPI tapered thread is cut to pull into a pilot, and pre-drilling is what keeps the head from snapping off a stainless screw.
4) Do these screws meet a recognized dimensional standard for submittals?
Yes. The JFWP40SS is built to ASME B18.6.1, with threads to ASME B18.6.1-1997, which is the wood screw standard a spec or submittal will reference for head, recess, and thread geometry. That is what lets the recorded head and recess dimensions be checked against the standard rather than taken on trust.
5) How are Metallics JFWP40SS screws packaged and what is the minimum order?
They come in a jar of 100, and 100 is the order minimum. Figure about 1.2 lbs for the jar. If you need a different diameter, length, or pack count in the JFWP flat head Phillips line, other sizes and quantities are available by request.
6) What trades actually use these #12 stainless wood screws?
Metallics catalogs the JFWP series for the electrical, plumbing, heating, and air conditioning trades. Typical use is fastening boxes, straps, clamps, plates, and small equipment to wood studs, blocking, and plywood backboards, where the flat head lets the fixing sit flush and the stainless means it won't rust-stain the finish.
