Metallics JDS171SS 12 x 1 in. ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$192.86

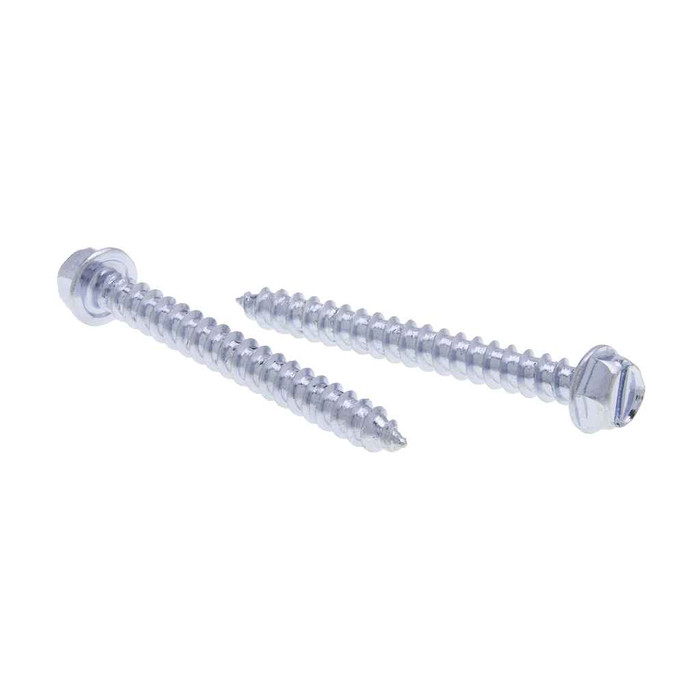

Metallics JDS171SS 12 x 1 in. 5/16 Indented Hex Head Slotted Sharp Point Tapping Screws - 18-8 Stainless - 100qty

Metallics JDS171SS 12 x 1 in. 5/16 Indented Hex Head Slotted Sharp Point Tapping Screws - 18-8 Stainless - Each

(No reviews yet) Write a Review

Model: JDS171SS
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$192.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
12 x 1 in. 5/16 Indented Hex Head Slotted Sharp Point Tapping Screws - 18-8 Stainless - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | Dimensions for #9 diameter are independent of ASME B18.6.4

  • Features

    • Hex 5/16 Head with slotted Drive
    • Fastening stainless steel parts to aluminum or steel can cause a type of corrosion known as a galvanic couple in some environments.
    • 12 Diameter, 1" Length
    • 18-8 Stainless Material

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
C
Buy American Compliant:
C
Dimensional Standard:
ASME B18.6.3-2010
Division:
Electrical H1
Drive Type:
Hex/Slotted
Fastener Head Height:
0.139 - 0.155 in.
Fastener Head Type:
Indented Hex
Fastener Head Width:
0.305 - 0.312 in.
Fastener Length:
1
Hardness:
RockweII C28-38
Language Code:
EN
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Indent_Hex_Head_Slot_TS.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
2.7 in
Product Length:
3 in
Product Weight:
1.04 lbs
Product Width:
3 in
Screw Point Type:
Gimlet Point
Slot Depth:
0.077 - 0.093
Slot Width:
0.056 - 0.067
Sub Division:
Electrical-E H2
Thread Per Inch:
11
Thread Standard:
ASME B18.6.4
Washer Od:
0.398 - 0.432 in.
Washer Thickness:
0.022 - 0.039 IN
Width Across Corners:
0.34
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Type A Tapping Screw
Type2:
Type A Tapping Screw
Series:
JDS
Product Details:
Type A Tapping Screw
Product Material:
18-8 Stainless

Metallics JDS171SS – Frequently Asked Questions

1) Will a #12 Type A tapping screw bite into sheet metal without a pilot hole?
The JDS171SS is a Type A tapping screw with a gimlet (sharp) point and 11 threads per inch, so it starts itself in thin sheet metal, duct, and sheet metal enclosures. Type A is a sheet metal screw thread, not a self-drilling screw, so it will not cut its own hole in heavy gauge steel. For thicker material, drill a pilot hole first.
2) Can I use these stainless screws to fasten into aluminum strut or steel boxes?
You can, but be aware of the metallurgy. 18-8 stainless fasteners in contact with aluminum or steel can set up a galvanic couple and corrode in some environments, particularly outdoors or anywhere damp or salty. Indoors and dry, it is a non-issue. If the connection is exposed, isolate the joint or use a fastener matched to the base metal.
3) Do these screws meet a dimensional standard I can put on a submittal?
Yes. The indented hex head conforms to ASME B18.6.3-2010 and the thread form to ASME B18.6.4. Hardness is Rockwell C28-38. Note that dimensions for #9 diameter screws in this family fall outside ASME B18.6.4, though that does not apply to this #12 size.
4) Are these screws Buy American and ARRA compliant for a government or institutional job?
The JDS171SS carries Buy American and ARRA compliance flags of C, with country of origin China. If your contract requires domestic melt and manufacture rather than ARRA-level compliance, check the flag against your specific clause.
5) Does the indented hex washer head need a separate washer?
No separate washer is needed. The head is an integral washer type with an outside diameter of 0.398 to 0.432 inch and a washer thickness of 0.022 to 0.039 inch, which spreads the clamp load over the sheet. Overall head height runs 0.139 to 0.155 inch.
6) What size and length is the Metallics JDS171SS?
It's a #12 diameter screw, 1 inch long, with a 5/16 inch indented hex head. The 1 inch length gives you grip through a layer of sheet metal plus insulation or a mounting flange; for thicker stack-ups you need a longer screw in the same JDS series.
