Metallics JTEKD28 12 x 1/2 in. 5/16 Indented Hex Head Self-Drilling & Tapping Screws with Washer - #2 Drill Point - Steel Zinc - Each

The #2 drill point on the Metallics JTEKD28 is the light-gauge point, and the published drill time reference is 2.5 seconds for a 1 mm thick plate. With only 1/2 inch of overall screw length, your fastened stack has to stay thin anyway, so think light sheet metal, strut accessories, duct, and panel-to-channel work rather than heavy structural plate. For thicker base metal you need a longer screw with a higher-numbered drill point.

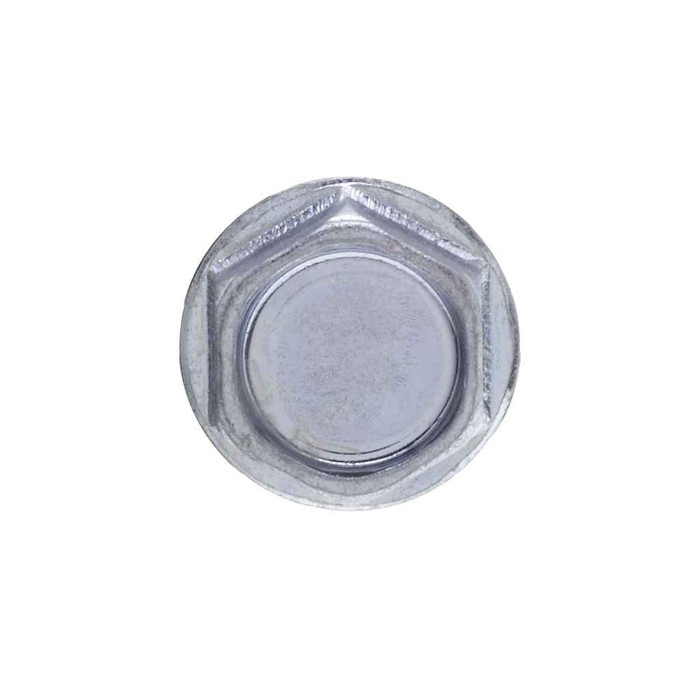

It's an integral indented hex washer head, not a loose part. The formed washer runs 0.398 to 0.432 in. outside diameter with a washer thickness of 0.022 to 0.039 in., which spreads the clamp load over thin sheet and over slotted or oversized holes without adding a second piece to handle on the ladder.

Minimum torsional strength is 92 lb-in, with the screw heat treated to Rockwell C32-40 and made from AISI 1016-1024 steel. That's enough for a standard screwgun or a clutch-set impact driver on light gauge, but a high-torque impact run wide open will exceed 92 lb-in on a #12 screw once the point bottoms out, so back the clutch off and stop driving as soon as the washer seats.

At 1/2 inch overall length with a #2 point, most of that length is point and the first threads, so usable grip is short. It works for a single light-gauge layer or a thin accessory into light gauge. Fastening two stacked layers, or anything with a gasket or standoff, calls for a longer screw in the same #12-14 thread.

No. It's a Type BSD self-drilling and tapping screw, so the point cuts its own hole and forms the thread in one pass. One driver, no pilot bit, no tapping step.

A 5/16 inch hex driver. The head measures 0.305 to 0.312 in. across the flats with 0.34 across the corners, and the drive is hex, so a standard 5/16 magnetic nut setter in a screwgun or impact driver seats it. Head height runs 0.139 to 0.155 in.

They ship in a jar, with an order minimum of 100 count. Package weight is listed at 0.67 lbs, and the container measures 3 in. by 3 in. by 2.15 in., so it drops into a van bin or gang box tray easily.

The JTEKD28 is zinc plated carbon steel. That's the standard finish for dry interior and protected work, electrical rooms, ceiling spaces, interior duct and strut. Zinc plating is a mild corrosion coating, not a marine or chemical-exposure finish, so for direct weather, coastal air, or wash-down areas specify a stainless self-drilling screw instead.

Threads are 14 per inch, UNC form, to SAE J78-2013, with head dimensions to ASME B18.6.3-2010. A #12-14 is the standard pitch for this diameter, so it interchanges with other #12-14 hex washer head self-drillers of the same length and point number for mixed-stock jobs.

The JTEKD28 is flagged compliant for both Buy American and ARRA. Country of origin is listed as multiple, so if your contract requires a documented single country of manufacture on the submittal, request origin documentation against the lot you receive.
