Metallics JDS86 12 x 2-1/2 in....
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.43
$0.43

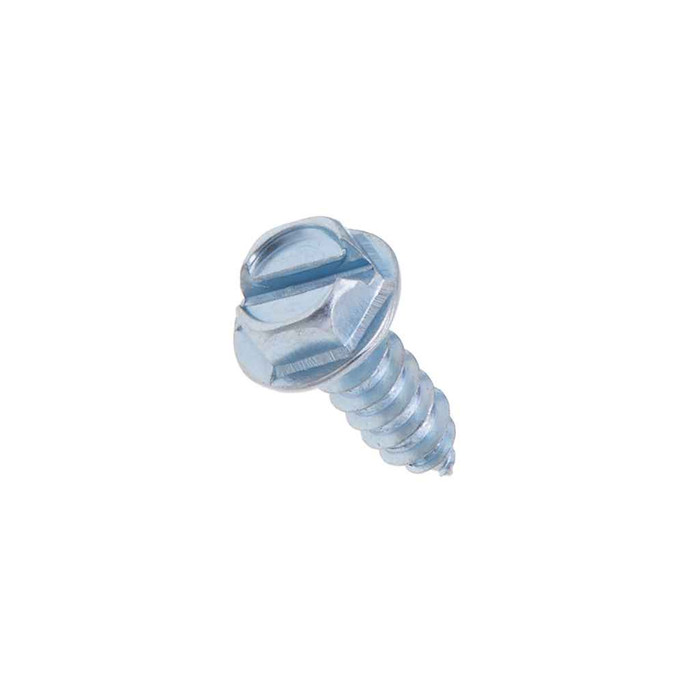

Metallics JDS86 12 x 2-1/2 in. 5/16 Indented Hex Head Slotted Sharp Point Tapping Screws - Steel Zinc - 100qty

Metallics JDS86 12 x 2-1/2 in. 5/16 Indented Hex Head Slotted Sharp Point Tapping Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JDS86
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.43
$0.43
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
12 x 2-1/2 in. 5/16 Indented Hex Head Slotted Sharp Point Tapping Screws - Steel Zinc - 100qty

  • Features

    • Steel Zinc Material
    • Hex 5/16 Head with slotted Drive
    • 12 Diameter, 2-1/2" Length

  • Additional Notes

    • Other sizes and quantities available by request | Dimensions for #9 diameter are independent of ASME B18.6.4

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
C
Buy American Compliant:
C
Dimensional Standard:
ASME B18.6.3-2010
Division:
Electrical H1
Drive Type:
Hex/Slotted
Fastener Head Height:
0.139 - 0.155 in.
Fastener Head Type:
Indented Hex
Fastener Head Width:
0.305 - 0.312 in.
Fastener Length:
2/1/02
Hardness:
RockweII C28-38
Language Code:
EN
Material Standard:
AISI 1016 - 1024
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Indent_Hex_Head_Slot_TS.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
7.25 in
Product Length:
4.5 in
Product Weight:
2.05 lbs
Product Width:
4.5 in
Screw Point Type:
Gimlet Point
Slot Depth:
0.077 - 0.093
Slot Width:
0.056 - 0.067
Sub Division:
Electrical-E H2
Thread Per Inch:
11
Thread Standard:
ASME B18.6.4
Torsional Strength:
83 lb-in minimum
Washer Od:
0.398 - 0.432 in.
Washer Thickness:
0.022 - 0.039 IN
Width Across Corners:
0.34
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Type A Tapping Screw
Type2:
Type A Tapping Screw
Series:
JDS
Product Finish:
Zinc
Product Details:
Type A Tapping Screw
Product Material:
Steel Zinc

Metallics JDS86 – Frequently Asked Questions

1) What is a Type A tapping screw and what material should I be driving the Metallics JDS86 into?
Type A is a sharp gimlet point thread-forming screw. It cuts its own thread as it goes, so it is driven into sheet metal, thin steel, and wood-type substrates without a tapped hole. The JDS86 is a #12 diameter, 2-1/2 inch long screw with 11 threads per inch, so the coarse thread and long shank suit anchoring into framing, strut, or sheet metal hangers rather than into thick structural steel plate.
2) Will these screws snap if I run them in with an impact driver?
The JDS86 is heat treated to Rockwell C28-38 with a minimum torsional strength of 83 lb-in. That is the published breaking torque, so set an impact or clutch driver below it. The material is AISI 1016 to 1024 steel. Running a high-torque impact flat out into dense substrate is the usual cause of twisted-off heads on a #12 tapping screw.
3) Are the Metallics JDS86 screws OK for a Buy American or ARRA funded job?
Both the ARRA and Buy American fields on the JDS86 are flagged compliant. Country of origin is listed as multiple, so if your specification requires a single named origin on the submittal, have that confirmed for the lot you receive before you install.
4) Does the Metallics JDS86 tapping screw come with an integral washer under the head?
Yes. The indented hex head carries a washer face measuring 0.398 to 0.432 inch outside diameter and 0.022 to 0.039 inch thick. That spreads the bearing load over sheet metal and keeps the head from pulling through thin gauge material, so you do not need to stack a separate flat washer for most hanger and box work.
5) How thick a stack can a 2-1/2 inch tapping screw actually hold together?
At 2-1/2 inches overall length, the JDS86 gives you the full shank minus head to work with, and a Type A gimlet point needs several threads of engagement past the stack to hold. Practically, that means a fastened thickness well under 2 inches if you want solid thread engagement in the base material. For thin sheet-to-sheet work the 2-1/2 inch length is longer than needed, and a shorter screw in the same series is the better call.
6) How do the JDS86 screws ship and is there a minimum order quantity?
They ship as a jar of 100, which is also the order minimum (100 count). The packed jar weighs 2.05 lbs. Metallics lists other sizes and quantities in this family on request if a #12 by 2-1/2 inch is not the length you need.
