Metallics JTS82 12 x 2-1/2 in....
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.59
$0.59

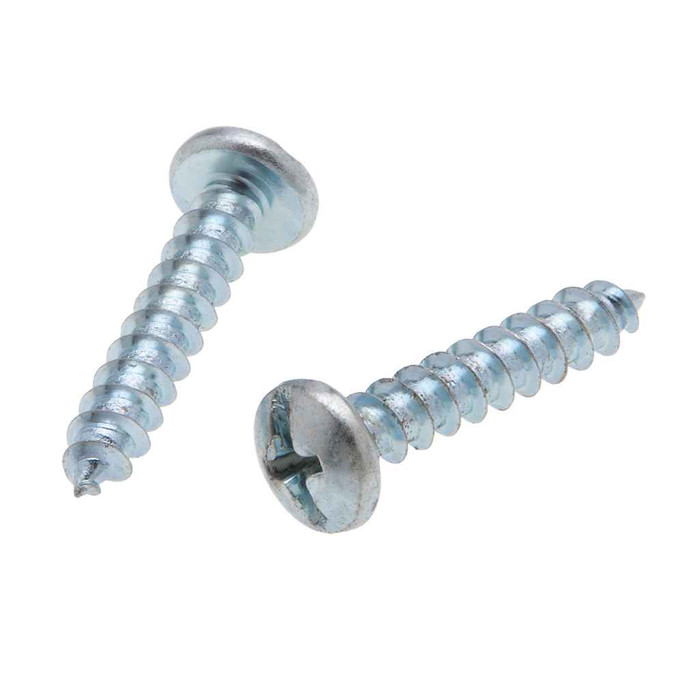

Metallics JTS82 12 x 2-1/2 in. Pan Head Combo Sharp Point Tapping Screws - Steel Zinc - 100qty

Metallics JTS82 12 x 2-1/2 in. Pan Head Combo Sharp Point Tapping Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JTS82
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.59
$0.59
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
12 x 2-1/2 in. Pan Head Combo Sharp Point Tapping Screws - Steel Zinc - 100qty

  • Features

    • Steel Zinc Material
    • 12 Diameter, 2-1/2" Length
    • Pan head with Phillips and slotted Drive

  • Additional Notes

    • Other sizes and quantities available by request | Dimensions for #9 diameter are independent of ASME B18.6.4

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-2013
Division:
Electrical H1
Drive Type:
Slotted/Phillips
Driver Size:
#3
Fastener Head Height:
0.139 - 0.151 in.
Fastener Head Type:
Pan
Fastener Head Width:
0.407 - 0.425 in.
Fastener Length:
2/1/02
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Hardness:
Rockwell C28 - 38
Language Code:
EN
Material Standard:
AISI 1016 - 1024
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Pan_Slot-Phil-Combo_Self_Tap.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Phillips Recess Diameter:
0.252
Product Group:
Fasteners
Product Height:
5.75 in
Product Length:
3.5 in
Product Weight:
2.06 lbs
Product Width:
3.5 in
Recess Penetration Gaging Depth:
0.098 - 0.124
Screw Point Type:
Gimlet Point
Slot Depth:
0.055 - 0.077
Slot Width:
0.056 - 0.067
Sub Division:
Electrical-E H2
Thread Per Inch:
11
Thread Standard:
ASME B18.6.4
Torsional Strength:
83 lb-in minimum
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Type A Tapping Screw
Type2:
Type A Tapping Screw
Series:
JTS
Product Finish:
Zinc
Product Details:
Type A Tapping Screw
Product Material:
Steel Zinc

Metallics JTS82 – Frequently Asked Questions

1) Does the Metallics JTS82 tapping screw need a pilot hole, or will it start on its own?
The JTS82 is a Type A tapping screw with a gimlet (sharp) point, so it starts and taps its own thread in sheet metal without a separate tapping operation. In thin gauge metal it will self-start; in heavier stock a pilot hole sized for the #12 shank keeps it from walking and avoids stripping. The thread is a coarse 11 threads per inch, which is what Type A spaced thread is designed for in sheet metal and similar soft stock.
2) Will a #12 pan head screw sit flat without pulling through sheet metal or a strap?
The pan head measures 0.407 to 0.425 in. across and 0.139 to 0.151 in. high, so it gives a wide, low bearing surface that seats on top of the material rather than countersinking. That head width is what keeps it from pulling through sheet metal, straps, and clips. If you need the head flush with the surface, a pan head is the wrong choice and you want a flat head instead.
3) Can I use Metallics JTS82 screws on a Buy American or ARRA-funded job?
No. The JTS82 is not Buy American compliant and is not ARRA compliant, with country of origin listed as multiple. On a federally funded project with domestic-content requirements you will need a domestically sourced fastener instead.
4) What driver do I need for the Metallics JTS82 combo pan head screw?
It takes a #3 Phillips bit, and the head is a combo recess so a flat blade works in the slot as well. The Phillips recess diameter is 0.252 in. with a recess penetration gaging depth of 0.098 to 0.124 in., and the slot runs 0.056 to 0.067 in. wide by 0.055 to 0.077 in. deep. A #2 Phillips will cam out on this size, so bring the #3 if you are driving a jar of them.
5) How many screws come in a jar of Metallics JTS82, and can I buy fewer?
They ship by the jar, 100 pieces, and 100 is the order minimum. The filled jar weighs 2.06 lbs. If you need a different size or count, Metallics lists other sizes and quantities as available by request.
6) Are the Metallics JTS82 screws OK for outdoor or damp locations?
These are carbon steel with a zinc finish. Zinc plating handles indoor and protected conditions, which is where most electrical and HVAC work happens. For sustained exterior exposure, wash-down areas, or anywhere near salt, zinc-plated steel will eventually corrode and stainless is the better call.
7) Do the Metallics JTS82 screws meet a dimensional standard I can put on a submittal?
Head dimensions are built to ASME B18.6.3-2013 and the thread to ASME B18.6.4, the standards for pan head machine screws and tapping screws respectively. Material is AISI 1016 to 1024 steel. Note that Metallics calls out #9 diameter dimensions as independent of ASME B18.6.4; this screw is a #12, so it falls under the standard.
