Metallics JTSF37 12 x 2 in. Fl...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$192.86
Metallics JTSF37 12 x 2 in. Flat Head Phillips Tapping Screws - Steel Zinc - 100qty

Metallics JTSF37 12 x 2 in. Flat Head Phillips Tapping Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JTSF37
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$192.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

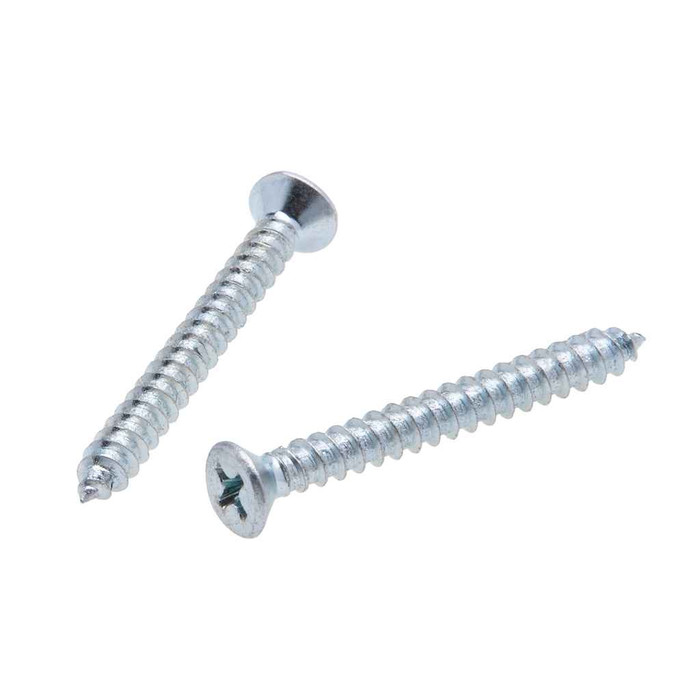

12 x 2 in. Flat Head Phillips Tapping Screws - Steel Zinc - 100qty

  • Features

    • Flat head with Phillips Drive
    • Steel Zinc Material
    • 12 Diameter, 2" Length

  • Additional Notes

    • Other sizes and quantities available by request | Dimensions for #9 diameter are independent of ASME B18.6.4

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.4-1998
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#3
Fastener Head Height:
0.112 - 0.132 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.38 - 0.412 in.
Fastener Length:
2
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Gaging Diameter:
0.362
Hardness:
Rockwell C28-38
Language Code:
EN
Material Standard:
AISI 1016 - 1024
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Flat_Phillips_Self_Tap.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Phillips Recess Depth:
0.144
Phillips Recess Diameter:
0.262
Phillips Recess Width:
0.035
Product Group:
Fasteners
Product Height:
4.57 in
Product Length:
3 in
Product Weight:
1.4 lbs
Product Width:
3 in
Protrusion Gaging Diameter:
0.027 - 0.045 Above
Screw Point Type:
Gimlet Point
Sub Division:
Electrical-E H2
Thread Per Inch:
11
Thread Standard:
ASME B18.6.4
Torsional Strength:
83 lb-in minimum
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Type A Tapping Screw
Type2:
Type A Tapping Screw
Series:
JTSF
Product Finish:
Zinc
Product Details:
Type A Tapping Screw
Product Material:
Steel Zinc

Metallics JTSF37 – Frequently Asked Questions

1) What size and type of screw is the Metallics JTSF37?
It's a #12 diameter by 2 inch long Type A tapping screw with a flat head and Phillips drive, in zinc plated steel. Thread count is 11 threads per inch and it has a gimlet point, so it starts itself in sheet metal without a pilot hole in thin gauges.
2) What size Phillips bit do I need for these #12 flat head tapping screws?
A #3 Phillips bit. The recess is 0.262 in. diameter, 0.144 in. deep and 0.035 in. wide, so a #2 bit will cam out and chew the recess under load.
3) Can I use these on a Buy American or ARRA funded job?
No. The JTSF37 is listed as not Buy American compliant and not ARRA compliant, with multiple countries of origin. For federally funded work with domestic sourcing requirements you'll need a US-made fastener.
4) Do these Metallics tapping screws meet ASME B18.6.4?
Yes. The JTSF37 is built to ASME B18.6.4 for threads and ASME B18.6.4-1998 dimensionally, with steel to AISI 1016-1024. Note the Metallics line calls out that #9 diameter dimensions are independent of B18.6.4, but #12 like this one is covered.
5) Are these zinc screws suitable for outdoor or wet locations?
The finish is zinc plating over steel, which is a general indoor/dry-location coating. For exterior strut, rooftop equipment or damp areas, step up to stainless or a hot dip galvanized fastener. The JTSF37's stated field use is electrical, plumbing, heating and air conditioning work.
6) How many Metallics JTSF37 screws come in a jar and what is the minimum order?
They're packed in a jar of 100, and the jar is the minimum order unit, so you buy in multiples of 100. Packed weight is 1.4 lbs.
7) What's the difference between a Type A tapping screw and a self-drilling screw?
A Type A screw like the JTSF37 has a gimlet point, a coarse 11 TPI thread that forms its own thread in a pre-punched or pre-drilled hole in sheet metal, wood or soft materials. It does not drill its own hole through heavier steel. If you're fastening into thicker gauge metal with no pilot hole, use a self-drilling (Type TEK) screw instead.
8) What pilot hole should I drill for a #12 Type A tapping screw?
Size the pilot off the gaging diameter, which is 0.362 in. for this #12 screw; protrusion past the gage is 0.027 to 0.045 in. above. In practice you drill under that so the thread has material to form into, and in thin sheet the gimlet point will start without a pilot at all.
