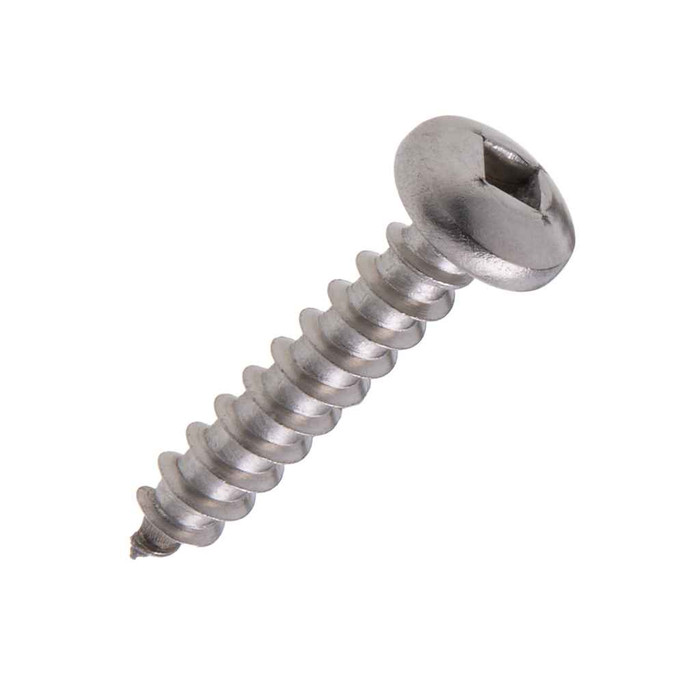

12 x 3 in. Pan Head Square Drive Tapping Screws - Steel Zinc - 500qty
Features
- Pan head with square Drive
- 12 Diameter, 3" Length
- Steel Zinc Material
Additional Notes
- Other sizes and quantities available by request | This type of recess has a square center opening, slightly tapered side walls and a conical bottom. | Dimensions for #9 diameter are independent of ASME B18.6.4
Manufacturer Resources
Product Specs
- Minimum Purchase:
- 500 units
- Arra Compliant:
- N
- Buy American Compliant:
- No
- Country Of Origin:
- MUL
- Dimensional Standard:
- ASME B18.6.3-2013
- Division:
- Electrical H1
- Drive Type:
- Square
- Driver Size:
- 3R
- Fastener Head Height:
- 0.139 - 0.151 in.
- Fastener Head Type:
- Pan
- Fastener Head Width:
- 0.407 - 0.425 in.
- Fastener Length:
- 3
- Finish:
- Zinc
- Hardness:
- Rockwell C28-38
- Language Code:
- EN
- Material:
- Steel Zinc
- Material Standard:
- AISI 1016 - 1024
- Order Minimum Imperial:
- 500
- Order Minimum Uom Imperial:
- EA
- Pack Type:
- Jar
- Product Family:
- Electrical Supplies
- Product Group:
- Fasteners
- Product Series:
- JTSS
- Recess Across Flats:
- 0.133
- Recess Penetration Gaging Depth:
- 0.080 - 0.095
- Screw Point Type:
- Gimlet Point
- Sub Division:
- Electrical-E H2
- Thread Per Inch:
- 11
- Thread Standard:
- ASME B18.6.4
- Torsional Strength:
- 83 lb-in minimum
- Type:
- Type A Tapping Screw
- Department:
- Electrical
- Product Subgroup:
- Screws
- Product Type:
- Type A Tapping Screw
- Type2:
- Type A Tapping Screw
