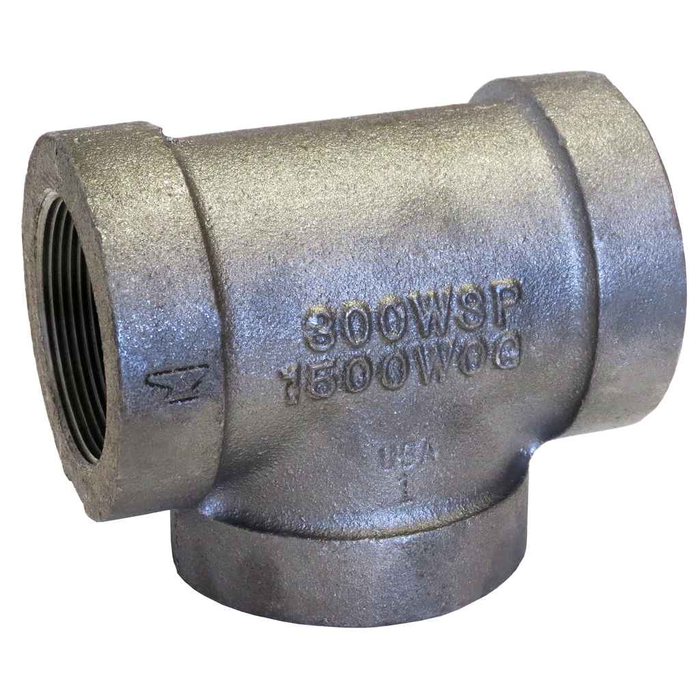

1/2 XH GALV MI AAR TEE
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- FPT
- End Conn Size 3:
- FPT
- Finish Specification:
- ASTM A-153
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 0.5
- Size 2:
- 0.5
- Size 3:
- 0.5
- Strength:
- XH
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Finish:
- Galvanized
- Product Material:
- Malleable Iron
- Product Weight:
- 0.69 lbs
ASC Engineered Solutions 311516009 – Frequently Asked Questions
1) Will the ASC Engineered Solutions 1/2 inch galvanized malleable iron tee thread onto standard 1/2 inch threaded steel pipe?
Yes. All three openings on this tee are 1/2 inch female pipe thread cut to ASME B1.20.1, which is standard NPT. It mates with any 1/2 inch NPT male thread, so ordinary threaded black or galvanized steel pipe and nipples screw straight in with pipe dope or PTFE tape.
2) Is this tee UL Listed and FM Approved for fire sprinkler work?
Yes, it carries UL/FM recognition, which is why it shows up on fire protection submittals. The AAR extra heavy galvanized malleable iron tee is the fitting spec commonly called for on threaded sprinkler branch lines. Confirm the approval covers your system pressure class with the AHJ as usual.
3) What does XH mean on a malleable iron tee, and should I use it instead of a standard 150 fitting?
XH is extra heavy, meaning a thicker wall and a higher pressure rating than a standard 150 class malleable fitting of the same size. The rating is per ASME B16.3, the same standard that sets the fitting's dimensions. Use XH where the line pressure or mechanical abuse on a threaded joint is above what a 150 class fitting covers; for ordinary low pressure water or air a standard 150 galvanized tee is the usual choice.
4) Is a galvanized malleable iron tee OK for an outdoor or wet sprinkler line?
The galvanizing is a hot dip coating to ASTM A-153, which is the standard for hardware dipped after fabrication and is what gives it corrosion resistance in damp, exterior and unheated spaces. The body itself is malleable iron to ASTM A-197. For buried service or aggressive chemical exposure, galvanized threaded iron is not the right material.
