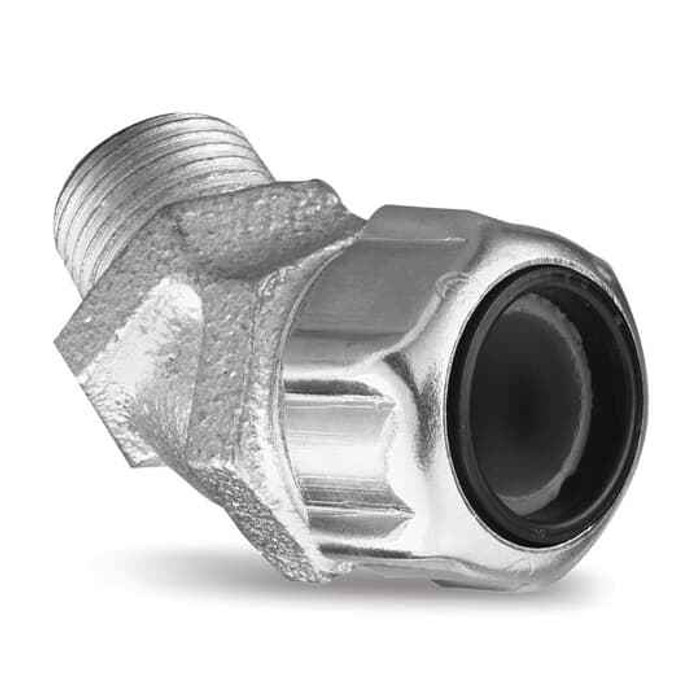

1/2IN 45D LT CORD CONN .375-.500
Manufacturer Resources
Product Specs
- Number Of Batteries:
- 0
- Product Group:
- Wiring Devices
- Product Type:
- 45 Degree Cord Connector
- Department:
- Electrical
- Product Subgroup:
- Cord Grips
- Product Color:
- Metallic
- Product Material:
- Malleable Iron
- Pack size (unit):
- 100
Thomas & Betts 2202 – Frequently Asked Questions
1) What cord diameter range does the Thomas & Betts 2202 cord connector clamp?
The 2202 is sized for cords measuring .375 to .500 inch in outside diameter. If your cable jacket falls outside that window, the grip either won't close down tight enough for a liquidtight seal or won't accept the cord at all, so measure the jacket OD before ordering.
2) What size conduit hub or box opening does the T&B 2202 cord connector need?
It's a 1/2 inch trade size connector, so it lands in a 1/2 inch threaded hub or a 1/2 inch knockout with a locknut. On a sheet metal box or fixture housing, a 1/2 inch knockout is 7/8 inch in diameter.
3) Is the T&B 2202 liquidtight, and can I use it outdoors or in a washdown area?
The 2202 is a liquidtight cord connector, meaning the gland seals around the cord jacket to keep water out of the enclosure. It's the type used on outdoor pendant fixtures, pump and motor leads, and washdown equipment. The seal only works inside the rated cord range of .375 to .500 inch, so an undersized cord in this body will leak.
4) Is the Thomas & Betts 2202 cord grip metal or plastic?
Malleable iron body with a metallic finish, not nylon or plastic. Malleable iron takes mechanical abuse on machine frames and industrial fixtures where a plastic cord grip would crack, and it keeps the connector in the equipment grounding path when it's threaded into a metal enclosure.
5) I'm replacing a cord grip on a machine and only know the part number is 2202. Is this the same part?
Yes. The manufacturer part number here is 2202 from Thomas & Betts, a 1/2 inch 45 degree liquidtight cord connector for .375 to .500 inch cord. Same number stamped on the part, so it drops straight back into the same 1/2 inch hub.
