EiKO JCD130V25WG8 130V 25W T4 ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$51.91
$1.91

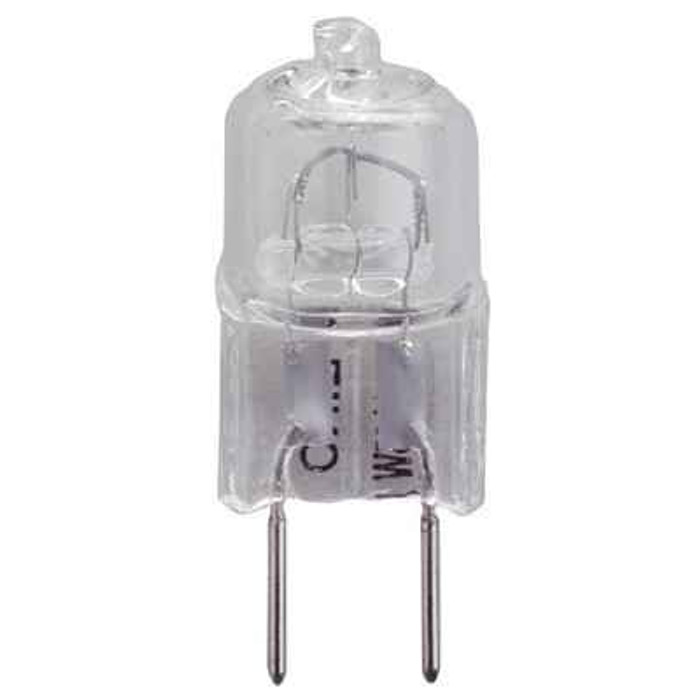

EiKO JCD130V25WG8 130V 25W T4 G8 Base

EiKO JCD130V25WG8 130V 25W T4 G8 Base

(No reviews yet) Write a Review

Model: JCD130V25WG8
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$51.91
$1.91
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
130V 25W T4 G8 Base

JCD130V25WG8 - spec sheet

Manufacturer Resources

Product Specs

Barcode:
2.00313E+13
Base Type:
G8
Bulb Type:
T4
Coating:
Clear
Ct Deg K:
2550
Filament:
CC-6V
Lcl In Mm:
1.10/28
Lumens:
170
Mod In Mm:
0.52/13.2
Mol In Mm:
1.46/37
Product Weight:
14.62
Rated Life:
1,500
Type Use:
General
Unit Of Sale:
1000
Voltage Rating:
130
Product Wattage:
25

EiKO JCD130V25WG8 – Frequently Asked Questions

1) Will an EiKO JCD130V25WG8 fit a G8 bi-pin socket in my under-cabinet or display fixture?
Yes. The JCD130V25WG8 is a T4 halogen capsule on a G8 bi-pin base, so it drops into any fixture prepped for a G8 socket. Overall length is 1.46 inches (37 mm) and maximum bulb diameter is 0.52 inches (13.2 mm), so check that your housing or lens has at least that much clearance before ordering.
2) Can I run this 130V 25W G8 bulb on standard 120V line voltage?
Yes. The JCD130V25WG8 is rated 130 volts, which is a line-voltage lamp intended for 120V circuits. Running a 130V lamp at 120V is common in commercial maintenance because the voltage headroom softens filament stress. It is not a low-voltage 12V lamp, so do not install it on a transformer-fed 12V track or puck system.
3) Is the G8 base the same as a GY6.35 or G9 halogen capsule?
No. G8 has flat blade-style bi-pins on roughly 8 mm spacing and is a line-voltage base; GY6.35 is the 12V low-voltage capsule base and G9 uses looped wire pins. They are not interchangeable in a socket. The JCD130V25WG8 is G8 only, at 130V, so confirm the socket marking before you order a case.
4) How much light does the EiKO JCD130V25WG8 put out and what color does it look?
170 lumens at 25 watts, with a color temperature of 2550K. That is a warm, slightly amber light typical of halogen capsules, and it matches the look of other incandescent lamps in the same room. The clear coating gives a point source with sharp shadows, which is what display cases and under-cabinet accent lighting are usually after.
5) How long does a JCD130V25WG8 halogen capsule last before it needs replacing?
Rated life is 1,500 hours. For an MRO or facilities buyer that means a display case running 12 hours a day gets roughly four months per lamp, so these are usually bought in quantity and relamped on a schedule rather than one at a time.
6) Is this G8 halogen capsule sold individually or in a case?
The unit of sale on the JCD130V25WG8 is 1000, so it is set up as a bulk case quantity rather than a single lamp. That is the normal buying pattern for property managers and hospitality maintenance groups standardizing one capsule across a building.
7) What is the light center length on the EiKO JCD130V25WG8?
Light center length is 1.10 inches (28 mm), measured from the base seat to the center of the filament. That matters in optical fixtures and display reflectors where the filament has to sit at the focal point. The filament itself is a CC-6V coil.
8) Can I dim the JCD130V25WG8?
It is a general-use halogen filament lamp at 130V, and filament lamps dim on standard line-voltage incandescent dimmers with no driver or special control needed. Nothing in the lamp restricts that, so it works with the forward-phase dimmers already in most display and under-cabinet circuits.
