EiKO 3S6/5-130V 130V 3W S-6 Ca...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$51.79
$1.79

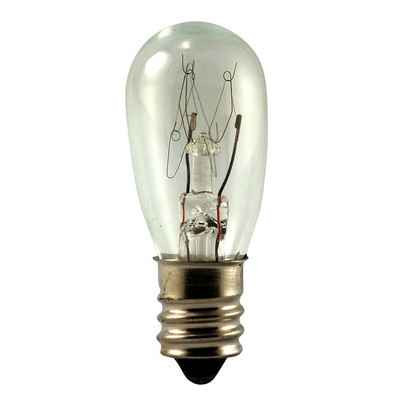

EiKO 3S6/5-130V 130V 3W S-6 Candelabra Base

EiKO 3S6/5-130V 130V 3W S-6 Candelabra Base

(No reviews yet) Write a Review

Model: 3S6/5-130V
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$51.79
$1.79
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
130V 3W S-6 Candelabra Base

3S6/5-130V - spec sheet

Manufacturer Resources

Product Specs

Amps:
0.023
Barcode:
2.00313E+13
Base Type:
Candelabra Screw (E12)
Bulb Type:
S6
Coating:
Clear
Filament:
C-7A
Lumens:
11.31
Mod In Mm:
0.75/19.1
Mol In Mm:
1.88/47.8
Product Weight:
15.345
Rated Life:
1,500
Unit Of Sale:
1000
Voltage Rating:
130
Product Wattage:
3

EiKO 3S6/5-130V – Frequently Asked Questions

1) What size is the EiKO 3S6 lamp, and will it fit inside a small indicator or sign housing?
It's a compact S6 shape: maximum overall diameter 0.75 in (19.1 mm) and maximum overall length 1.88 in (47.8 mm). That's small enough for tight pilot-light and annunciator housings, but measure your lens cavity depth from the socket shoulder before ordering, since the 1.88 in figure includes the base.
2) How much light does a 3W S6 candelabra bulb actually put out?
About 11.31 lumens at 3 watts. That is indicator-level output, not room lighting. It is meant to be seen as a lit point behind a colored lens or a sign panel, so if you're trying to illuminate anything you need a different lamp.
3) What current does the EiKO 3S6/5-130V draw, and how many can I put on one control circuit?
Each lamp draws 0.023 amps at its rated 130 volts. That is 23 milliamps per lamp, so a bank of them adds up slowly, roughly 43 lamps per amp. Use that figure when sizing a control transformer or checking a relay contact rating on a panel full of pilot lights.
4) Is the EiKO 3S6/5-130V sold individually or by the case?
The unit of sale is 1,000, so it is a bulk case quantity rather than a single lamp. That suits MRO and facilities buyers restocking indicator lamps across a building or a panel shop. The ordering model number is 3S6/5-130V.
5) Is the EiKO 3S6/5-130V clear or frosted?
Clear glass. The filament is visible, which is what you want behind a colored lens cap or a legend plate where you need the light to read sharply. If you need diffuse, even glow without a hot spot, look for a frosted or white-coated S6 instead.
