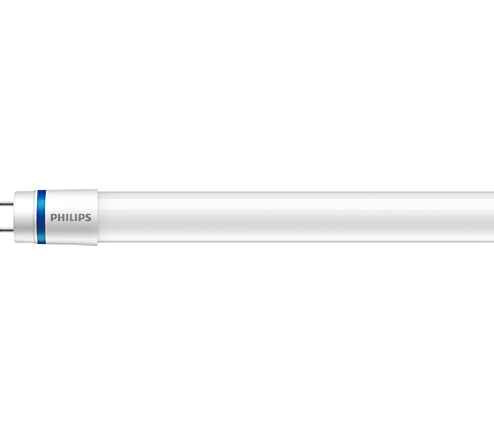

Philips Lighting T8 LED Tube 13W 3500K InstantFit Dimmable Replacement System

Philips Lighting T8 LED Tube 13W 3500K InstantFit Dimmable Replacement System

Professional LED upgrade solution with instant ballast compatibility

Philips Lighting delivers professional-grade T8 LED tube replacement technology with InstantFit compatibility across over 350 ballasts and drivers. This 13W dimmable LED tube provides 2000 lm output at 3500K color temperature with 82 CRI, offering reliable performance for commercial and industrial lighting upgrades. The shatter-resistant polycarbonate construction and G13 medium bi-pin base ensure seamless integration with existing T8 fluorescent fixtures.

Professional Features & Benefits

• 13W Power Rating: Delivers energy-efficient operation with 153 lm/W luminous efficacy for reduced operating costs
• 3500K Color Temperature: Provides neutral white light with 82 CRI for accurate color rendering in professional environments
• InstantFit Technology: Works with over 350 existing ballasts and drivers for plug-and-play installation without rewiring
• 70,000 Hour Lifetime: Offers extended service life with 70% lumen maintenance for reduced maintenance requirements
• Dimmable Operation: Supports dimming functionality with compatible controls for flexible lighting management
• DLC Standard Certification: Meets energy efficiency standards for utility rebate eligibility and professional applications
• Shatter-Resistant Construction: Features polycarbonate tube design for enhanced safety in commercial and industrial environments

Technical Specifications

• Base: G13 [ Medium Bi-Pin Fluorescent]
• Beam Angle Nom : 180 �
• Color Code: 835 [ CCT of 3500K]
• Color Consistency: <6
• Color Designation: White (WH)
• Color Rendering Index Nom : 82
• Correlated Color Temperature Nom : 3500 K
• Dimmable: Yes
• Energy Certifications: DLC Standard
• Energy Saving Product: Yes
• Eu Rohs Compliant: Yes
• Initial Lumen Nom : 2000 lm
• Input Frequency: 20000-120000 Hz
• Lamp Current Max : 400 mA
• Lamp Current Min : 130 mA
• Llmf At End Of Nominal Lifetime Nom : 70%
• Luminous Efficacy Rated Nom : 153.00 lm/W
• Nominal Lifetime Nom : 70000 h
• Power Factor Nom : 0.9
• Power Rated Nom : 13 W
• Starting Time Nom : 0.5 s
• Switching Cycle: 50000X
• T Ambient Max : 45 �C
• T Ambient Min : -20 �C
• T Case Maximum Nom : 50 �C
• T Storage Max : 65 �C
• T Storage Min : -40 �C
• Voltage Nom : 277 V
• Warm Up Time To 60 Light Nom : 0.5 s

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Parking lots and covered car parks for reliable outdoor lighting
• Industrial facilities and warehouses requiring high-efficiency illumination
• Office buildings and commercial spaces with existing T8 fixtures
• Shopping centers and retail establishments for consistent lighting quality
• Educational facilities and healthcare environments
• Multi-tenant buildings and property management applications

Why Choose Philips Lighting Quality?

Philips Lighting provides professional-grade LED technology with NSF certification and DLC 5.0 compliance for utility rebate eligibility. The 70,000-hour lifetime rating with 7-year limited warranty ensures long-term reliability, while RoHS compliance and energy-saving design support sustainable facility management practices.
