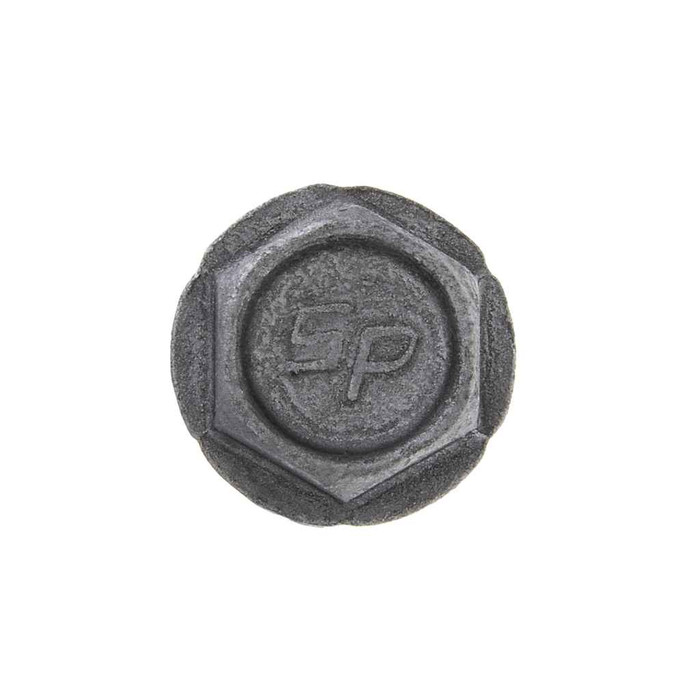

Metallics TXV14112 14-10 x 1-1...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$51.31
$1.96
Metallics TXV14112 14-10 x 1-1/2 in. 5/16 Hex Head Heavy Duty Drill Screws - Type 17 - All-Weather - 100qty

Metallics TXV14112 14-10 x 1-1/2 in. 5/16 Hex Head Heavy Duty Drill Screws - Type 17 - All-Weather - Each

(No reviews yet) Write a Review

Model: TXV14112
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$51.31
$1.96
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
14-10 x 1-1/2 in. 5/16 Hex Head Heavy Duty Drill Screws - Type 17 - All-Weather - 100qty

  • Additional Notes

    • Heavy Duty Steel-To-Steel Application|other sizes and quantities available by request

  • Features

    • 5/16 Hex Head with Hex Drive
    • All-Weather Coating
    • Type 17
    • Made in the USA
    • 14-10 Diameter, 1-1/2" Length

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-2010
Division:
Electrical H1
Drive Type:
Hex
Fastener Head Height:
0.172 - 0.19 in.
Fastener Head Type:
Hex
Fastener Head Width:
0.367 - 0.375 in.
Fastener Length:
1/1/02
Hardness:
Rockwell C32-40
Language Code:
EN
Material Standard:
AISI 1016 - 1024
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Product Group:
Fasteners
Screw Point Type:
Type 17
Slot Depth:
0.083 - 0.101
Slot Width:
0.064 - 0.075
Sub Division:
Electrical-E H2
Thread Per Inch:
10
Thread Standard:
SAE J78 - 2013
Washer Od:
0.480 - 0.520 in.
Washer Thickness:
0.030 - 0.050 IN
Width Across Corners:
0.409
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Type BSD Heavy Duty Drill Screw
Type2:
Type BSD Heavy Duty Drill Screw
Series:
TXV
Product Finish:
Zinc/All-Weather Coating
Product Details:
Type BSD Heavy Duty Drill Screw
Product Material:
All-Weather

Metallics TXV14112 – Frequently Asked Questions

1) Will a Type 17 point self-drill through steel, or do I need to pre-drill?
The TXV14112 carries a Type 17 point, which cuts its own way into the material rather than needing a pilot hole in typical use. Metallics rates these for heavy duty steel-to-steel work. The screw is case hardened to Rockwell C32-40 and made from AISI 1016-1024 carbon steel, which is what lets the point bite steel. For very thick or hardened stock, a pilot hole is still the safer call.
2) Can I use these screws outdoors or in a damp location?
Yes. The TXV14112 has a zinc plus all-weather coating, which is what the "all-weather" in the name refers to. That makes it suitable for exterior and exposed work such as metal building, strut, and outdoor equipment mounting. It is a coated carbon steel screw, not stainless, so for continuous saltwater or chemical exposure you would want a stainless fastener instead.
3) Do these fasteners meet Buy American or ARRA requirements for a government job?
No. The TXV14112 is not Buy American compliant and is not ARRA compliant, with country of origin listed as multiple. If your contract carries a domestic-sourcing clause, this part will not satisfy it and you need a fastener certified to that requirement.
4) Is the TXV14112 the right screw for fastening steel to steel, or is it a wood screw?
It is a Type BSD heavy duty drill screw intended for steel-to-steel fastening, not a wood fastener. The combination of the 10 TPI coarse thread, the Type 17 point, and a core hardened to Rockwell C32-40 is set up for drilling and tapping steel sections in one pass.
5) What thread pitch is the 14-10 screw, and what does that number mean?
14-10 means a #14 diameter with 10 threads per inch, and the screw is 1-1/2 inches long. The coarse 10 TPI thread is what you want for pulling into sheet and structural steel. Threads conform to SAE J78-2013 and the overall dimensions to ASME B18.6.3-2010.
6) Does the Metallics TXV14112 come with a sealing washer under the head?
These are built with a washer head. The washer outside diameter runs 0.480 to 0.520 inch and the washer section is 0.030 to 0.050 inch thick, giving a wider bearing surface than a plain hex head so it does not pull through thinner gauge steel.
7) How are these Metallics drill screws packaged and what is the smallest quantity I can order?
They ship in a jar of 100, and 100 count is the order minimum. Metallics notes that other sizes and quantities are available by request if you need a different length or diameter in the TXV series.
