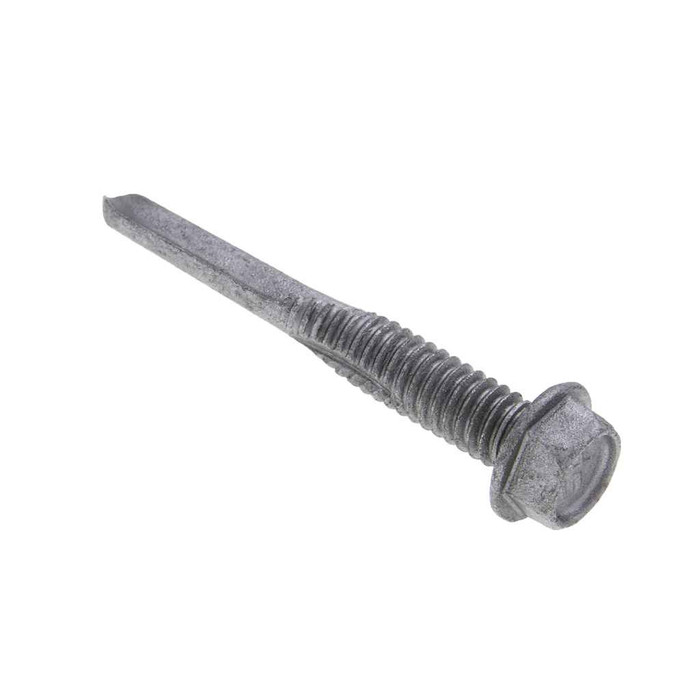

Metallics TXV12114VLB 12-24 x 1-1/4 in. 5/16 Hex Head Heavy Duty Drill Screws - #5 Drill Point - All-Weather - 450qty

Metallics TXV12114VLB 12-24 x 1-1/4 in. 5/16 Hex Head Heavy Duty Drill Screws - #5 Drill Point - All-Weather - Each

(No reviews yet) Write a Review

Model: TXV12114VLB
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$867.86
Adding to cart… The item has been added
Free Shipping on orders over $199.99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
12-24 x 1-1/4 in. 5/16 Hex Head Heavy Duty Drill Screws - #5 Drill Point - All-Weather - 450qty

  • Additional Notes

    • Heavy Duty Steel-To-Steel Application|other sizes and quantities available by request

  • Features

    • Made in the USA
    • 5/16 Hex Head with Hex Drive
    • 12-24 Diameter, 1-1/4" Length
    • All-Weather Coating
    • #5 Drill Point

Manufacturer Resources

Product Specs

Minimum Purchase:
450 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-2010
Division:
Electrical H1
Drill Point Size:
#5
Drive Type:
Hex
Fastener Head Height:
0.139 - 0.155 in.
Fastener Head Type:
Hex
Fastener Head Width:
0.305 - 0.312 in.
Fastener Length:
1/1/04
Hardness:
Rockwell C32-40
Language Code:
EN
Material Standard:
AISI 1016 - 1024
Order Minimum Imperial:
1
Order Minimum Uom Imperial:
EA
Pack Type:
Jar
Panel Thickness:
0.110 - 0.210 IN
Product Group:
Fasteners
Screw Point Type:
Drill Point
Slot Depth:
0.077 - 0.093
Slot Width:
0.056 - 0.067
Sub Division:
Electrical-E H2
Thread Per Inch:
24
Thread Standard:
SAE J78 - 2013
Torsional Strength:
92 lb-in minimum
Washer Od:
0.398 - 0.432 in.
Washer Thickness:
0.022 - 0.039 IN
Width Across Corners:
0.34
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Type BSD Heavy Duty Drill Screw
Type2:
Type BSD Heavy Duty Drill Screw
Series:
TXV
Product Finish:
Zinc/All-Weather Coating
Product Details:
Type BSD Heavy Duty Drill Screw
Product Material:
All-Weather

Metallics TXV12114VLB – Frequently Asked Questions

1) Are these drill screws strong enough for steel-to-steel framing and strut work?
Yes. The TXV12114VLB is a Type BSD heavy duty drill screw built for steel-to-steel application, with a minimum torsional strength of 92 lb-in and a case hardness of Rockwell C32-40. That is what keeps the point from snapping off partway through heavier gauge steel.
2) Are these screws Buy American or ARRA compliant for a government or public works job?
No. The TXV12114VLB is not Buy American compliant and not ARRA compliant, with country of origin listed as multiple. If your contract carries domestic sourcing requirements, this part will not clear them.
3) Can these Metallics TXV drill screws be used outdoors or in damp locations?
They carry a zinc all-weather coating, which is what Metallics specifies for exterior and damp exposure. For heavy corrosion duty such as coastal or chemical environments, a stainless fastener is the safer call.
4) What thread pitch and standard do Metallics 12-24 drill screws follow?
24 threads per inch on a #12 diameter, made to SAE J78-2013 for the thread and ASME B18.6.3-2010 for dimensions. That means it matches any 12-24 machine thread prep, and the head geometry is standard so it works with off the shelf 5/16 drivers and accessories.
5) Can I buy Metallics TXV12114VLB drill screws individually instead of a full jar?
Order minimum is 1 each, so you are not forced into a case. The screws are packaged in a jar, which is the typical bench or van quantity for this size.
6) What steel is the Metallics TXV heavy duty drill screw made from?
Carbon steel to AISI 1016-1024, case hardened to Rockwell C32-40 and finished with zinc all-weather coating. Carbon steel means it should not be driven into aluminum or stainless assemblies where galvanic corrosion is a concern.
