Metallics TXV1278D 12-24 x 1-1...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$192.86

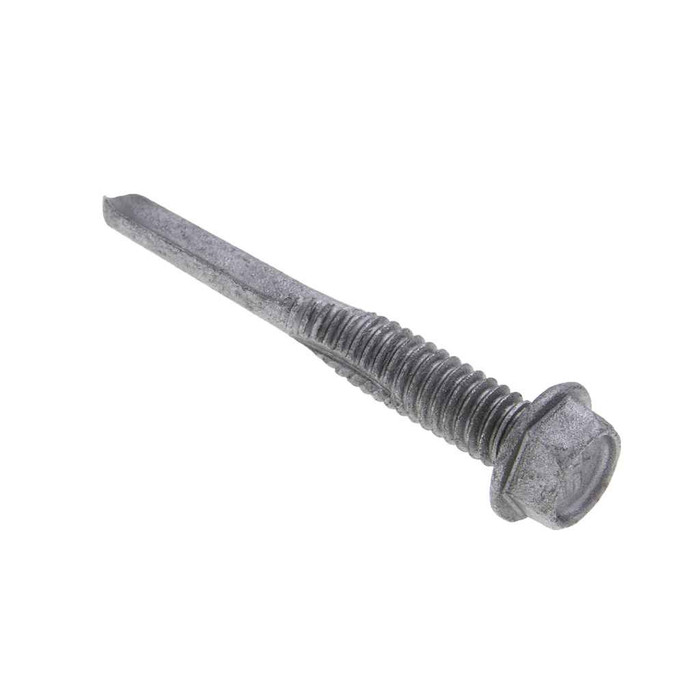

Metallics TXV1278D 12-24 x 1-1/4 in. 5/16 Hex Head Heavy Duty Drill Screws - #4 Drill Point - All-Weather - 100qty

Metallics TXV1278D 12-24 x 1-1/4 in. 5/16 Hex Head Heavy Duty Drill Screws - #4 Drill Point - All-Weather - Each

(No reviews yet) Write a Review

Model: TXV1278D
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$192.86
Adding to cart… The item has been added
Free Shipping on orders over $199.99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
12-24 x 1-1/4 in. 5/16 Hex Head Heavy Duty Drill Screws - #4 Drill Point - All-Weather - 100qty

  • Additional Notes

    • Heavy Duty Steel-To-Steel Application|other sizes and quantities available by request

  • Features

    • Made in the USA
    • All-Weather Coating
    • #4 Drill Point
    • 12-24 Diameter, 1-1/4" Length
    • 5/16 Hex Head with Hex Drive

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Country Of Origin:
United States
Dimensional Standard:
ASME B18.6.3-2010
Division:
Electrical H1
Drill Point Size:
#4
Drive Type:
Hex
Fastener Head Height:
0.139 - 0.155 in.
Fastener Head Type:
Hex
Fastener Head Width:
0.305 - 0.312 in.
Fastener Length:
1/1/04
Hardness:
Rockwell C32-40
Language Code:
EN
Material Standard:
AISI 1016 - 1024
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Panel Thickness:
0.110 - 0.210 IN
Product Group:
Fasteners
Screw Point Type:
Drill Point
Slot Depth:
0.077 - 0.093
Slot Width:
0.056 - 0.067
Sub Division:
Electrical-E H2
Thread Per Inch:
24
Thread Standard:
SAE J78 - 2013
Torsional Strength:
92 lb-in minimum
Washer Od:
0.398 - 0.432 in.
Washer Thickness:
0.022 - 0.039 IN
Width Across Corners:
0.34
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Type BSD Heavy Duty Drill Screw
Type2:
Type BSD Heavy Duty Drill Screw
Series:
TXV
Product Finish:
Zinc/All-Weather Coating
Product Details:
Type BSD Heavy Duty Drill Screw
Product Material:
All-Weather

Metallics TXV1278D – Frequently Asked Questions

1) Is 12-24 x 1-1/4 in. long enough for my steel-to-steel connection?
The 1-1/4 in. length gives you plenty of grip over the 0.110 to 0.210 in. panel range this screw drills, so after the drill flutes clear the back face there is still full thread engagement. Where it comes up short is standoff conditions, through insulation, a spacer, or stacked clip plates, since the drill point has to fully exit the steel before the threads can tap. Measure your total stack plus any gap and go longer if the point will not break through.
2) Can I use this Metallics drill screw into wood or masonry?
No. The TXV1278D is a Type BSD heavy duty drill screw built for steel-to-steel application. The 12-24 machine thread at 24 TPI taps metal, it will not hold in wood, and it will not drill concrete or block. Use a wood or sheet metal screw for timber and a concrete screw anchor or expansion anchor for masonry.
3) Is the TXV1278D drill screw OK for outdoor or damp locations?
It carries a zinc all-weather coating, which is what Metallics specifies for exposed steel-to-steel fastening rather than plain zinc plating. Good for exterior strut, hangers, and equipment mounting. For continuously wet, coastal, or chemically aggressive environments, stainless is the better call.
4) Does the Metallics TXV1278D have a built-in washer, or do I add one?
The washer is integral to the head, no separate washer needed. Washer OD runs 0.398 to 0.432 in. with a thickness of 0.022 to 0.039 in., which gives enough bearing surface for strut, clip angles, and sheet steel without tearing through. If you need a seal against water at the hole, add a bonded EPDM washer separately.
5) How many Metallics TXV1278D screws come in a pack?
They ship in a jar with a 100 count minimum order. The 12-24 x 1-1/4 in. size is the only configuration under this part number; Metallics notes other sizes and quantities are available by request.
